Removal Procedure

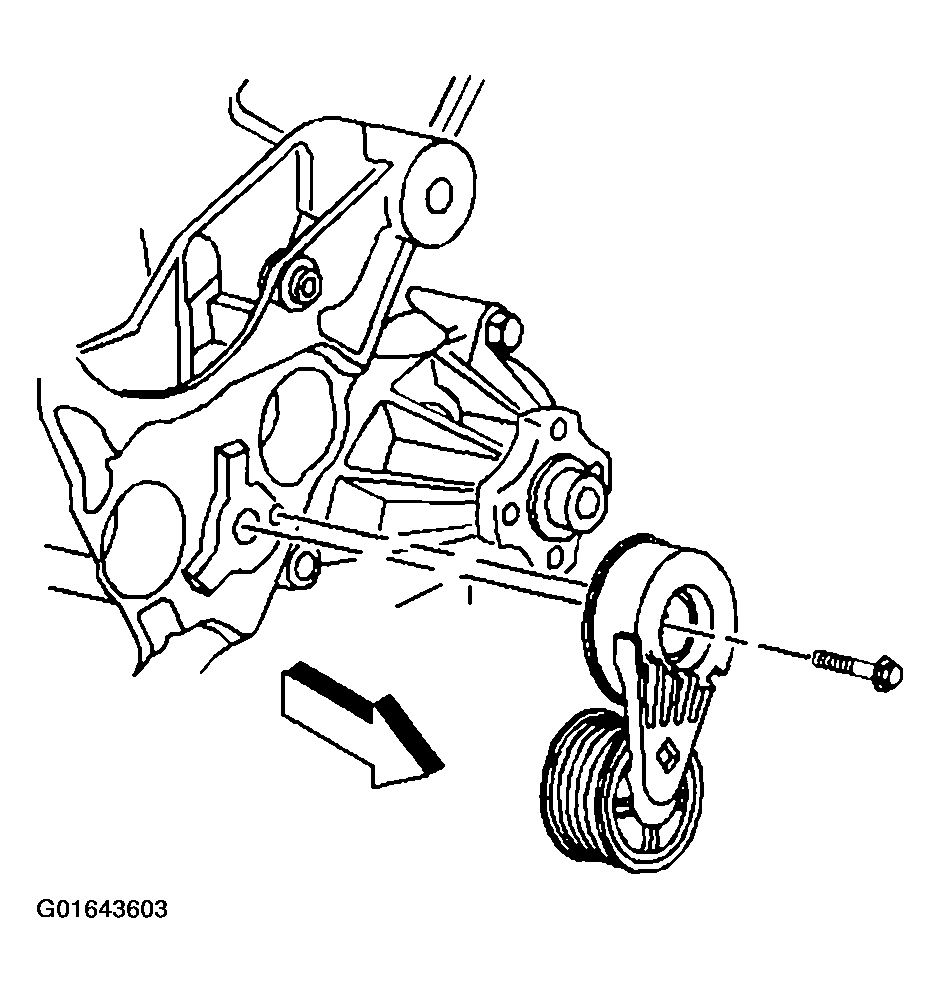

Fig 1: Removing Drive Belt Tensioner
G01643603Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT  .
  2. Remove the bolt.
  3. Remove the drive belt tensioner.
