Installation Procedure

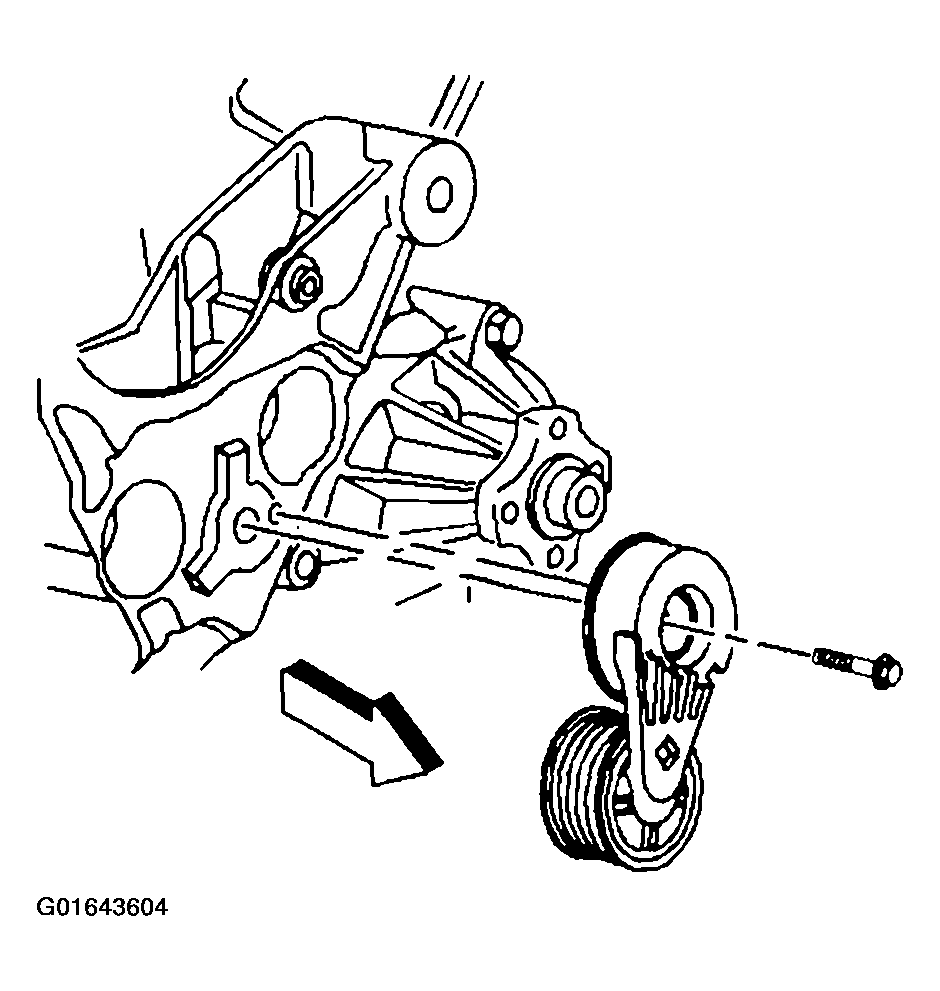

Fig 1: Installing Drive Belt Tensioner
G01643604Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt tensioner assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the attaching bolt.

    Tighten

    Tighten the tensioner assembly bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to DRIVE BELT REPLACEMENT  .
