Removal Procedure

  1. Remove the air cleaner assembly. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION in Engine Performance
  2. Remove the air cleaner outlet duct from the throttle body. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION in Engine Performance
  3. Install a 3/8 inch drive wrench on the drive belt tensioner arm and rotate the arm counterclockwise.
  4. Remove the drive belt.
  5. Slowly release the tension on the drive belt tensioner arm.

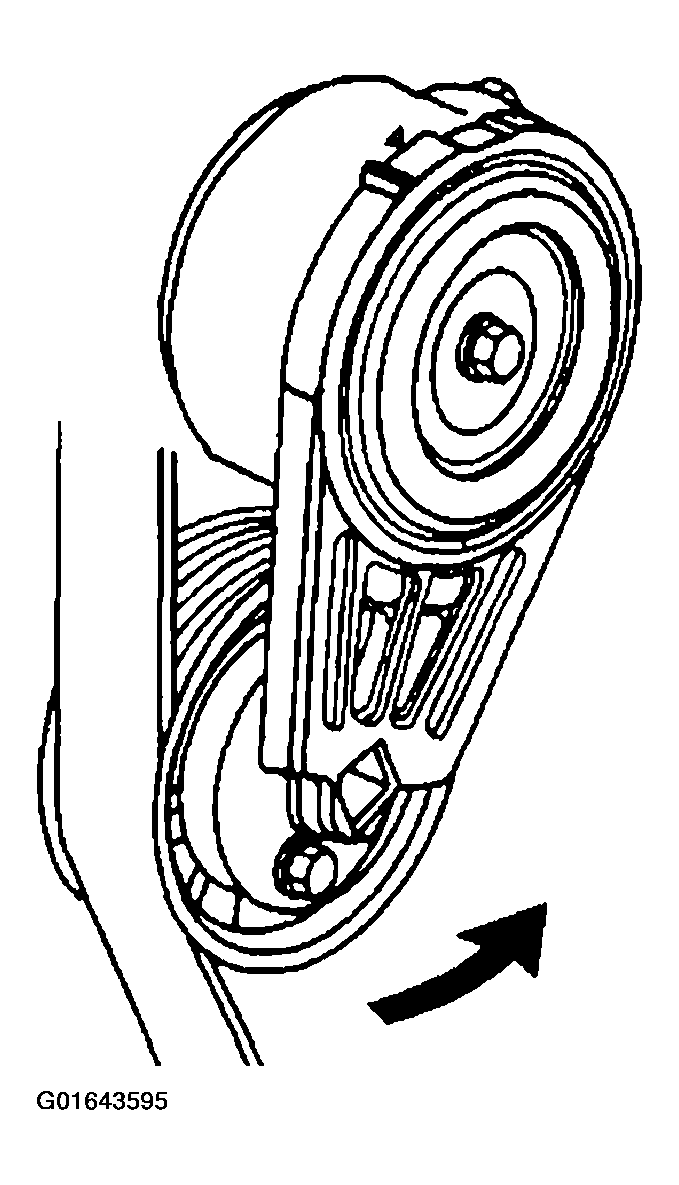

    Fig 1: Removing Drive Belt
    G01643595Courtesy of GENERAL MOTORS CORP.
