Removal Procedure

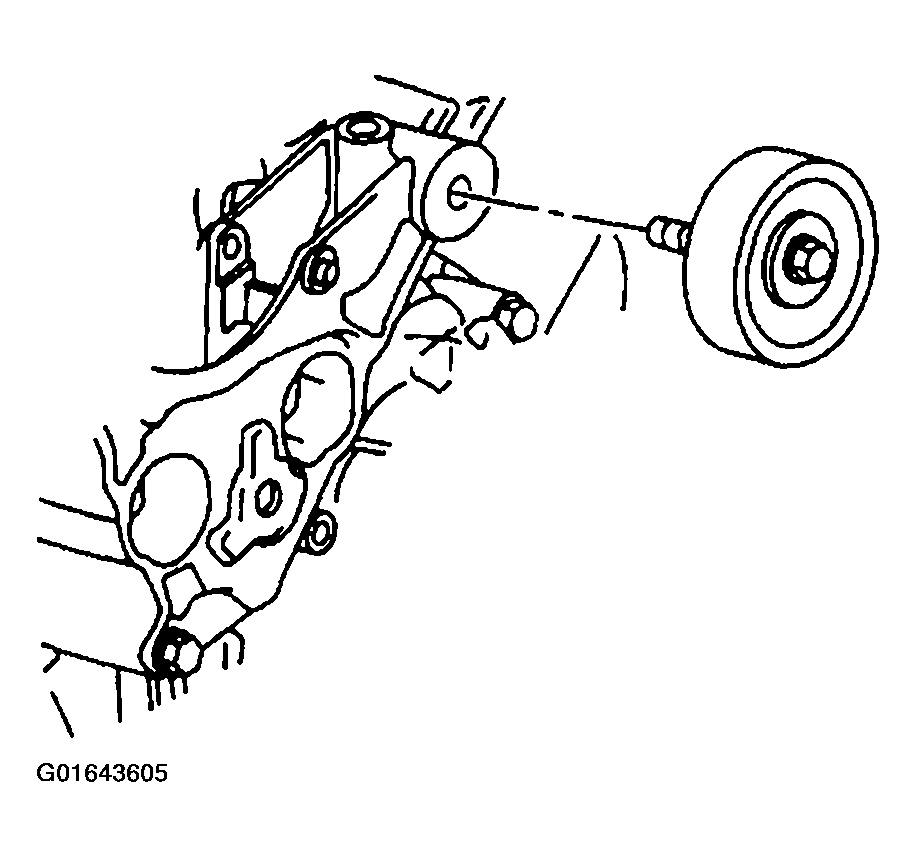

Fig 1: Removing Drive Belt Idler Pulley - Right
G01643605Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT  .
  2. Remove the drive belt idler pulley bolt.
  3. Remove the drive belt idler pulley from the generator mounting bracket.
