Installation Procedure

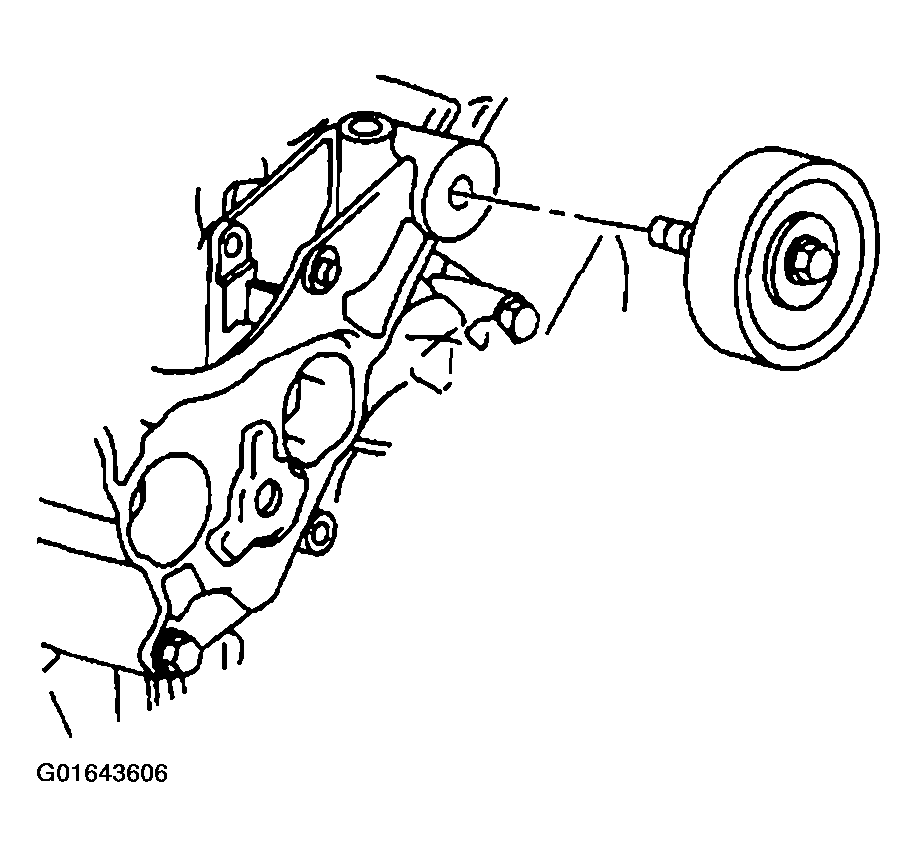

Fig 1: Installing Drive Belt Idler Pulley - Right
G01643606Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the drive belt idler pulley and bolt to the generator mounting bracket.

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  2. Install the drive belt. Refer to DRIVE BELT REPLACEMENT  .
