Installation Procedure
- Install the cylinder head. Refer to CYLINDER HEAD INSTALLATION - LEFT .
- Install the valve push rods. Refer to VALVE ROCKER ARM AND PUSH ROD REPLACEMENT
.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the ground wires and bolt at the rear of the left cylinder head.
Tighten
Tighten the ground wire bolt to 35 N.m (26 lb ft).

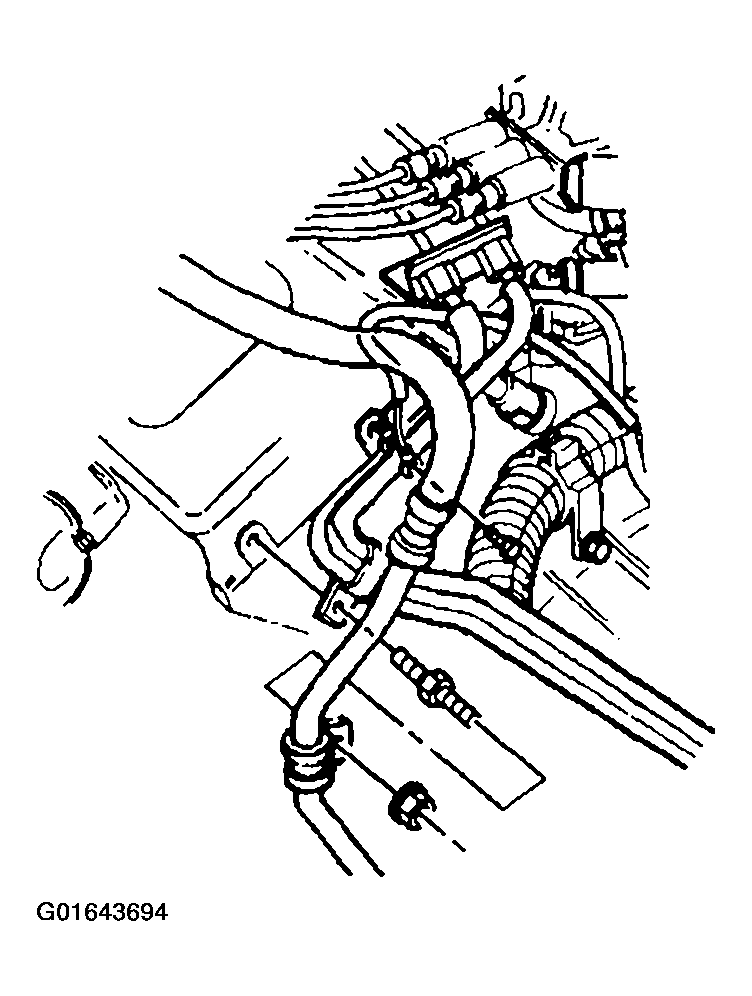

- Install the fuel pipe bracket and stud at the rear of the cylinder head.
Tighten
Tighten the fuel pipe bracket stud to 33 N.m (24 lb ft).
- Install the A/C pipe bracket and nut, if equipped.
Tighten
Tighten the A/C pipe bracket nut to 35 N.m (26 lb ft).
- Install the exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - LEFT in Engine Exhaust.
- Install the intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - LOWER .

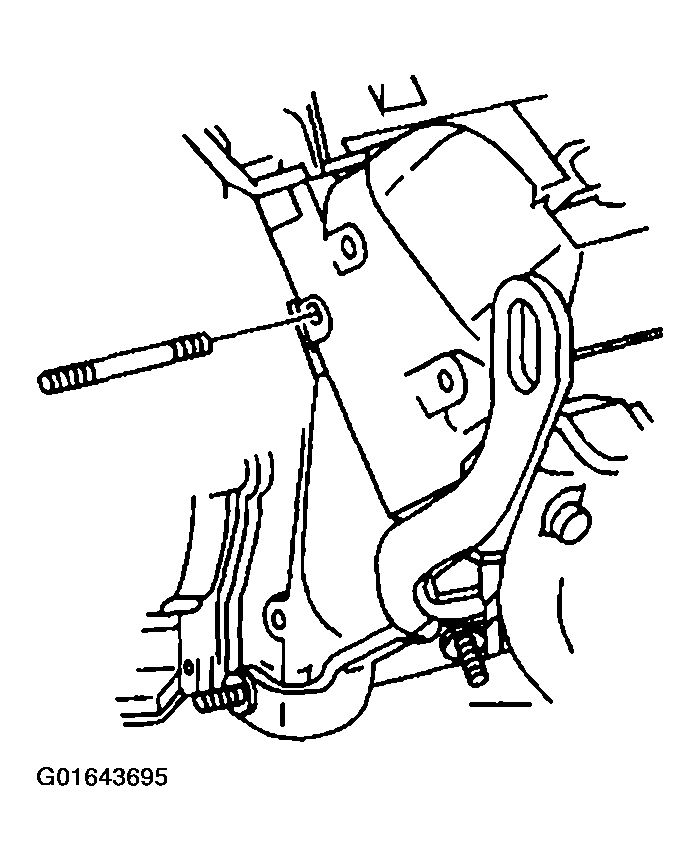

- Install the stud for the power steering pump mounting bracket to the cylinder head.
Courtesy of GENERAL MOTORS CORP.
Tighten
Tighten the power steering pump mounting bracket stud to 20 N.m (15 lb ft).
- Install the power steering pump mounting bracket.

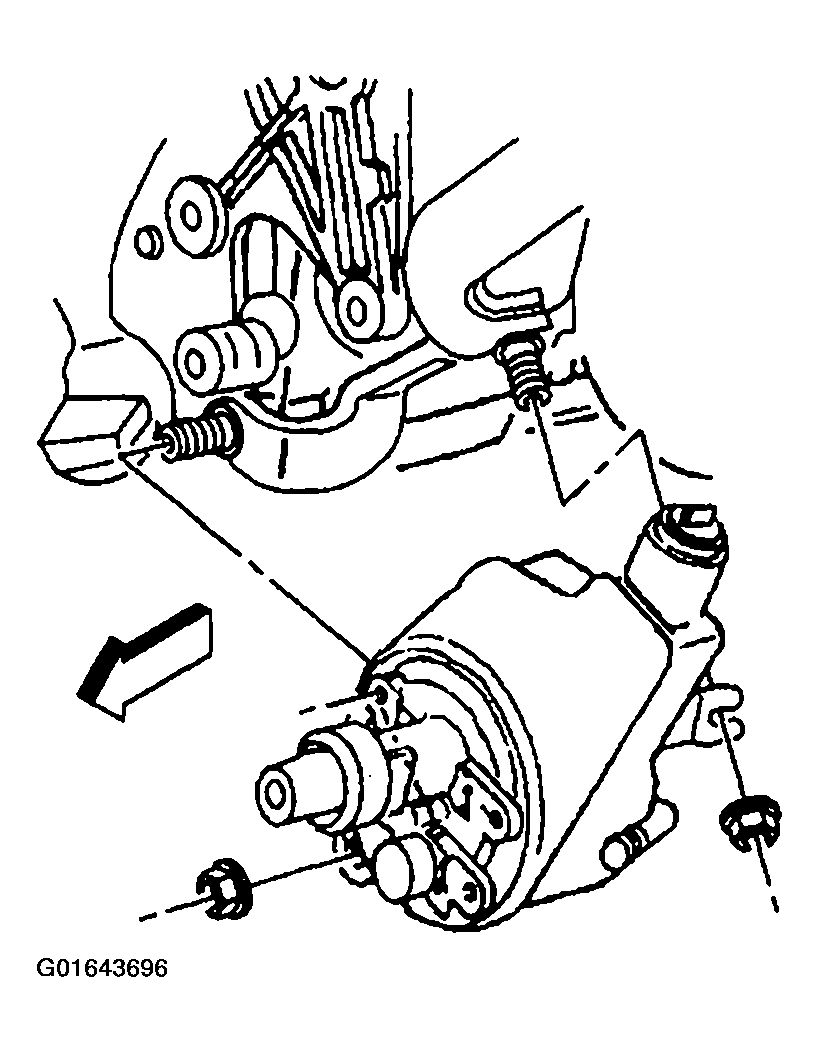

- Install the nut holding the power steering pump rear bracket to the engine.
Courtesy of GENERAL MOTORS CORP.
Tighten
Tighten the power steering pump rear bracket nut to 41 N.m (30 lb ft).
- Install the air conditioning compressor. Refer to COMPRESSOR REPLACEMENT in Heating, Ventilation and Air Conditioning.
- Install the engine cooling fan. Refer to FAN REPLACEMENT in Engine Cooling.
- Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
- Install the engine cover. Refer to ENGINE COVER REPLACEMENT in Interior Trim.
