Removal Procedure

  1. Remove the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT  .
  2. Remove the crankshaft position sensor reluctor ring.

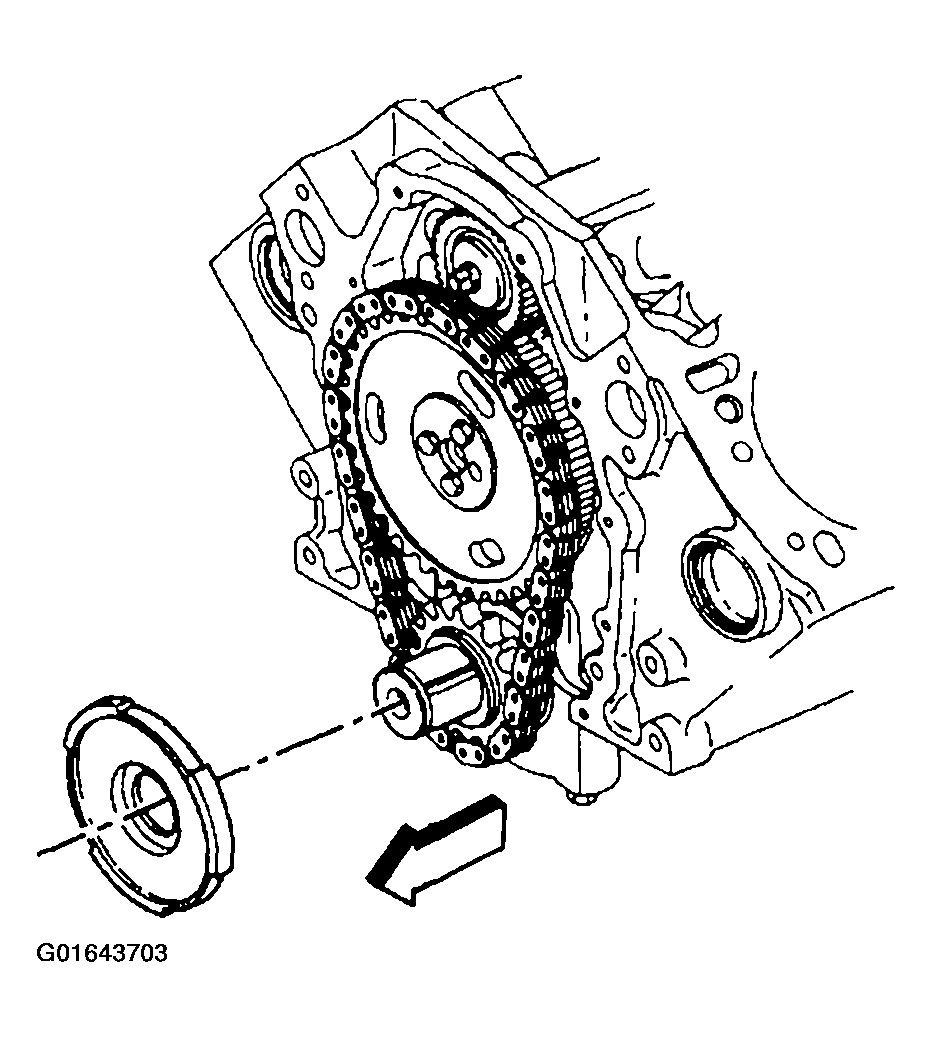

    Fig 1: Removing Crankshaft Position Sensor Reluctor Ring
    G01643703Courtesy of GENERAL MOTORS CORP.
