Installation Procedure

NOTE: Failure to properly align the crankshaft position sensor reluctor ring may result in component damage and effect OBD II system performance.

Important:  The reluctor ring is shaped like a dish. The dish must face towards the engine front cover.

  1. Install the crankshaft position sensor reluctor ring.

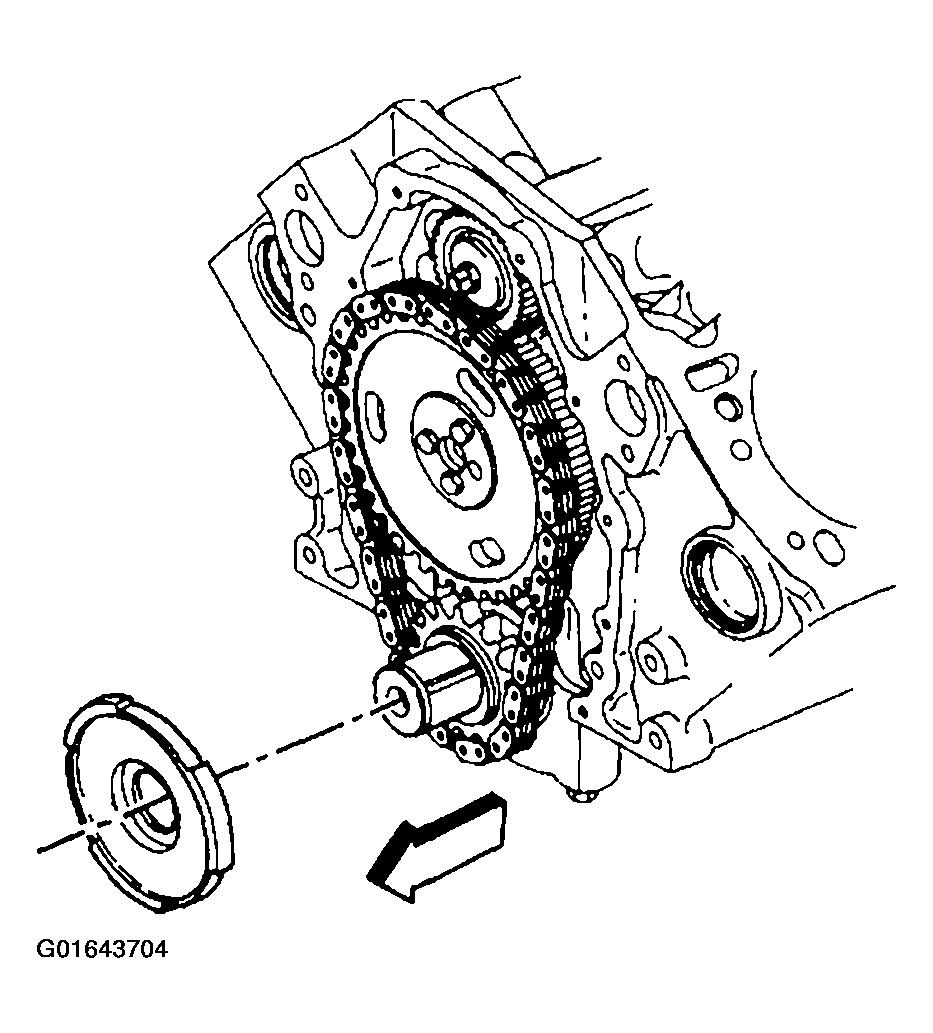

    Fig 1: Installing Crankshaft Position Sensor Reluctor Ring
    G01643704Courtesy of GENERAL MOTORS CORP.
  2. Install the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT  .
