Water Pump Removal

Tools Required

J 41240  Fan Clutch Remover and Installer

1. Remove the bolts and the fan and water pump pulley using the J 41240.

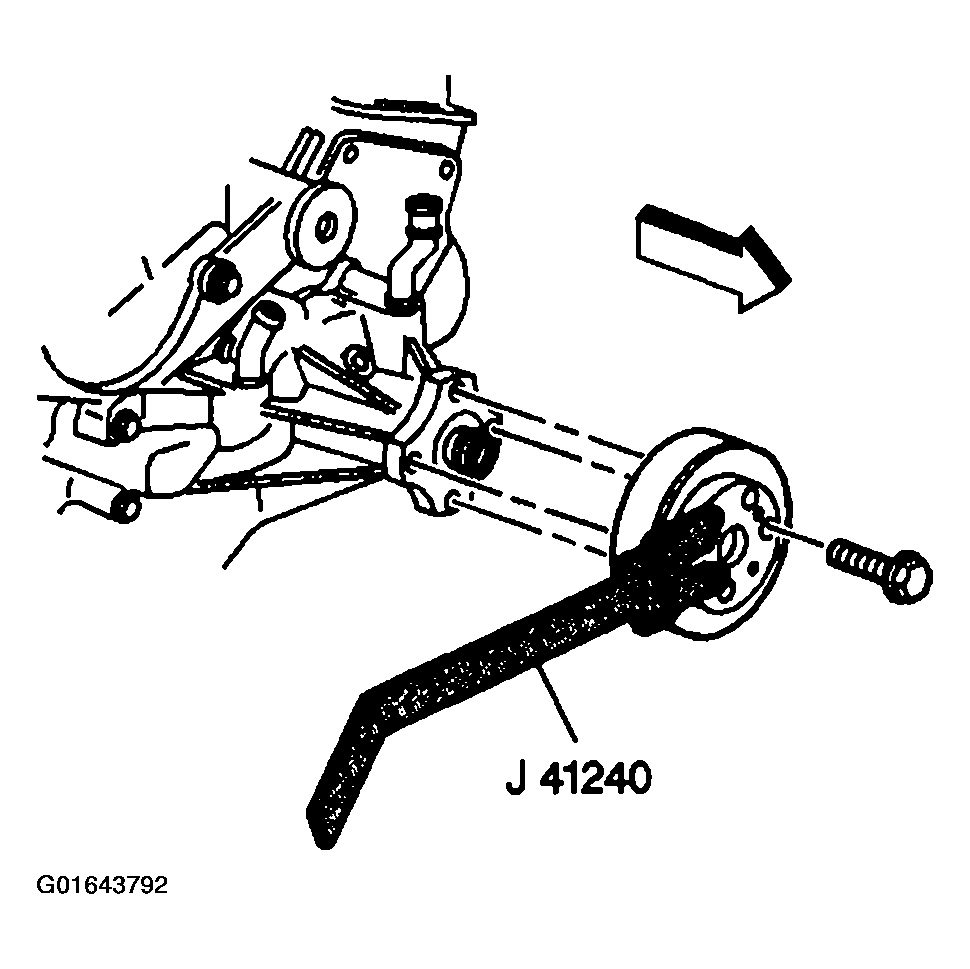

   Fig 1: Removing Bolts, Fan And Water Pump Pulley

   Courtesy of GENERAL MOTORS CORP.
2. Remove the clamps and the water pump inlet hose.

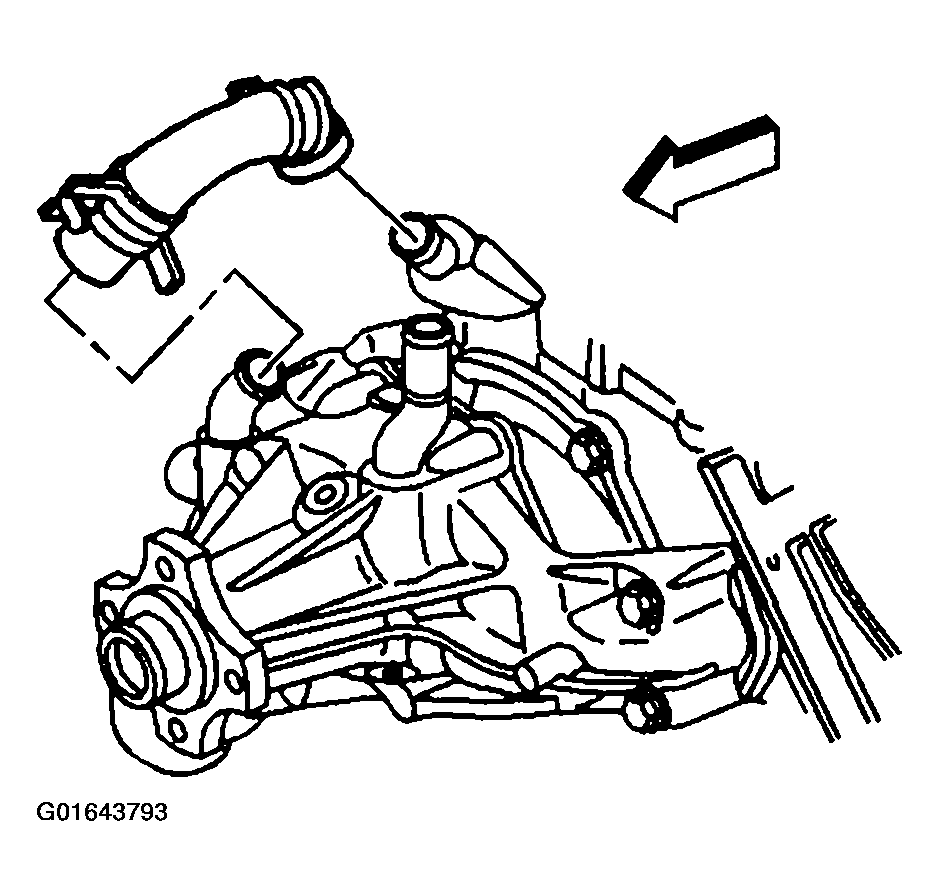

   Fig 2: Removing Clamps And Water Pump Inlet Hose

   Courtesy of GENERAL MOTORS CORP.
3. Remove the water pump bolts.
4. Remove the water pump.
5. Remove the water pump gaskets.

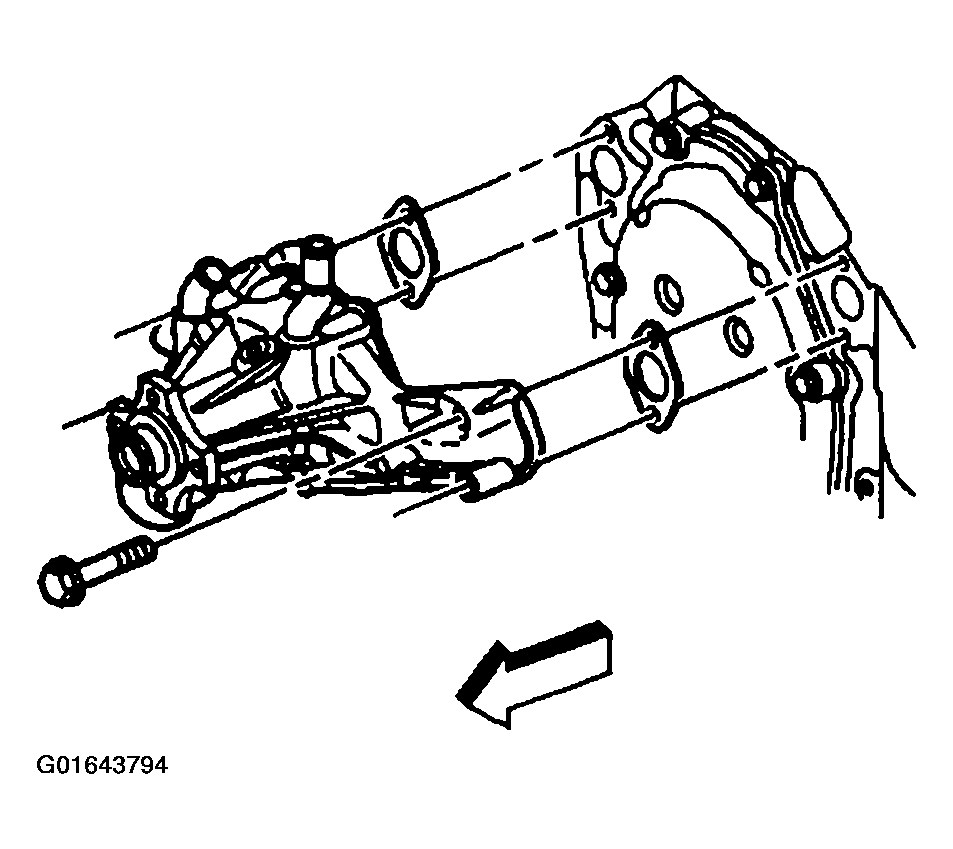

   Fig 3: Removing Water Pump Gaskets

   Courtesy of GENERAL MOTORS CORP.
6. Discard the water pump gaskets.
