Valve Rocker Arm and Push Rod Installation

Important:  Be sure to keep parts in order. Parts must be reinstalled into the original location and position.

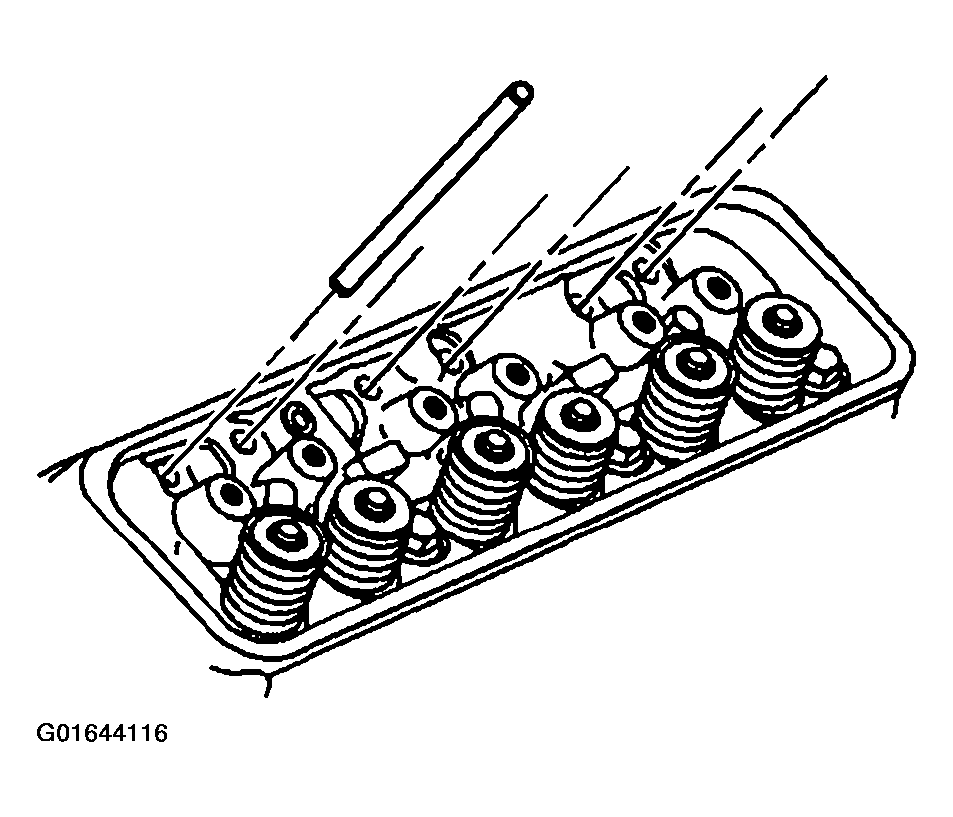

1. Install the valve pushrods.
   Fig 1: Installing Valve Pushrods

   Courtesy of GENERAL MOTORS CORP.

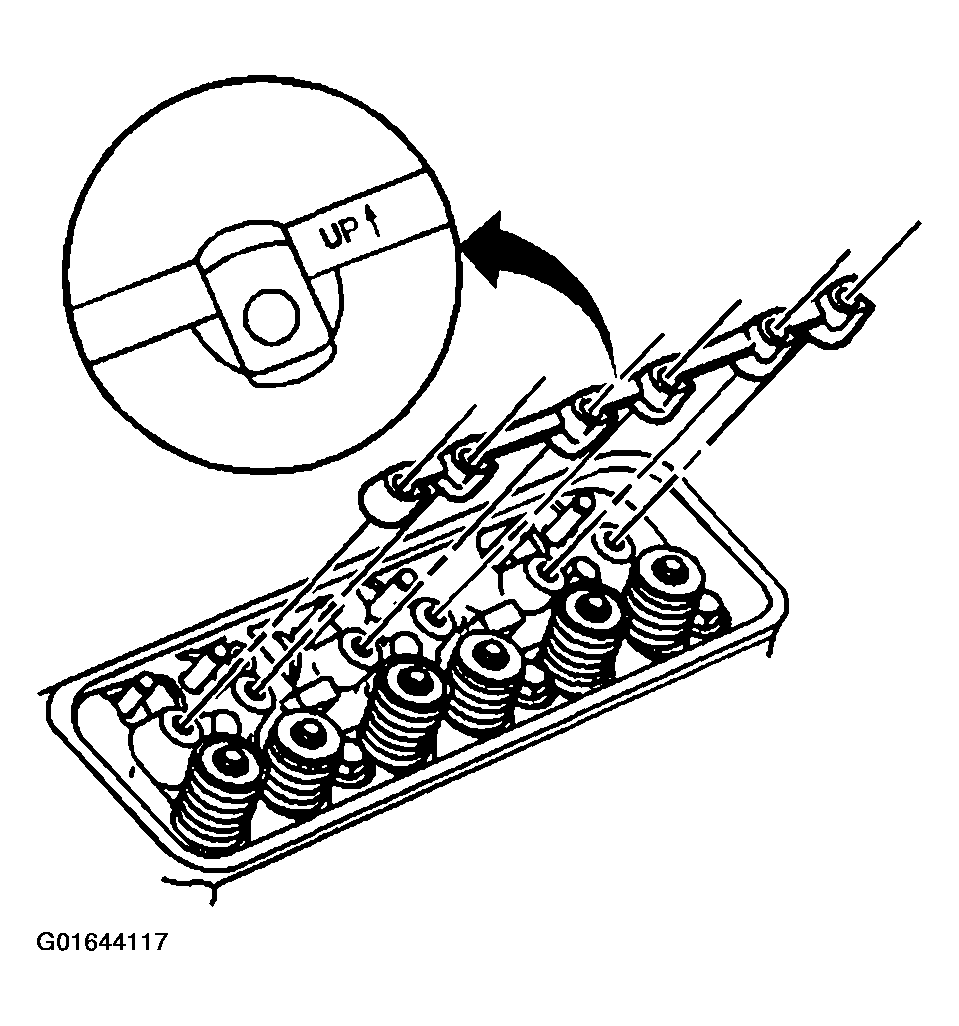

   Important:  Be sure that the arrow on the valve rocker arm support is in the up position.

2. Install the valve rocker arm supports.
   Fig 2: Installing Valve Rocker Arm Supports

   Courtesy of GENERAL MOTORS CORP.

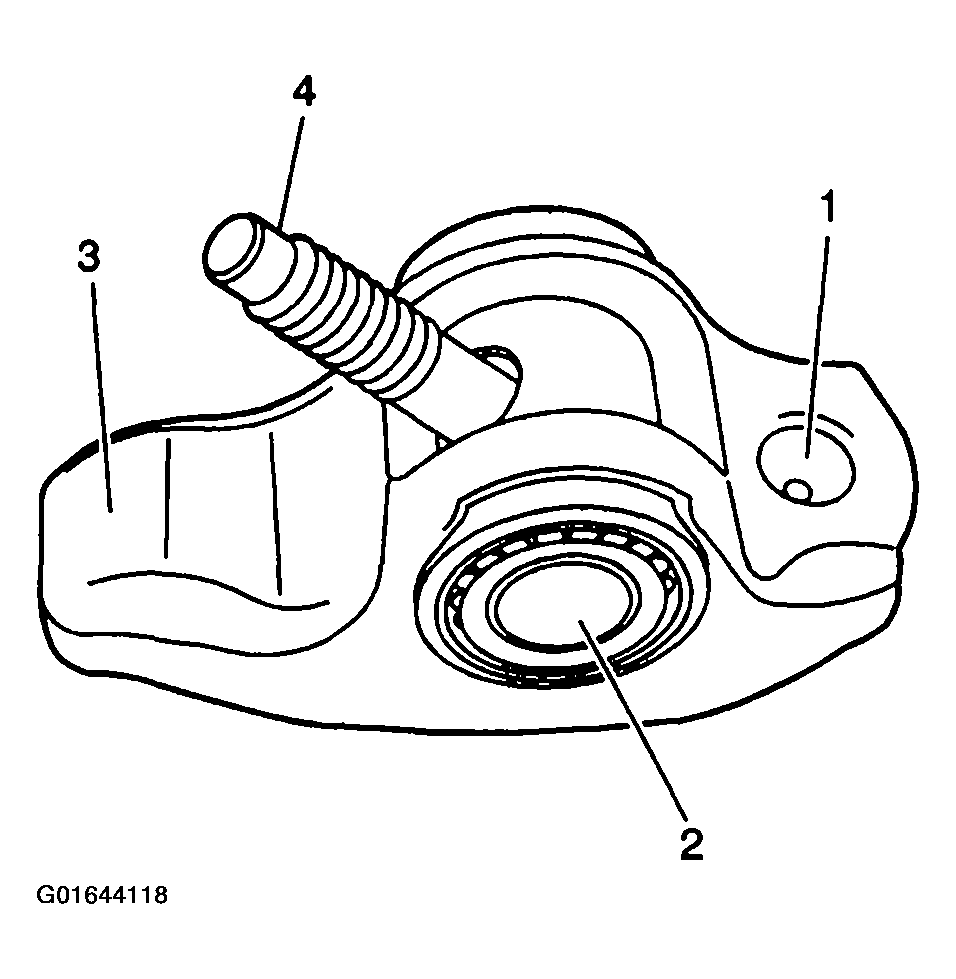

3. Apply prelube GM P/N 12345501 (Canadian P/N 992704) or equivalent, to the following valve rocker arm contact surfaces:
   • Valve pushrod socket (1)
   • Roller pivot (2)
   • Valve stem tip (3)
   Fig 3: Installing Valve Rocker Arm

   Courtesy of GENERAL MOTORS CORP.

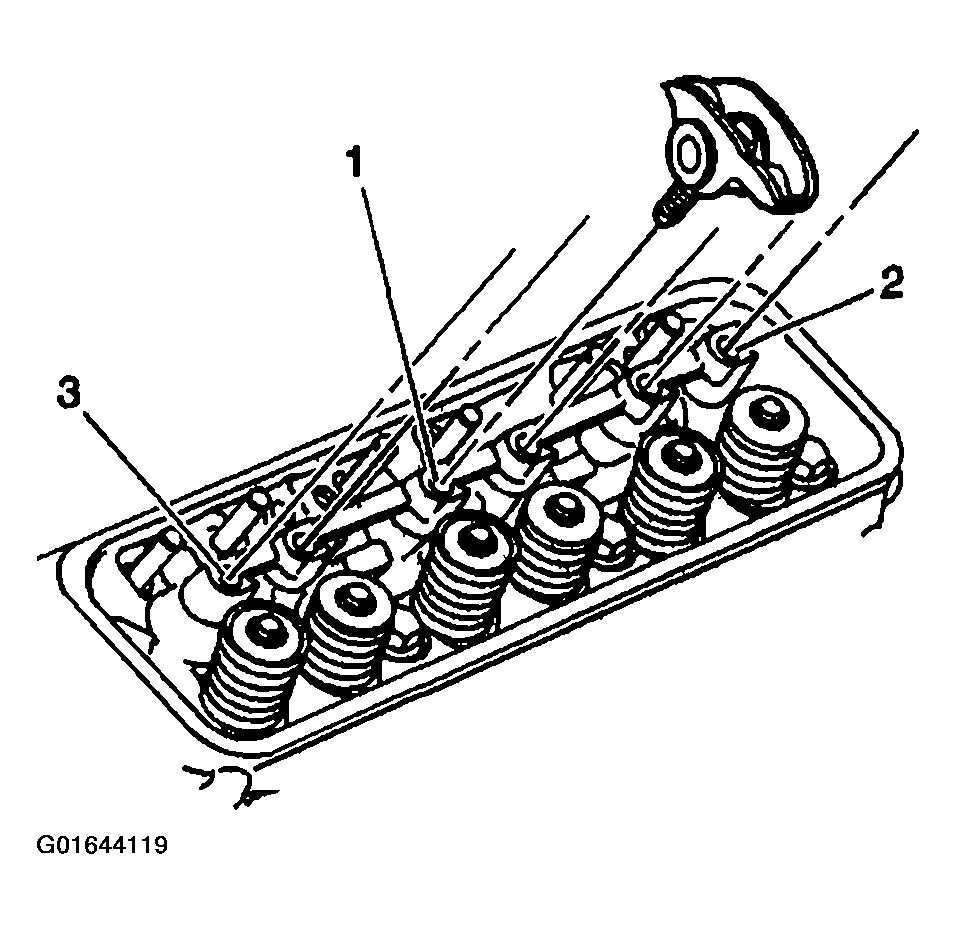

4. Install the valve rocker arm assemblies as follows:
   1. 4.1. Finger start the bolt at location (1)
   2. 4.2. Finger start the bolt at location (2)
   3. 4.3. Finger start the bolt at location (3)
   4. 4.4. Finger start the remaining valve rocker arm bolts

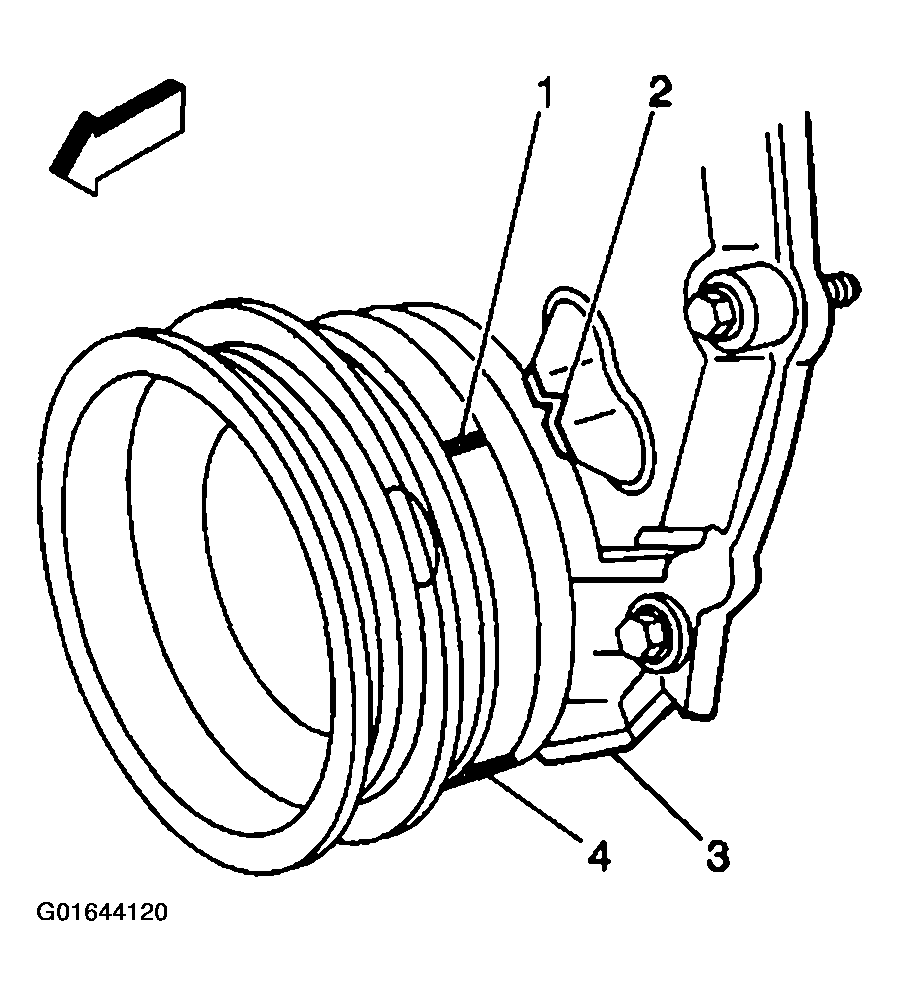

   Fig 4: Rotating Crankshaft Balancer

   Courtesy of GENERAL MOTORS CORP.
5. Rotate the crankshaft balancer to position the crankshaft balancer alignment mark (1) 57-63 degrees clockwise or counterclockwise from the engine front cover alignment tab (2).
   Fig 5: Tightening Valve Rocker Arm Bolts

   Courtesy of GENERAL MOTORS CORP.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

   Important:  Once the valve rocker arm assemblies are installed and properly torqued, no additional valve lash adjustment is required.

6. Tighten the valve rocker arm bolts.

   Tighten

   Tighten valve rocker arm bolts to 30 N.m (22 lb ft).
