Valve Rocker Arm Cover Removal - Right

  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover bolt grommets.

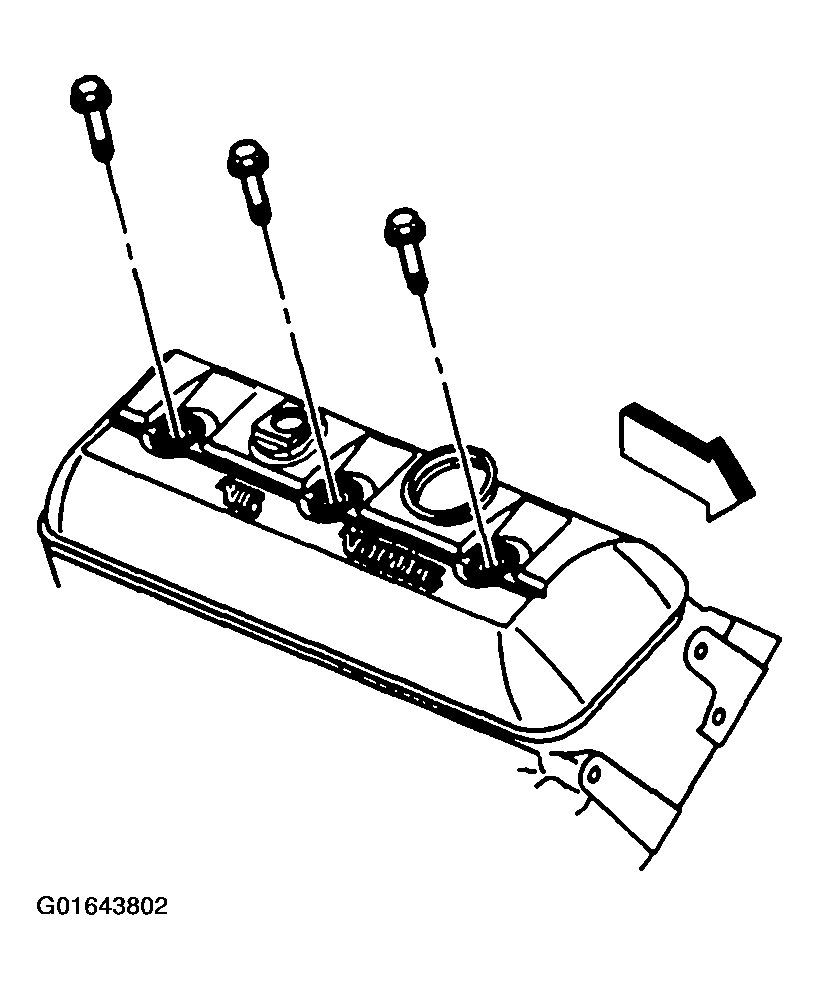

    Fig 1: Removing Valve Rocker Arm Cover Bolts
    G01643802Courtesy of GENERAL MOTORS CORP.
  3. Discard the valve rocker arm cover bolt grommets.
  4. Remove the valve rocker arm cover

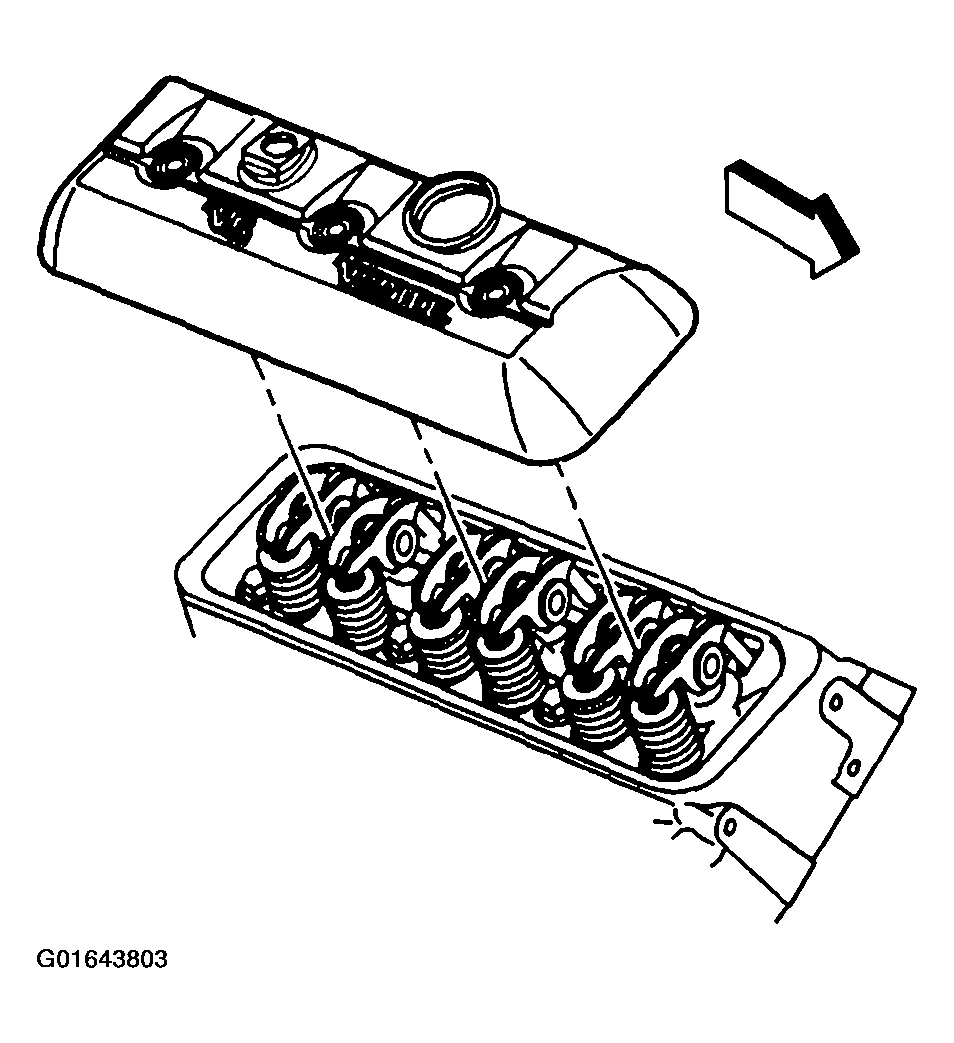

    Fig 2: Removing Valve Rocker Arm Cover
    G01643803Courtesy of GENERAL MOTORS CORP.
  5. Remove the valve rocker arm cover gasket.

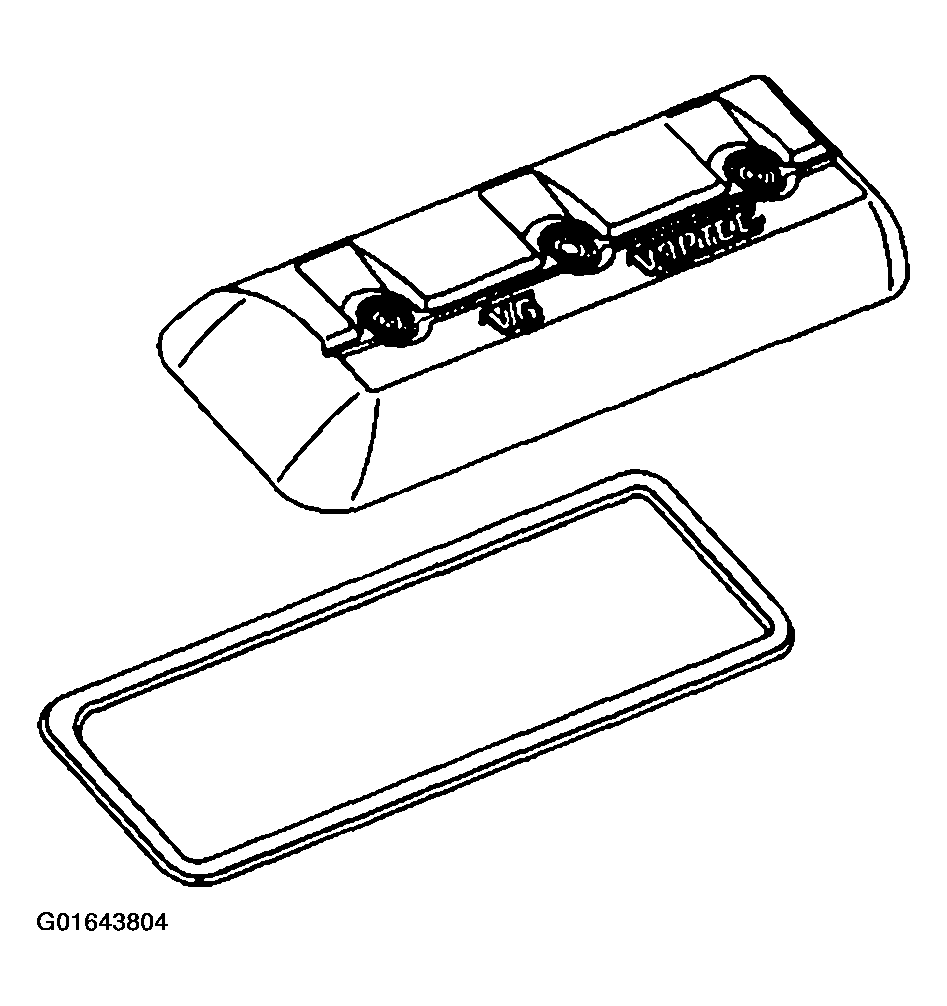

    Fig 3: Removing Valve Rocker Arm Cover Gasket
    G01643804Courtesy of GENERAL MOTORS CORP.
  6. Discard the valve rocker arm cover gasket.
