Valve Lifter Removal

Tools Required

J 3049-A  Valve Lifter Remover

Important:

Place the components in a rack so that the components can be reinstalled to their original location.

1. Remove the bolts and valve lifter pushrod guide.

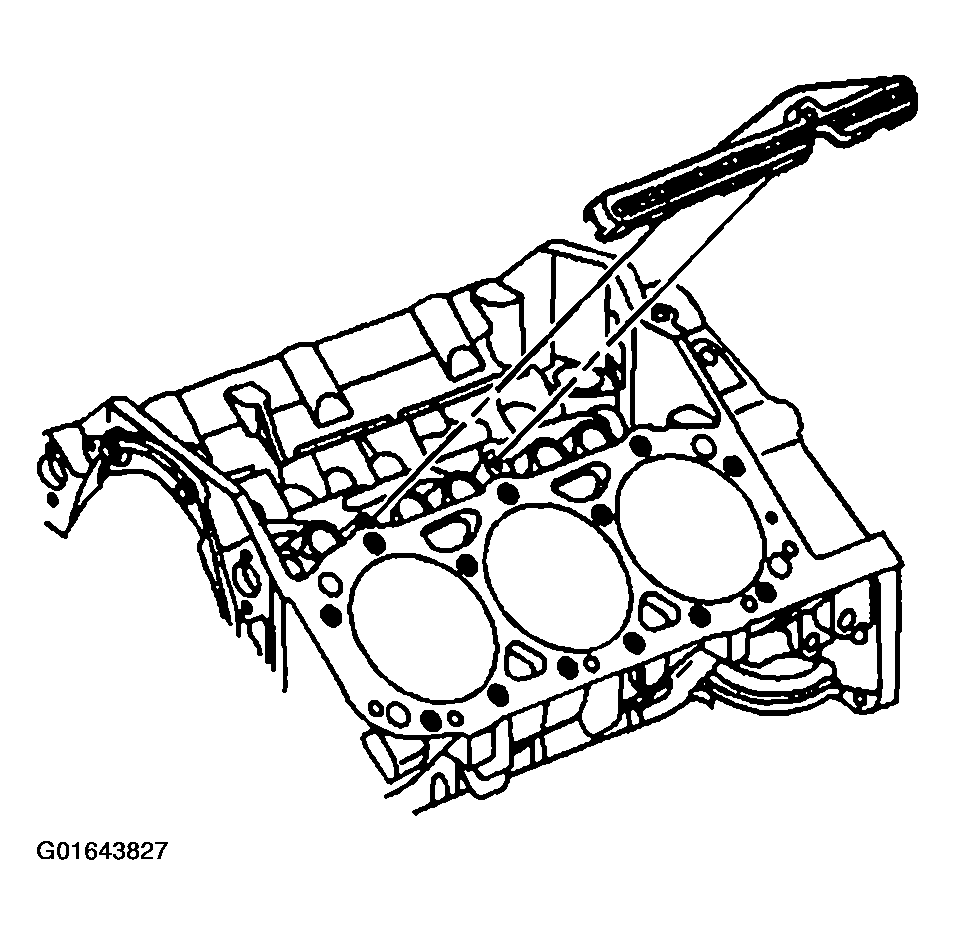

   Fig 1: Removing Bolts And Valve Lifter Pushrod Guide

   Courtesy of GENERAL MOTORS CORP.

   Important:

   Place the valve lifters in the rack in the upright position in order to maintain the oil inside the valve lifters.

2. Remove the valve lifters.

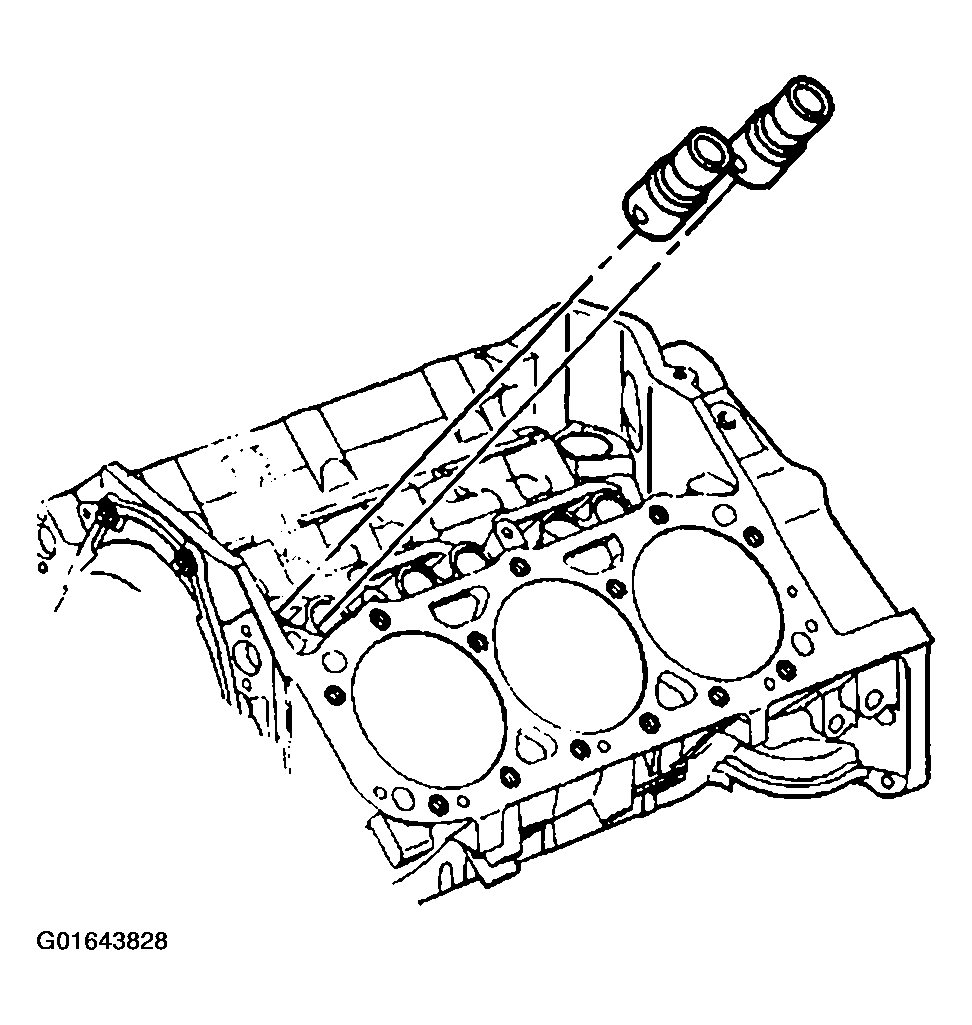

   Fig 2: Removing Valve Lifters

   Courtesy of GENERAL MOTORS CORP.

   Important:

   Some valve lifters may be stuck in the valve lifter bores because of gum or varnish deposits and may require the use of J 3049-A  for removal.

3. Use the J 3049-A  in order to remove the stuck valve lifters.

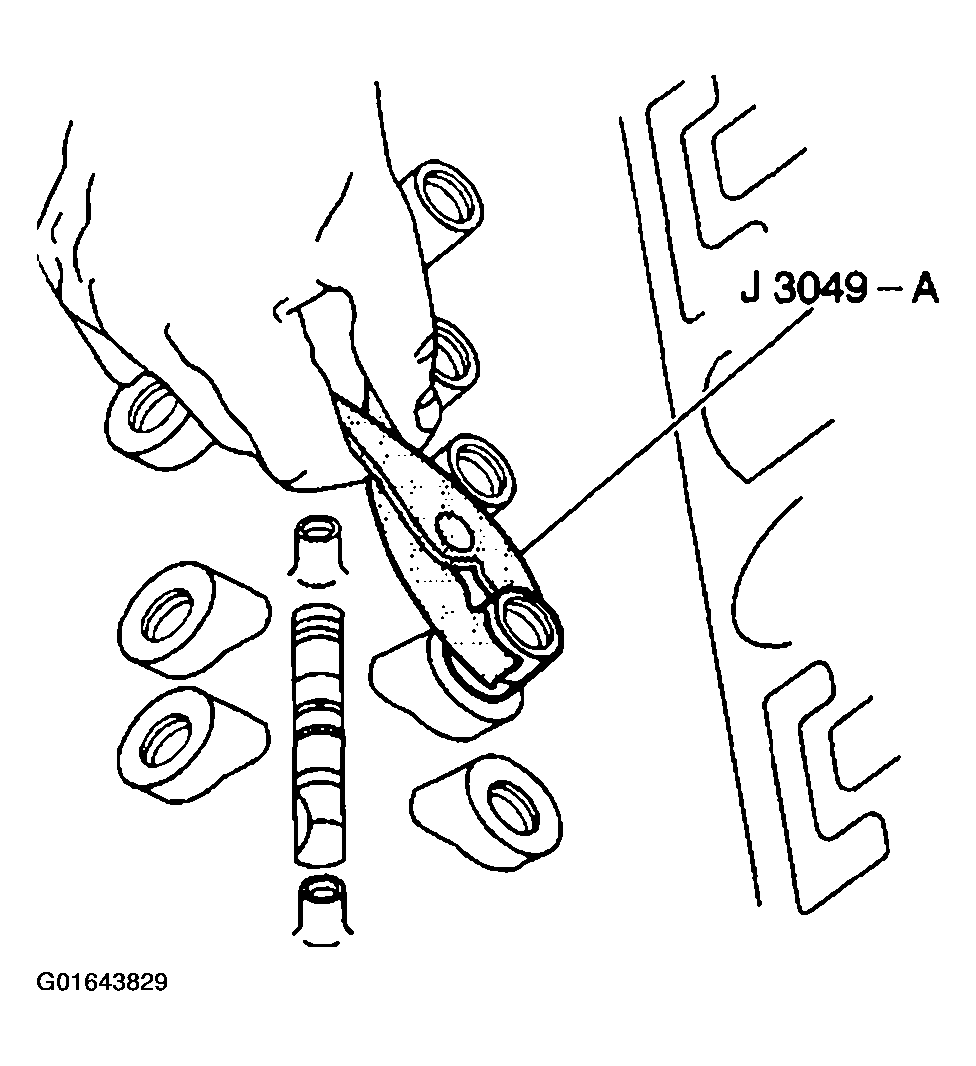

   Fig 3: Removing Stuck Valve Lifters

   Courtesy of GENERAL MOTORS CORP.
