Oil Pump Removal

  1. Remove the oil pump bolt.

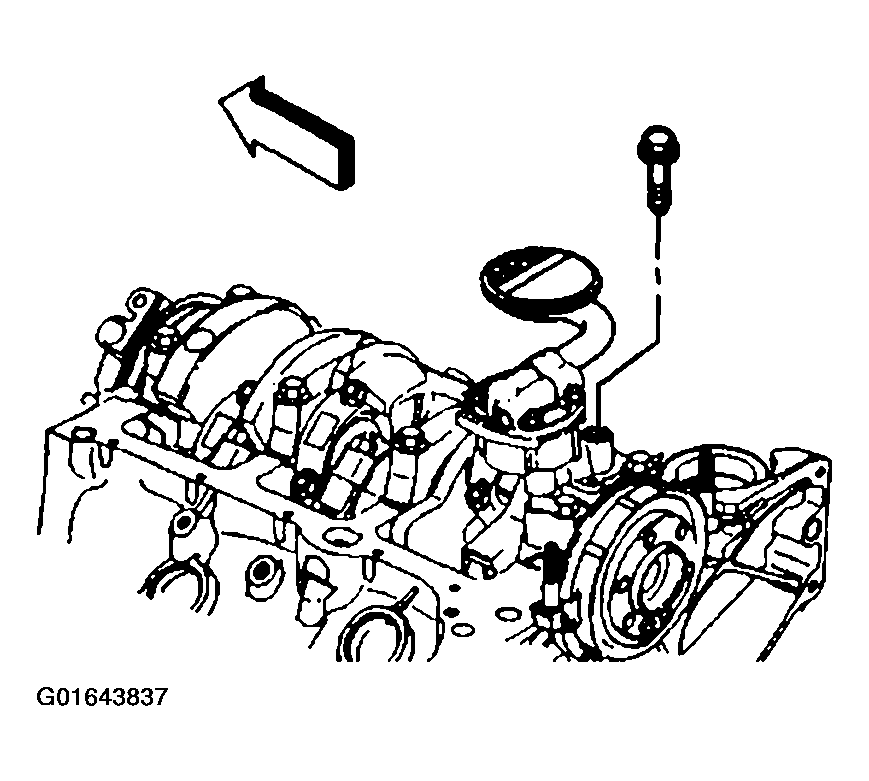

    Fig 1: Removing Oil Pump Bolt
    G01643837Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pump.

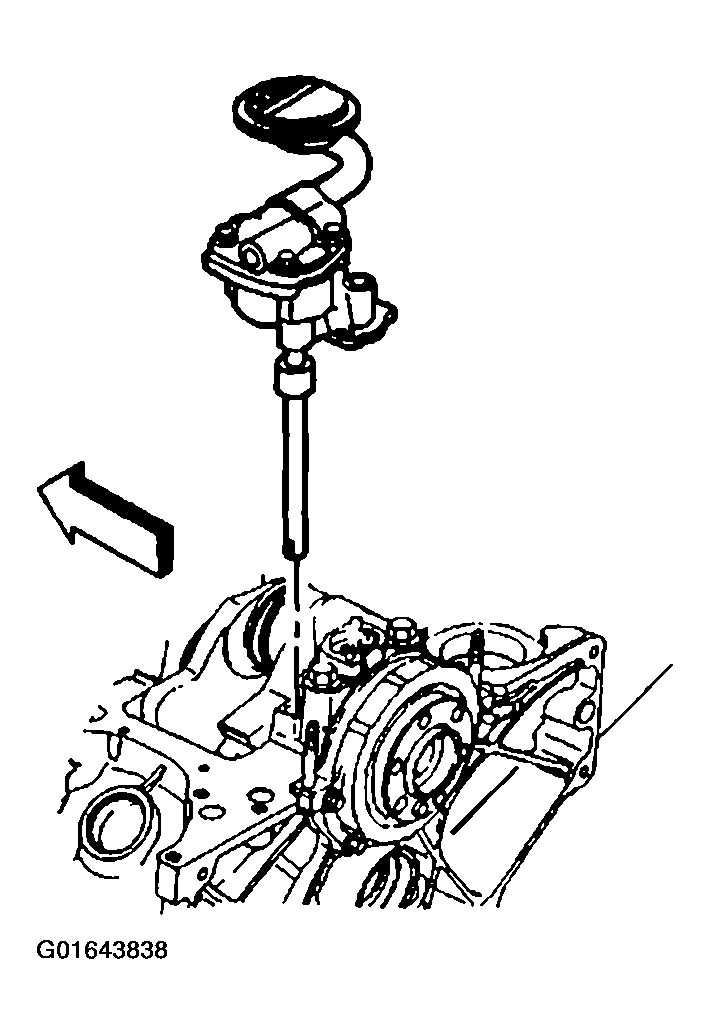

    Fig 2: Removing Oil Pump
    G01643838Courtesy of GENERAL MOTORS CORP.
  3. Inspect the oil pump locator pins for damage, and replace the pins if required.

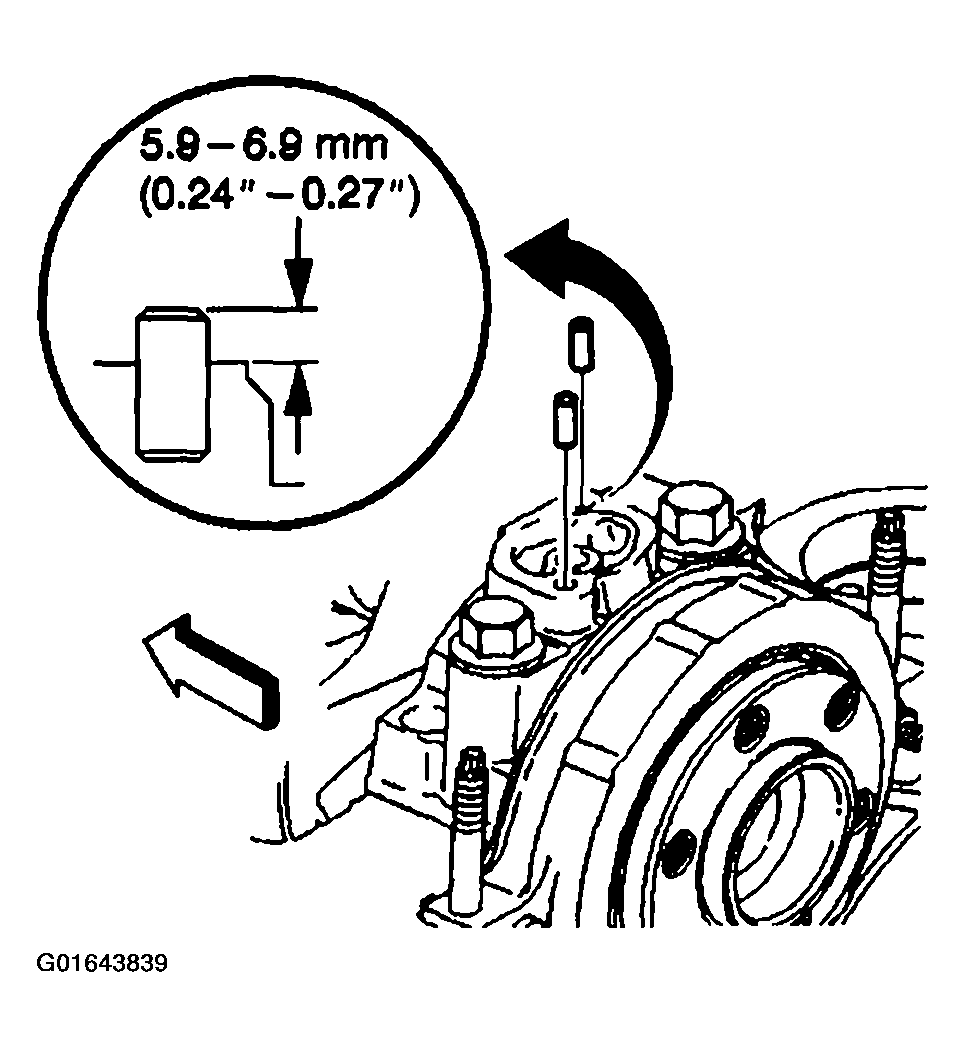

    Fig 3: Inspecting Oil Pump Locator Pins
    G01643839Courtesy of GENERAL MOTORS CORP.
