Oil Pan Removal

  1. Remove and discard the engine oil level sensor, if applicable.

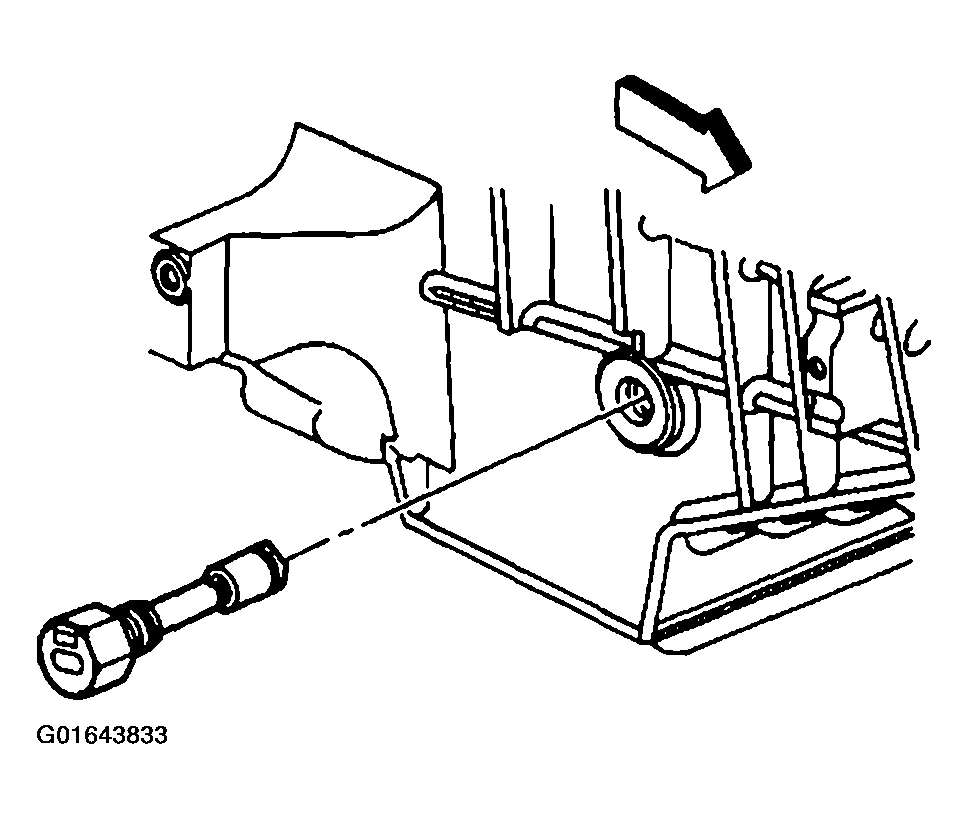

    Fig 1: Removing Engine Oil Level Sensor
    G01643833Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pan bolts and nuts.

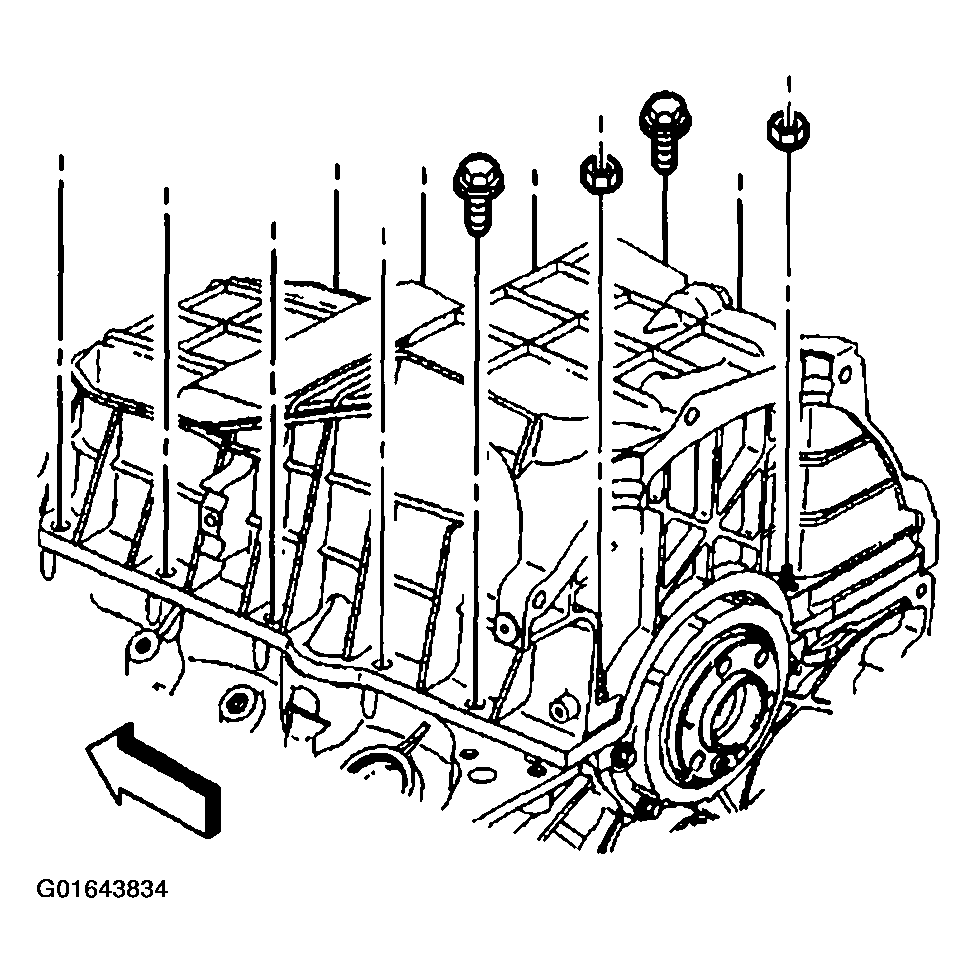

    Fig 2: Removing Oil Pan Bolts And Nuts
    G01643834Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan.

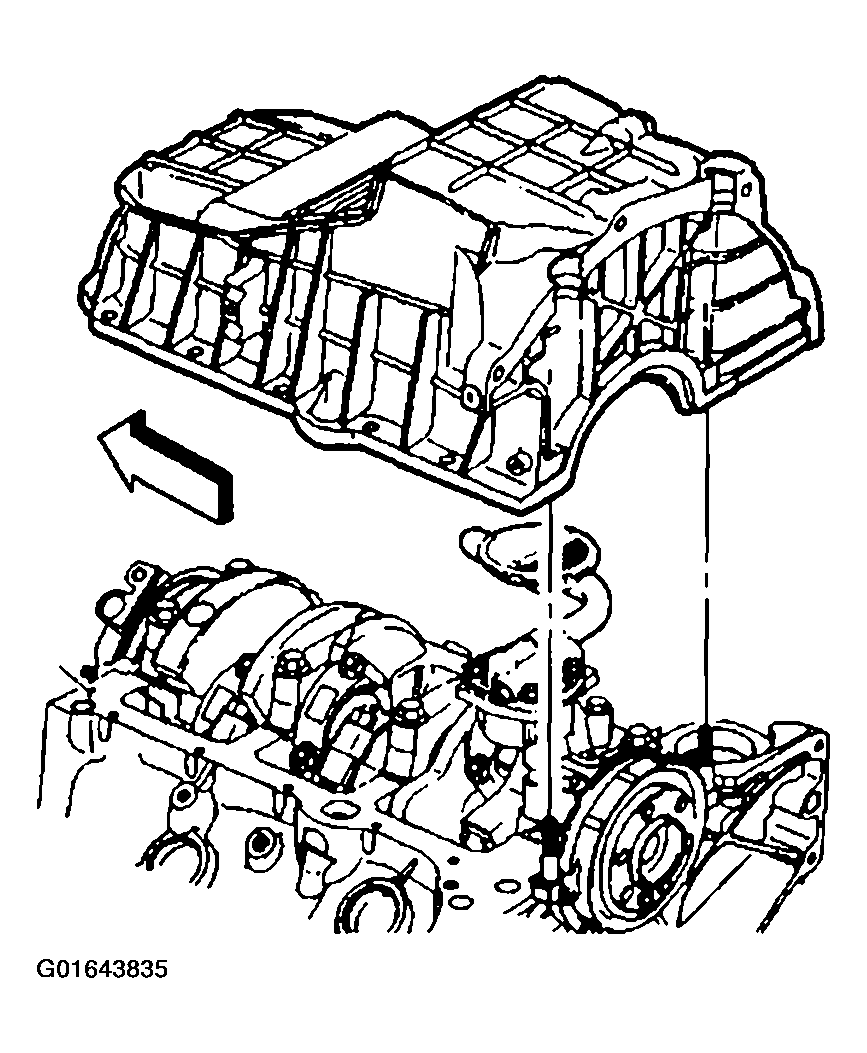

    Fig 3: Removing Oil Pan
    G01643835Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan gasket.

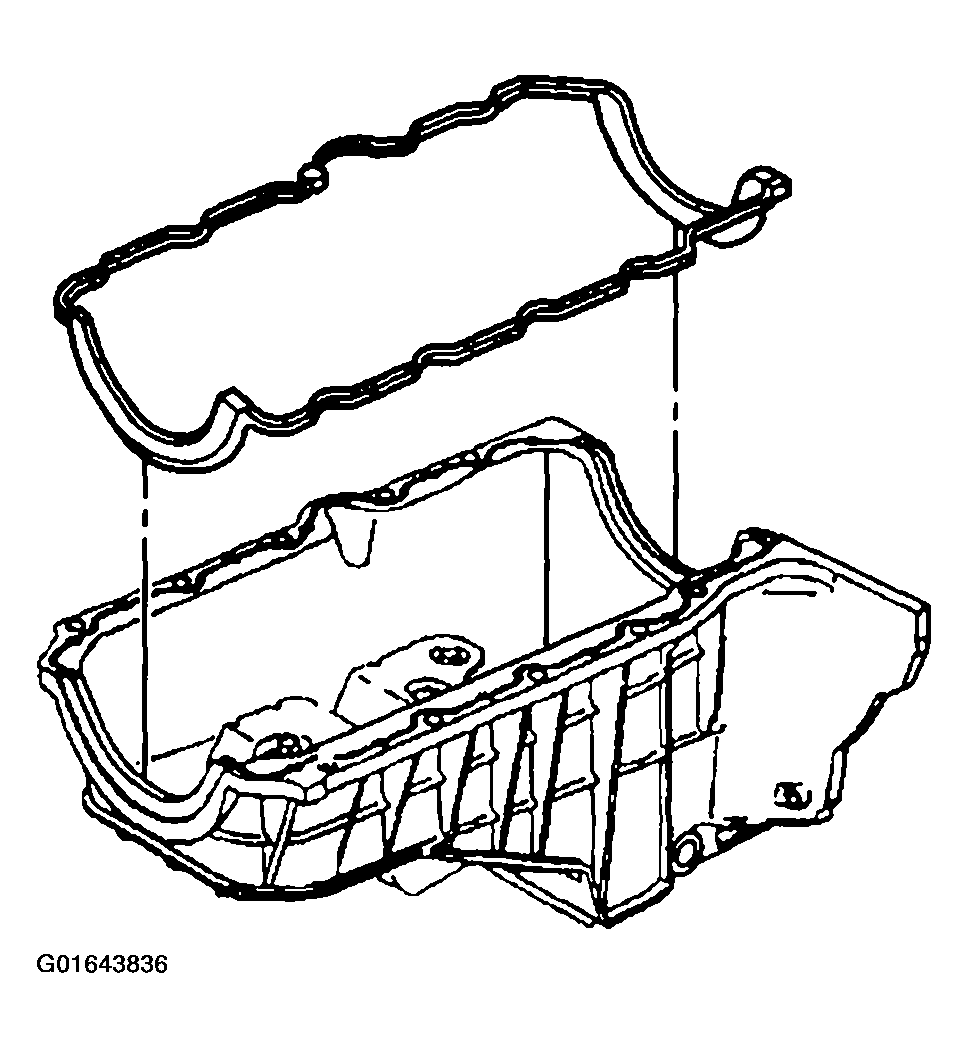

    Fig 4: Removing Oil Pan Gasket
    G01643836Courtesy of GENERAL MOTORS CORP.
  5. Discard the oil pan gasket.
