Oil Level Indicator and Tube Removal

  1. Remove the oil level indicator from the oil level indicator tube, if required.

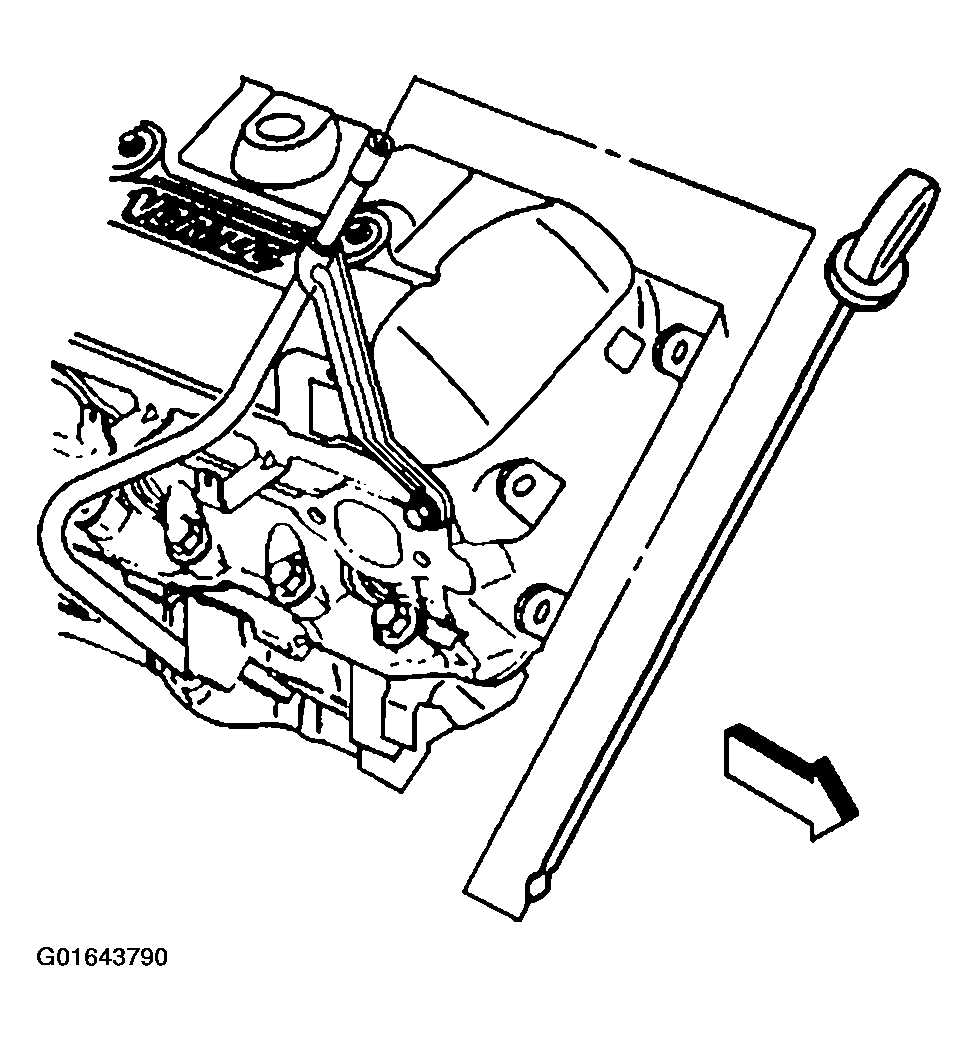

    Fig 1: Removing Oil Level Indicator From Oil Level Indicator Tube
    G01643790Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.

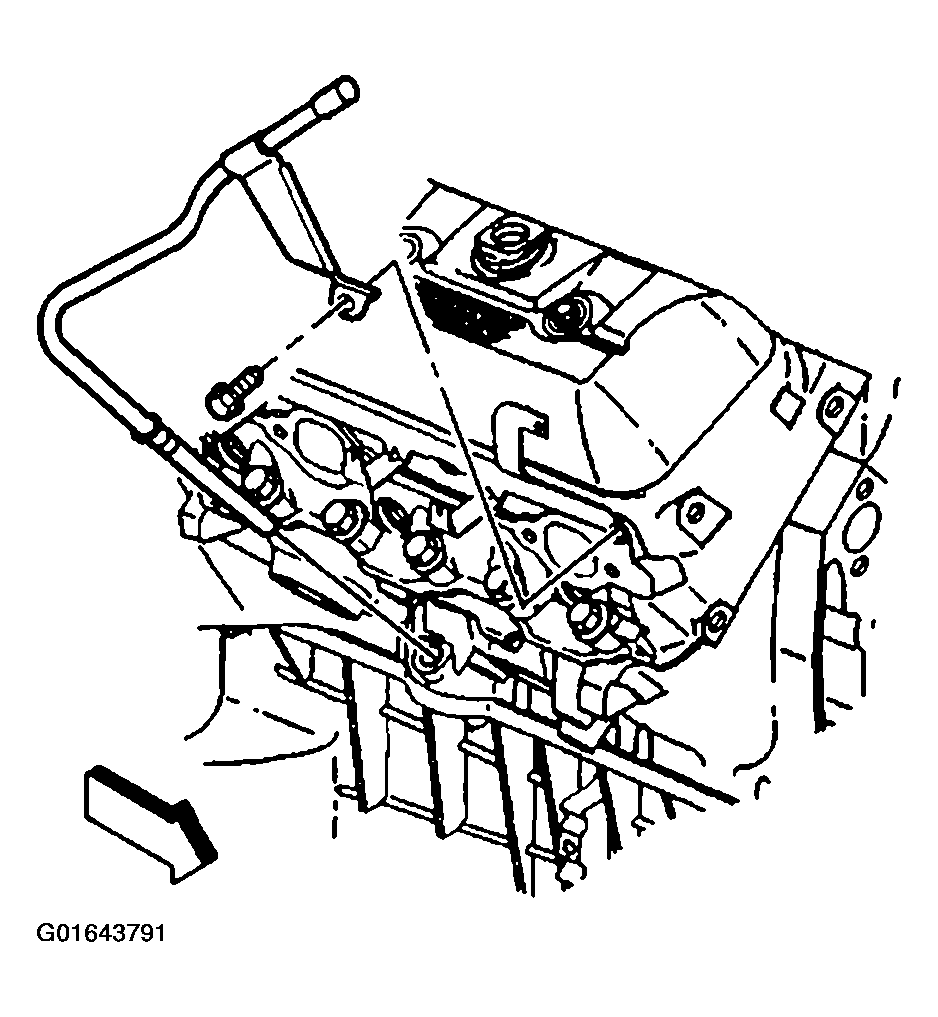

    Fig 2: Removing Oil Level Indicator Tube and Bolt
    G01643791Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level indicator tube from the engine block.
