Oil Level Indicator and Tube Installation

  1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent, around the oil level indicator tube 13 mm (0.5 in) below the tube bead.
  2. Install the oil level indicator tube into the engine block. Rotate the oil level indicator tube into position.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the oil level indicator tube bolt.

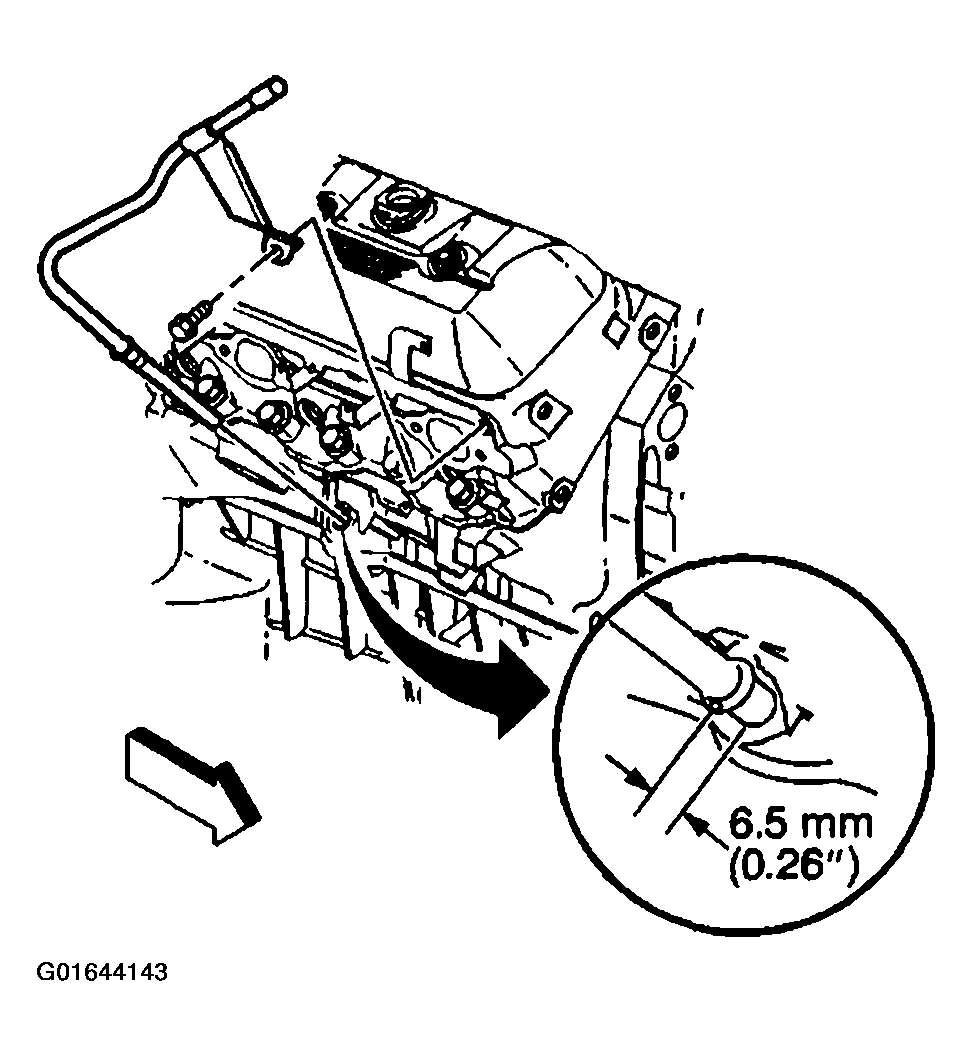

    Fig 1: Installing Oil Level Indicator Tube Bolt
    G01644143Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the oil level indicator tube bolt to 12 N.m (106 lb in).

  4. Install the oil level indicator into the oil level indicator tube, if required.

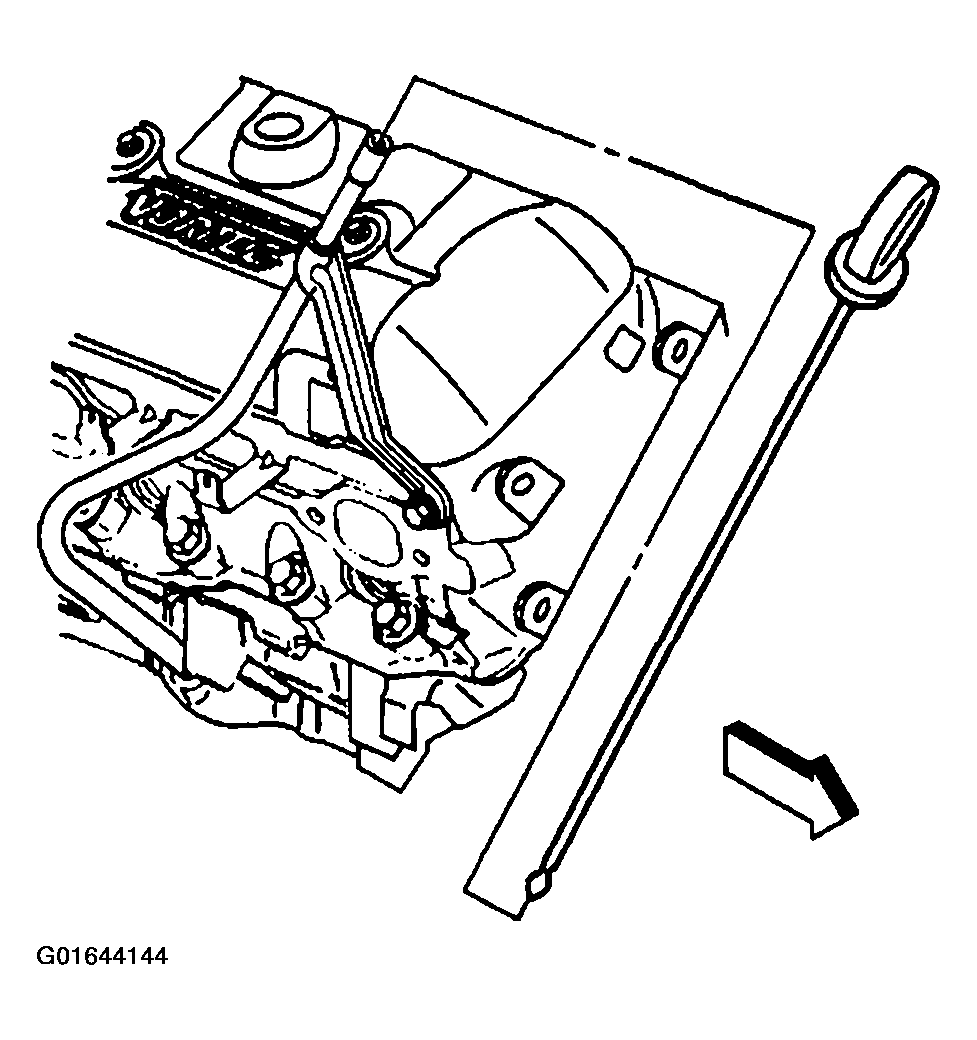

    Fig 2: Installing Oil Level Indicator Into Oil Level Indicator Tube
    G01644144Courtesy of GENERAL MOTORS CORP.
