Distributor Removal

  1. Remove the ignition coil wire harness from the ignition coil and distributor cap.

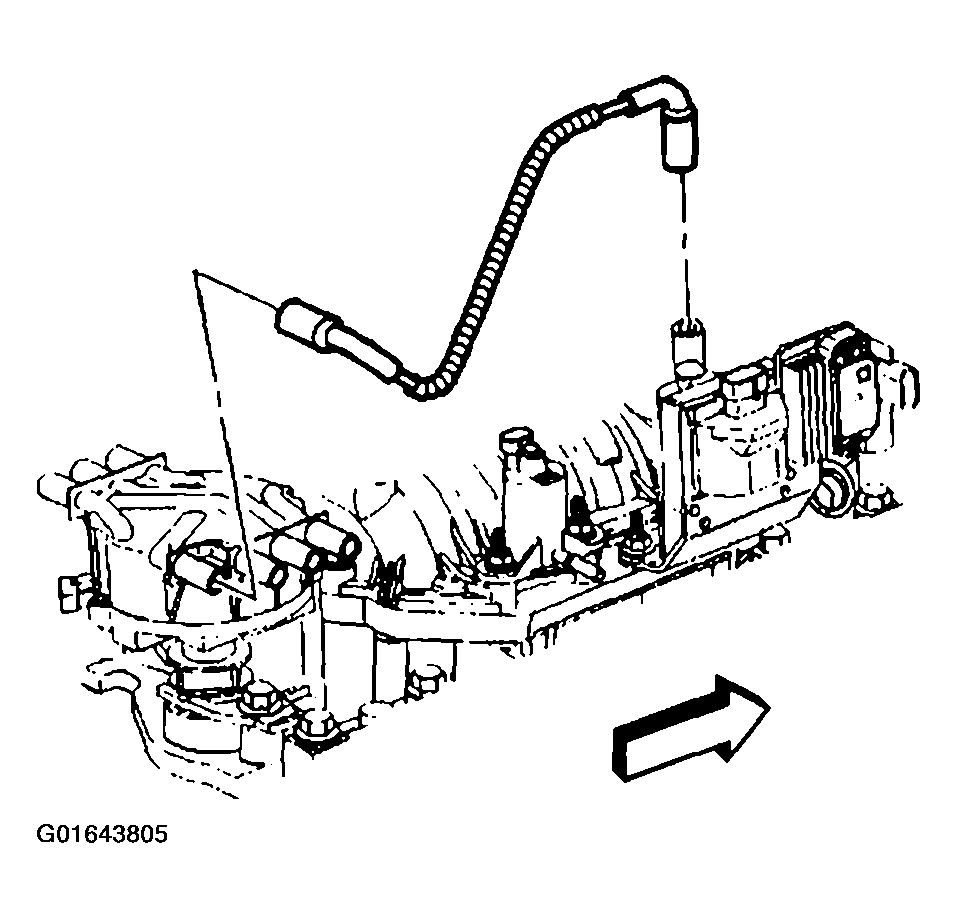

    Fig 1: Removing Ignition Coil Wire Harness From Ignition Coil And Distributor Cap
    G01643805Courtesy of GENERAL MOTORS CORP.
  2. Remove the distributor clamp bolt.

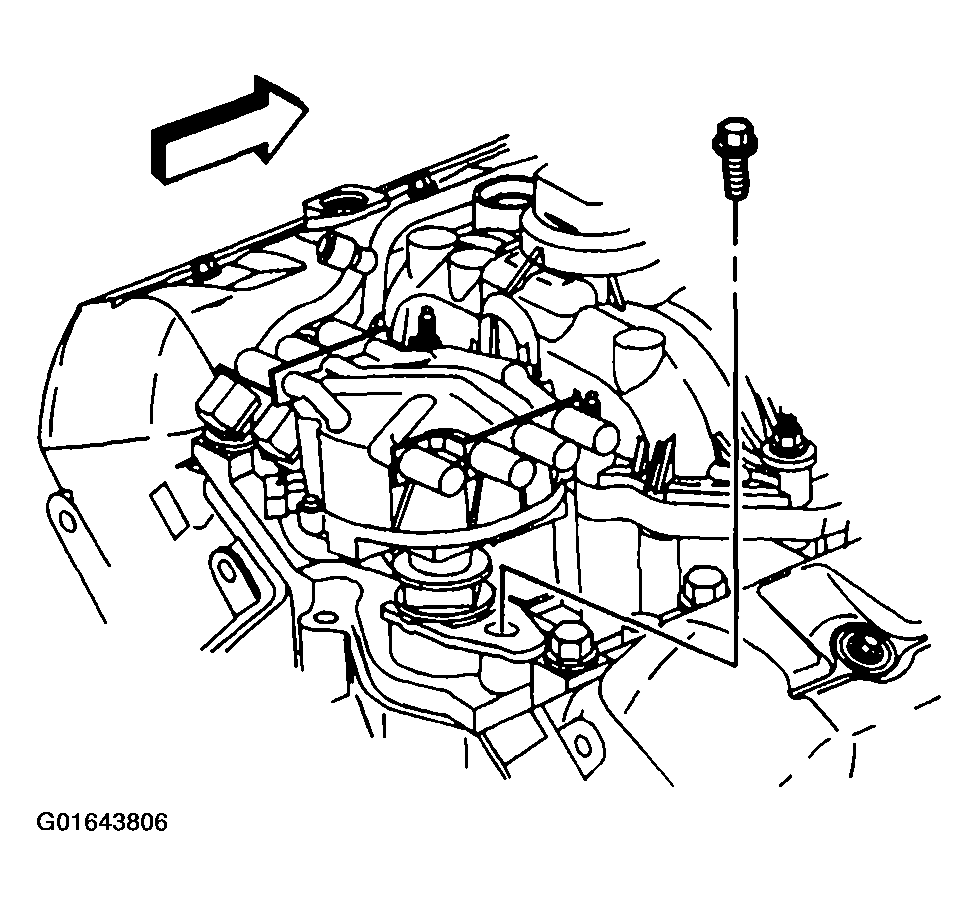

    Fig 2: Removing Distributor Clamp Bolt
    G01643806Courtesy of GENERAL MOTORS CORP.
  3. Remove the distributor and the distributor clamp.
  4. Remove the distributor gasket and discard.
    Fig 3: Removing Distributor Gasket
    G01643807Courtesy of GENERAL MOTORS CORP.
