Cylinder Head Removal - Left

  1. Remove the engine coolant temperature sensor, if applicable.

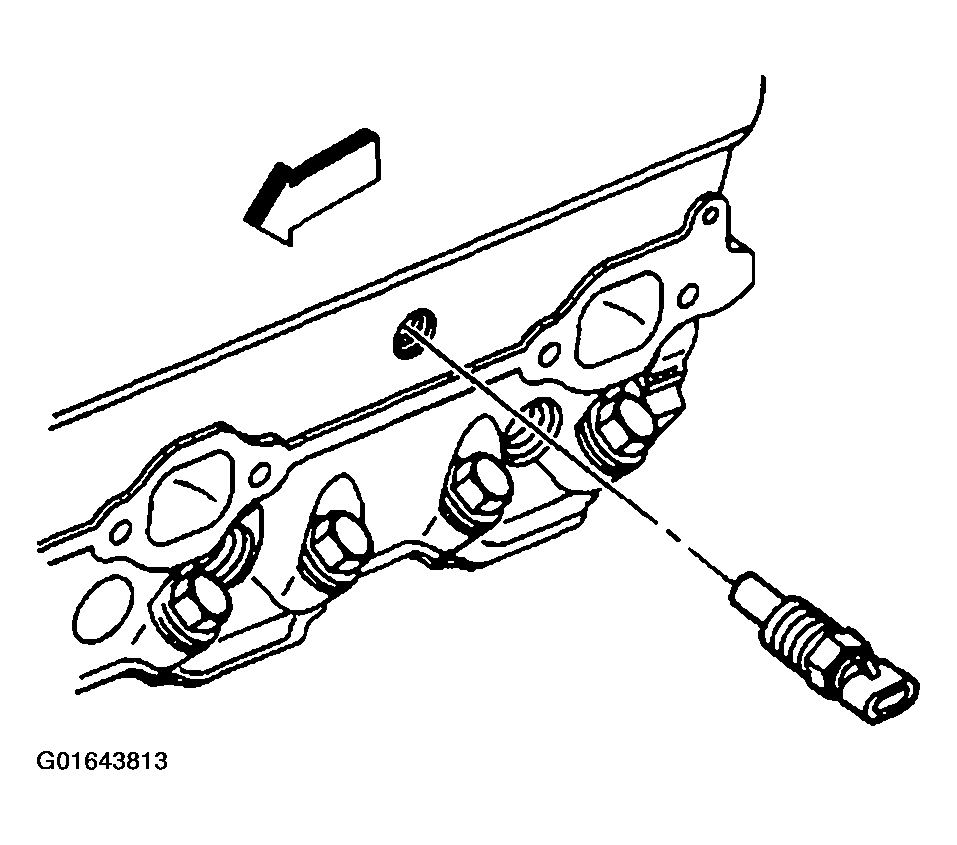

    Fig 1: Removing Engine Coolant Temperature Sensor - Left
    G01643813Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine coolant temperature gage sensor, if applicable.

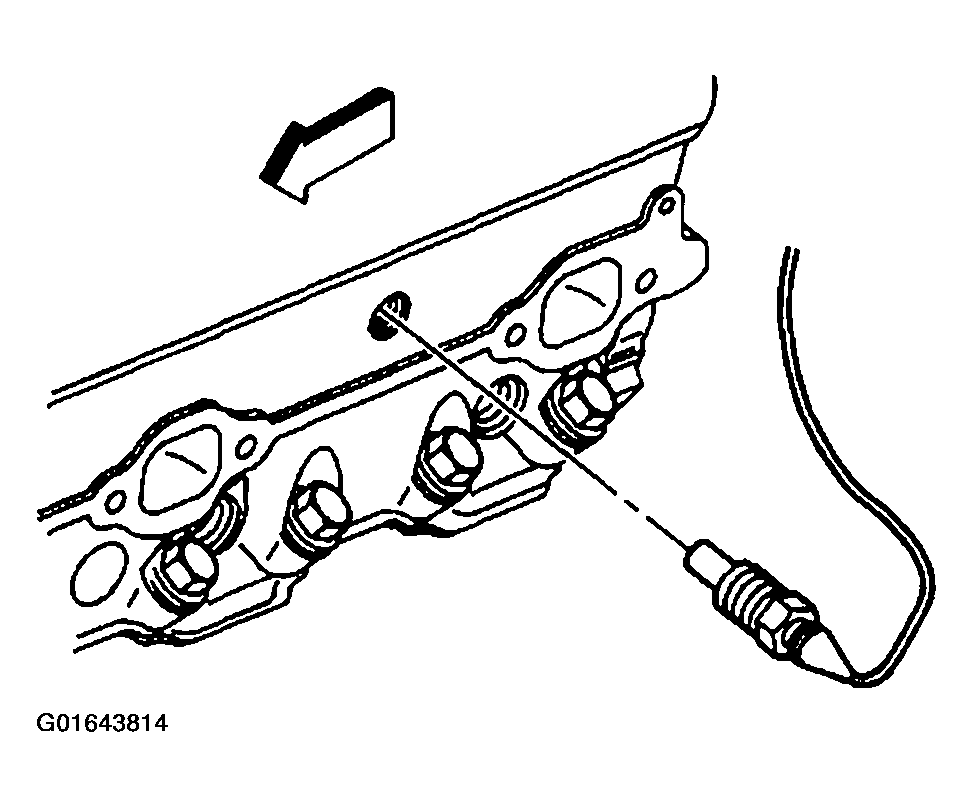

    Fig 2: Removing Engine Coolant Temperature Gage Sensor - Left
    G01643814Courtesy of GENERAL MOTORS CORP.
  3. Remove the spark plugs

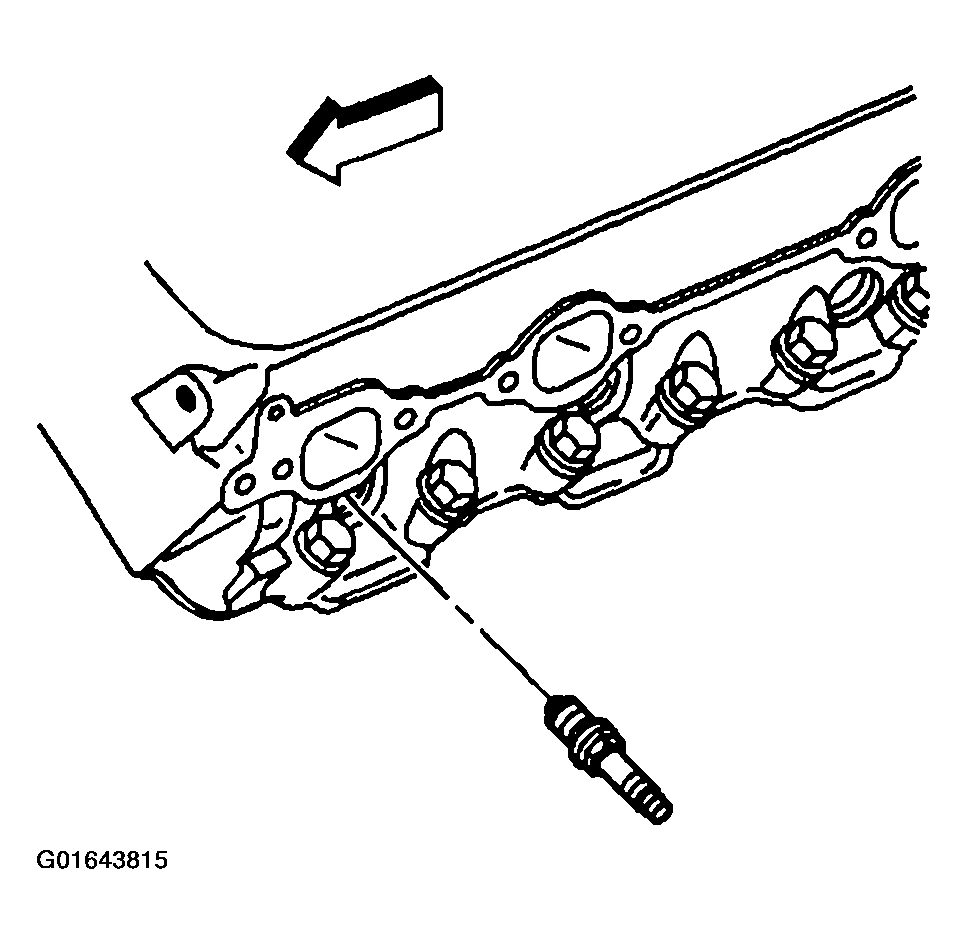

    Fig 3: Removing Spark Plugs - Left
    G01643815Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts and the spark plug wire support.

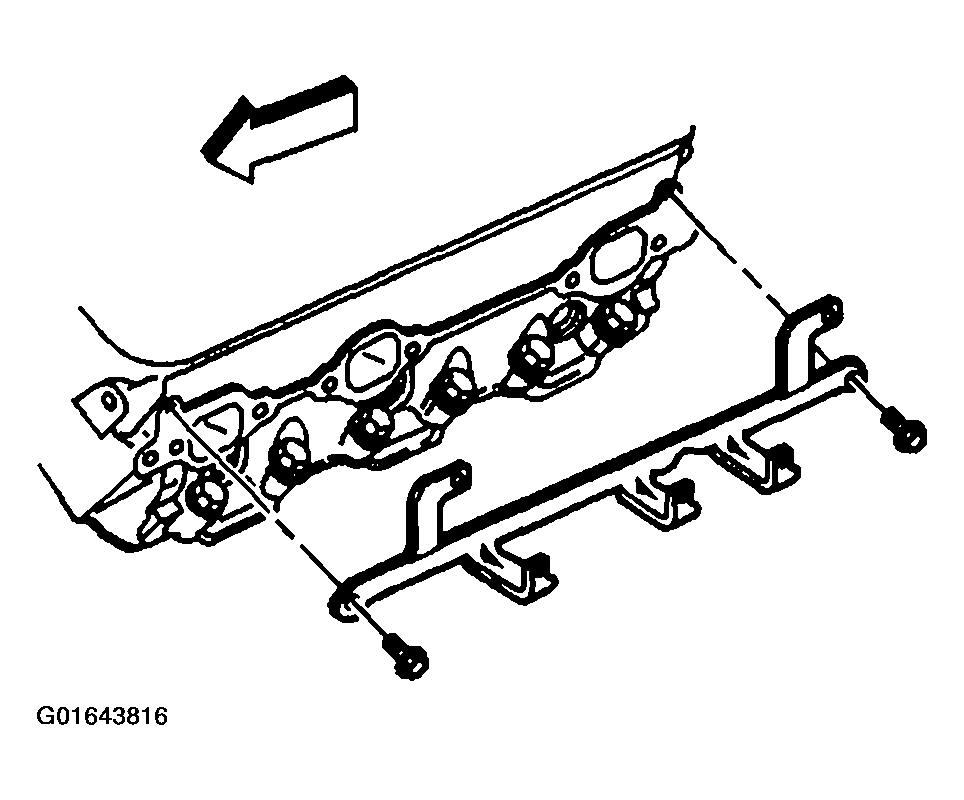

    Fig 4: Removing Bolts And The Spark Plug Wire Support - Left
    G01643816Courtesy of GENERAL MOTORS CORP.
  5. Remove the cylinder head bolts.

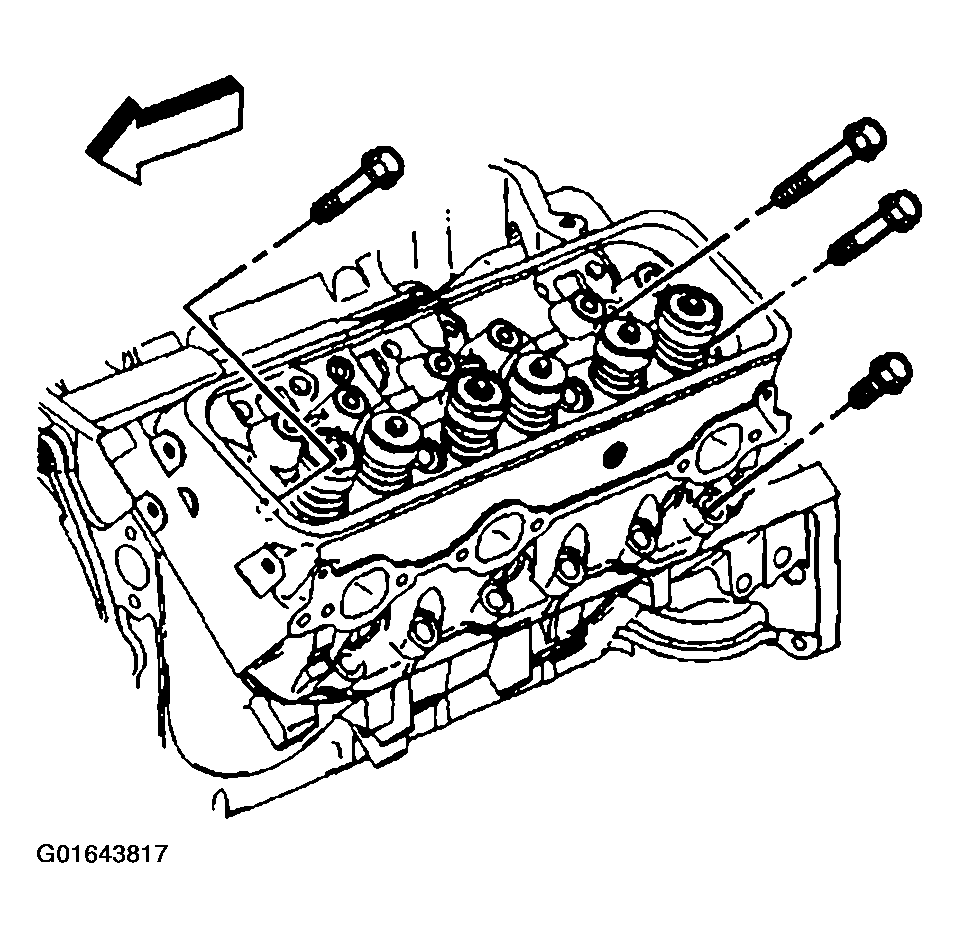

    Fig 5: Removing Cylinder Head Bolts - Left
    G01643817Courtesy of GENERAL MOTORS CORP.
    NOTE: After removal, place the cylinder head on two wood blocks to prevent damage.
  6. Remove the cylinder head.

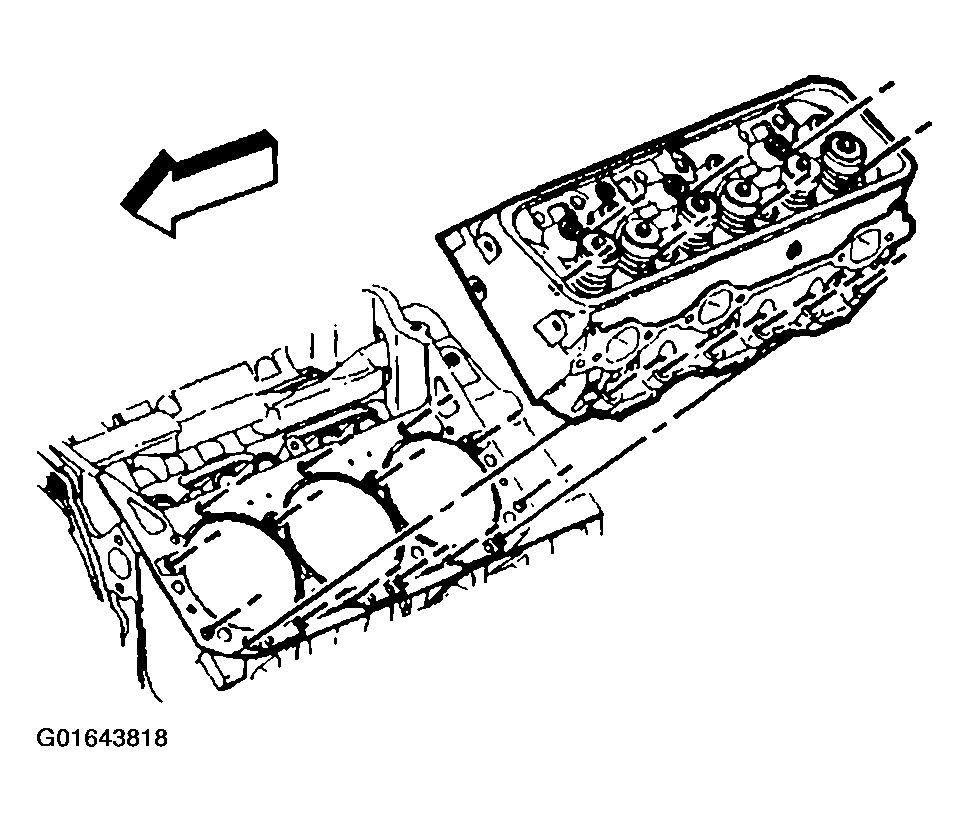

    Fig 6: Removing Cylinder Head - Left
    G01643818Courtesy of GENERAL MOTORS CORP.
  7. Remove and discard the cylinder head gasket.

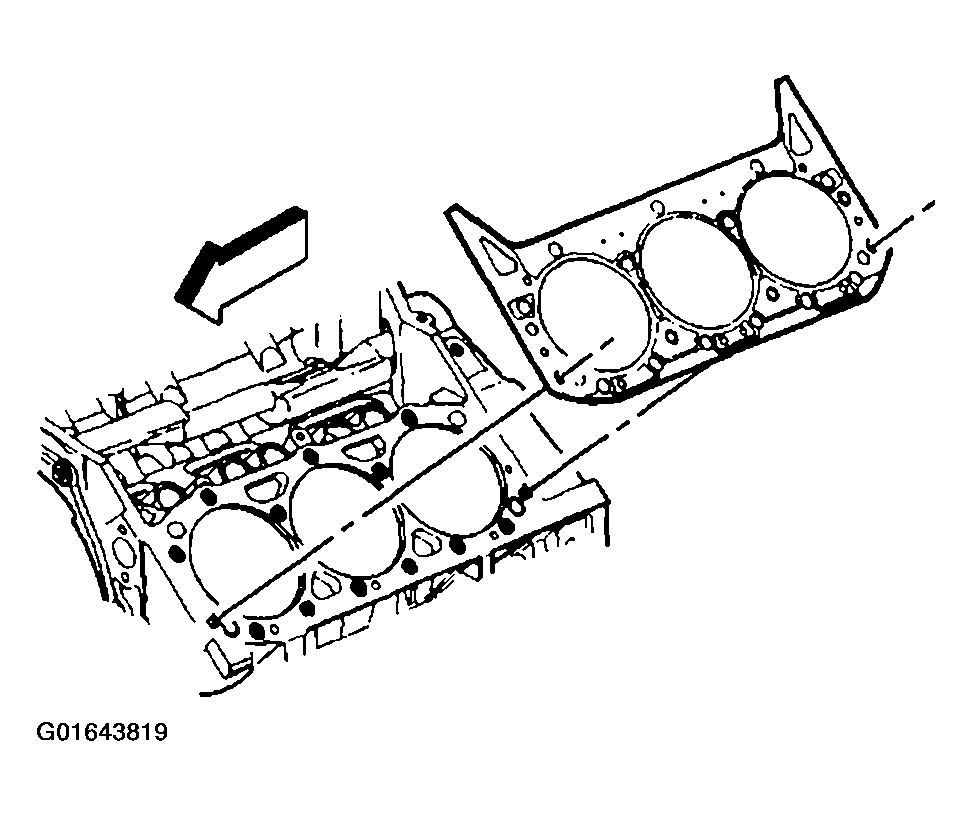

    Fig 7: Removing Discard Cylinder Head Gasket - Left
    G01643819Courtesy of GENERAL MOTORS CORP.
  8. Remove the cylinder head locator dowel pins, if required.

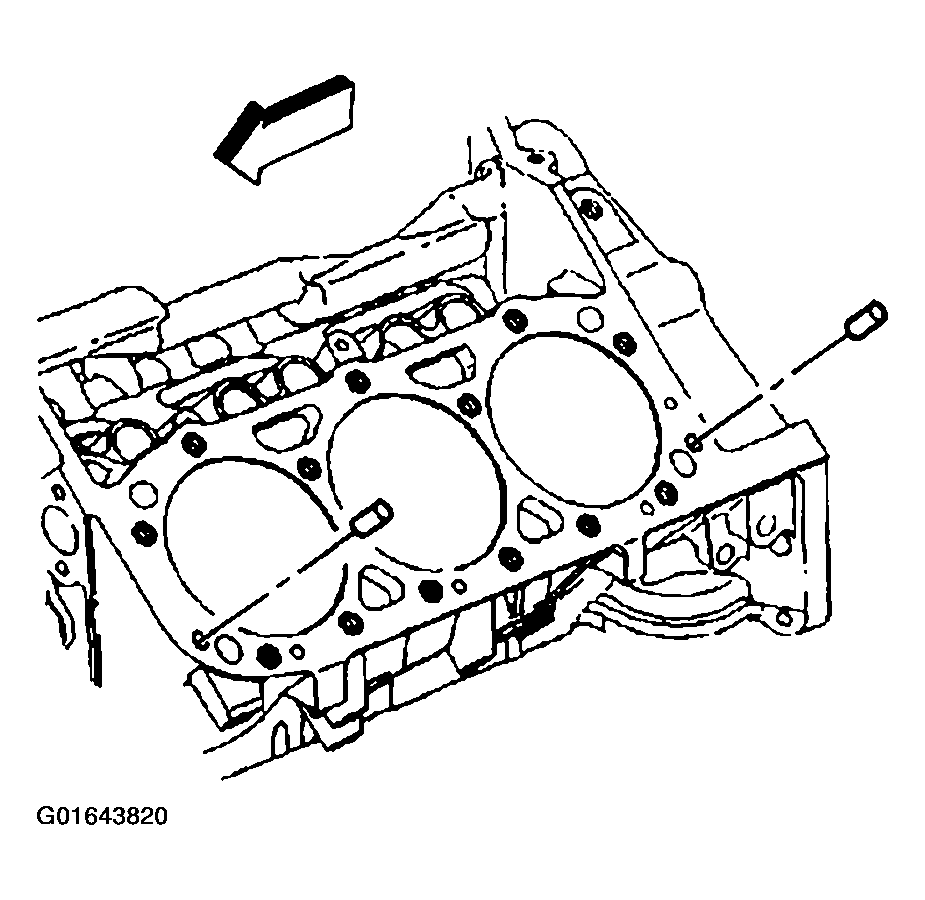

    Fig 8: Removing Cylinder Head Locator Dowel Pins - Left
    G01643820Courtesy of GENERAL MOTORS CORP.
