Measuring connecting Road Bearing Side Clearance

  1. Insert a feeler gage between the connecting rod caps and measure the connecting rod side clearance. The proper connecting rod side clearance specification is 0.017 in).

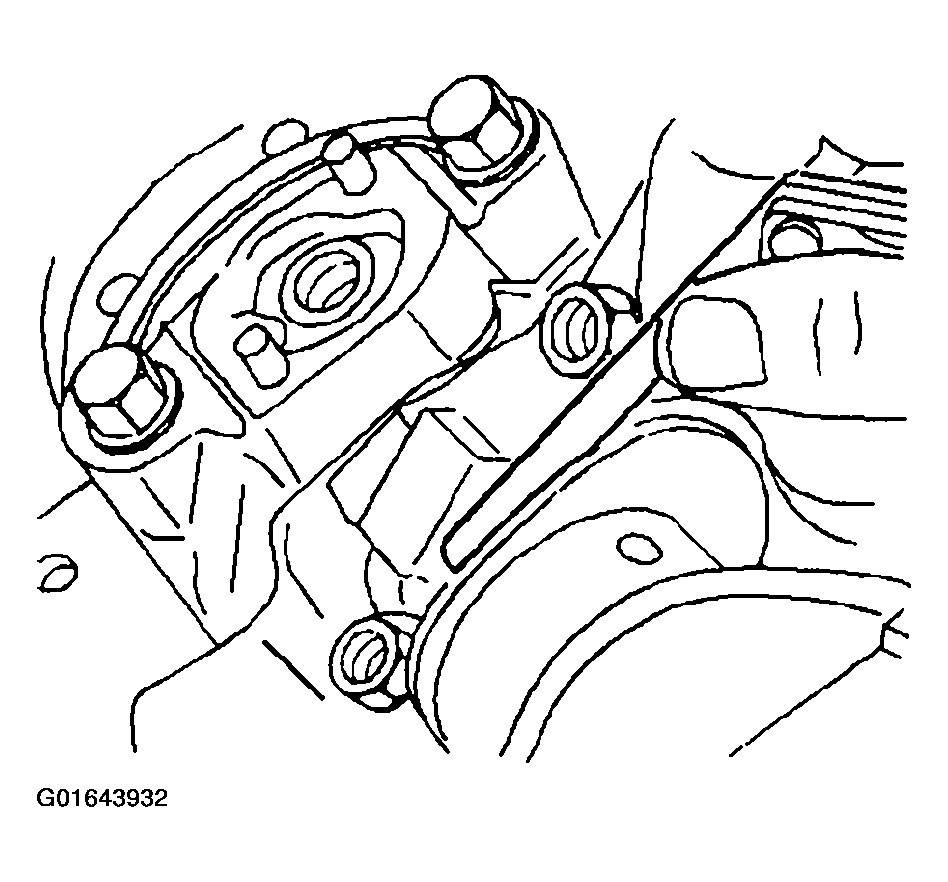

    Fig 1: Connecting Rod Side Clearances
    G01643932Courtesy of GENERAL MOTORS CORP.
  2. Connecting rod side clearances may also be measured with a dial indictor set.
