Crankshaft Balancer Installation

Tools Required

J 23523-F  Balancer Remover and Installer

1. Look to ensure that the crankshaft balancer front groove pin is installed in the proper location, if applicable.

   The length and location of the pins must be the same as the original length and location.

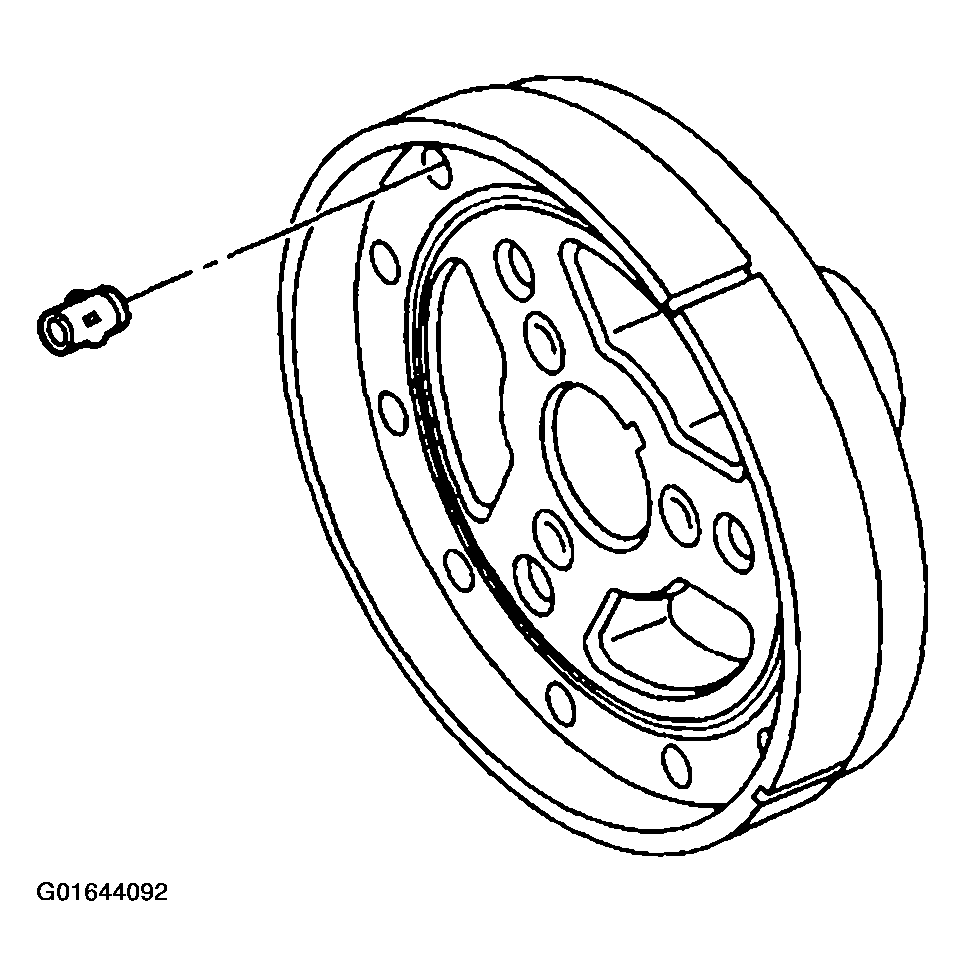

   Fig 1: Identifying Crankshaft Balancer

   Courtesy of GENERAL MOTORS CORP.
   NOTE: The inertial weight section of the crankshaft balancer is assembled to the hub with a rubber type material. The correct installation procedures (with the proper tool) must be followed or movement of the inertial weight section of the hub will destroy the tuning of the crankshaft balancer.
2. Apply a small amount of adhesive GM P/N 12346141 (Canadian P/N 10953433) or equivalent, onto the crankshaft balancer keyway in order to seal the crankshaft balancer keyway and crankshaft joints.
3. Align the keyway of the crankshaft balancer with the crankshaft balancer key.

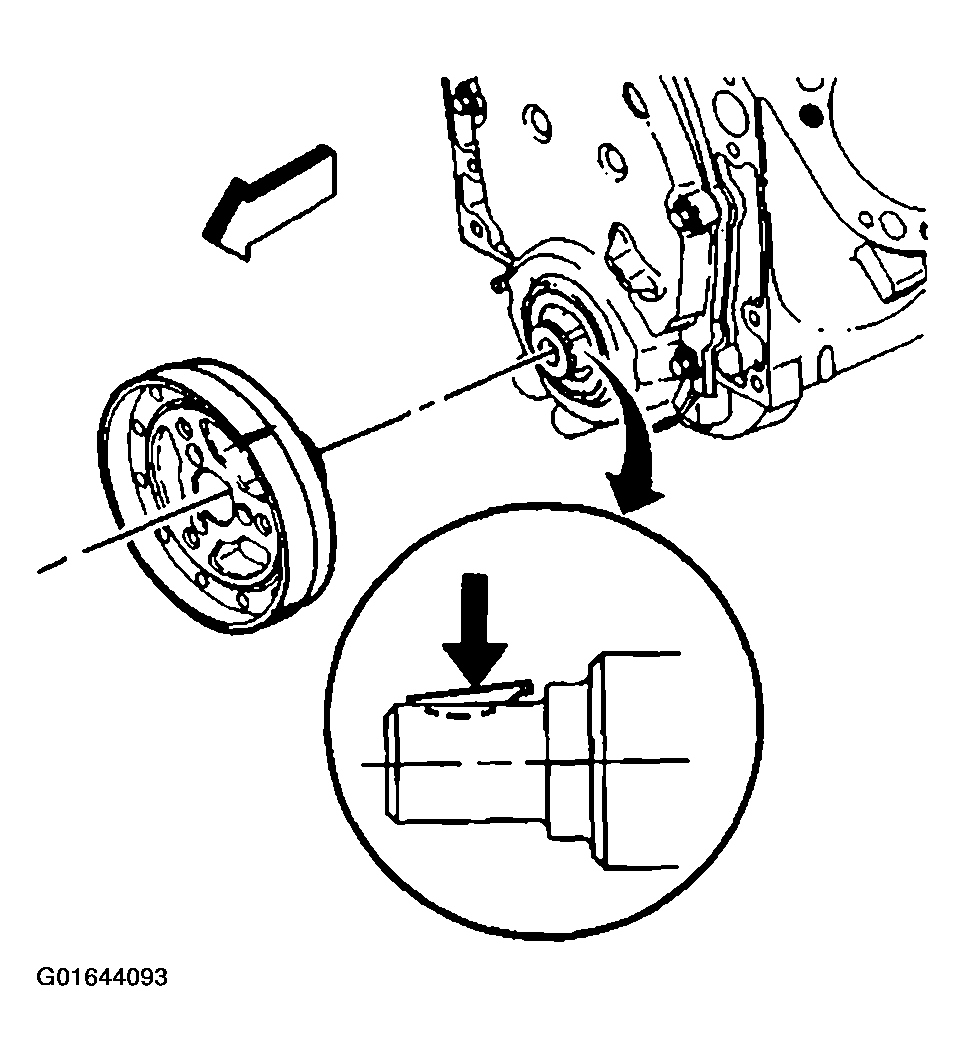

   Fig 2: Installing Crankshaft Balancer

   Courtesy of GENERAL MOTORS CORP.
4. Install the crankshaft balancer onto the end of the crankshaft.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
5. Use the J 23523-F  in order to press the crankshaft balancer onto the crankshaft.

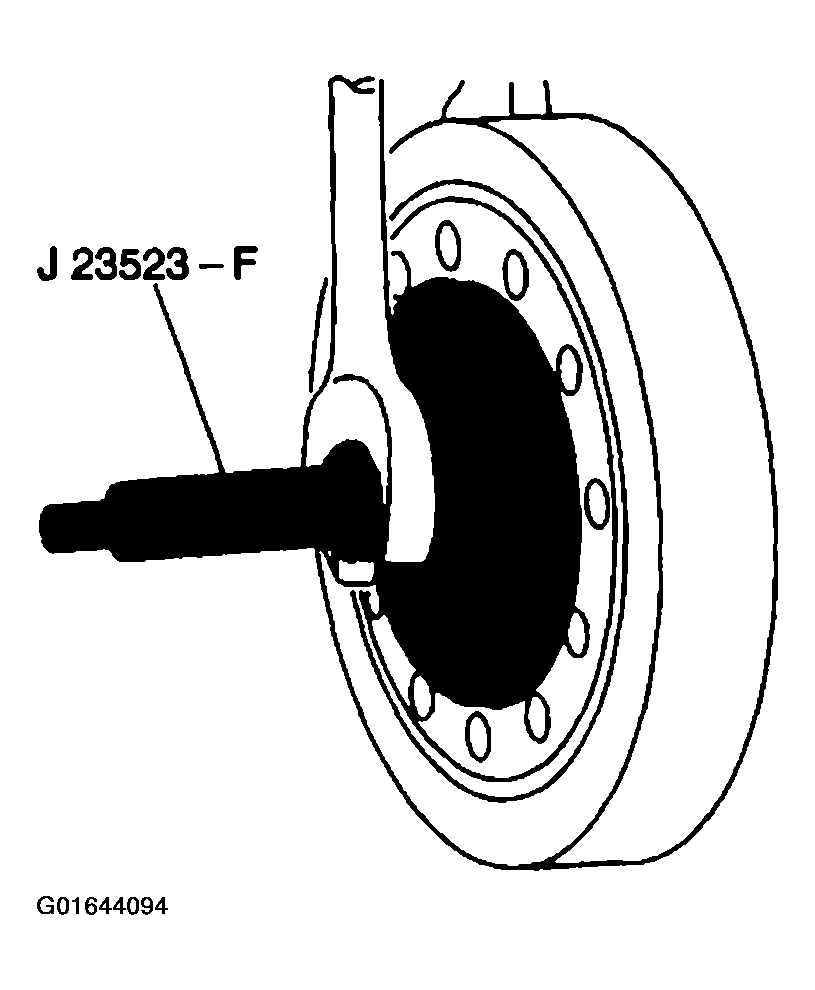

   Fig 3: Removing J 23563-F

   Courtesy of GENERAL MOTORS CORP.
   1. 5.1. Install the J 23523-F  Plate and bolts onto the front of the crankshaft balancer.

      Tighten

      Tighten the J 23523-F  plate bolts to 25 N.m (18 lb ft).

   2. 5.2. Install the J 23523-F  screw into the end for the crankshaft.
   3. 5.3. Install the J 23523-F  bearing, the washer, and the nut onto the J 23523-F  screw.
   4. 5.4. Rotate the J 23523-F  nut clockwise until the crankshaft balancer hub is completely seated against the crankshaft position sensor reluctor ring.
6. Remove the J 23523-F.
7. Install the crankshaft pulley and bolts.

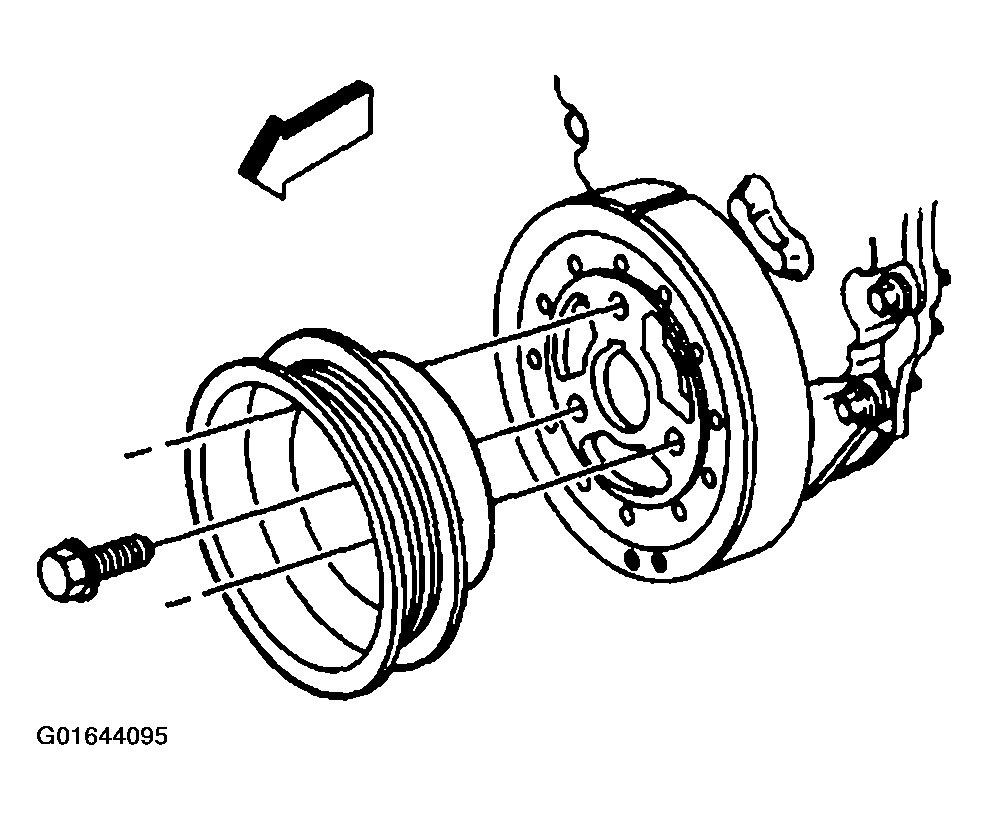

   Fig 4: Installing Crankshaft Pulley And Bolts

   Courtesy of GENERAL MOTORS CORP.

   Tighten

   Tighten the crankshaft pulley bolts to 58 N.m (43 lb ft).

8. Ensure that the crown of the crankshaft balancer washer (2) is faced away from the engine.

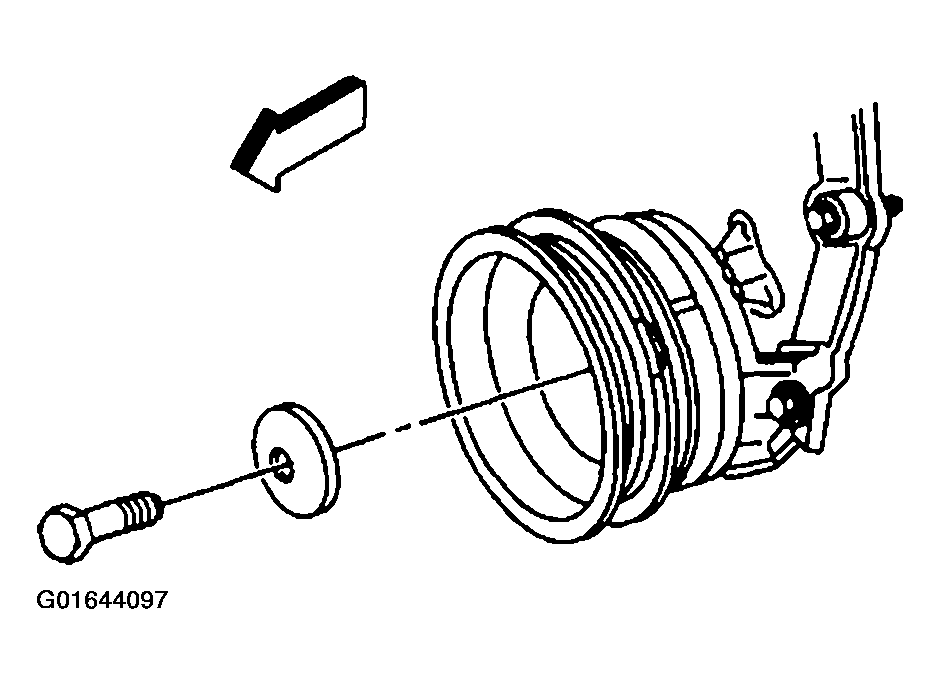

   Fig 5: Installing Crankshaft Balancer Washer And Bolt

   Courtesy of GENERAL MOTORS CORP.
9. Install the crankshaft balancer washer and the bolt.
   Fig 6: Installing Crankshaft Balancer Washer And Bolt

   Courtesy of GENERAL MOTORS CORP.

   Tighten

   Tighten the crankshaft balancer bolt to 95 N.m (70 lb ft).
