Camshaft Removal

  1. Remove the camshaft retainer bolts and retainer.

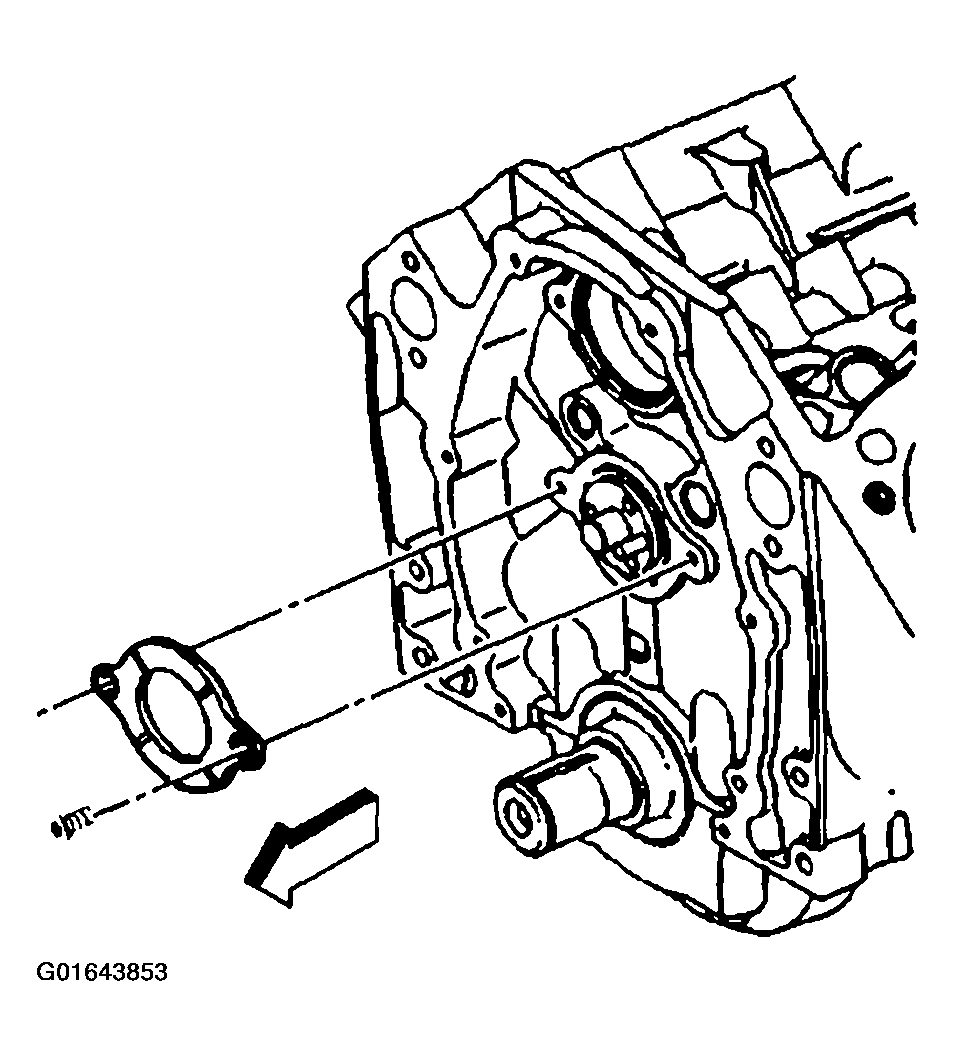

    Fig 1: Removing Camshaft Retainer Bolts And Retainer
    G01643853Courtesy of GENERAL MOTORS CORP.
    NOTE: All camshaft journals are the same diameter, so care must be used in removing or installing the camshaft to avoid damage to the camshaft bearings.
  2. Remove the engine camshaft.
    1. 2.1. Install the three 5/16-18 x 4.0 inch bolts into the engine camshaft front bolt holes.
    2. 2.2. Using the bolts as a handle, carefully rotate and pull the engine camshaft out of the camshaft bearings.
    3. 2.3. Remove the bolts from the front of the engine camshaft.

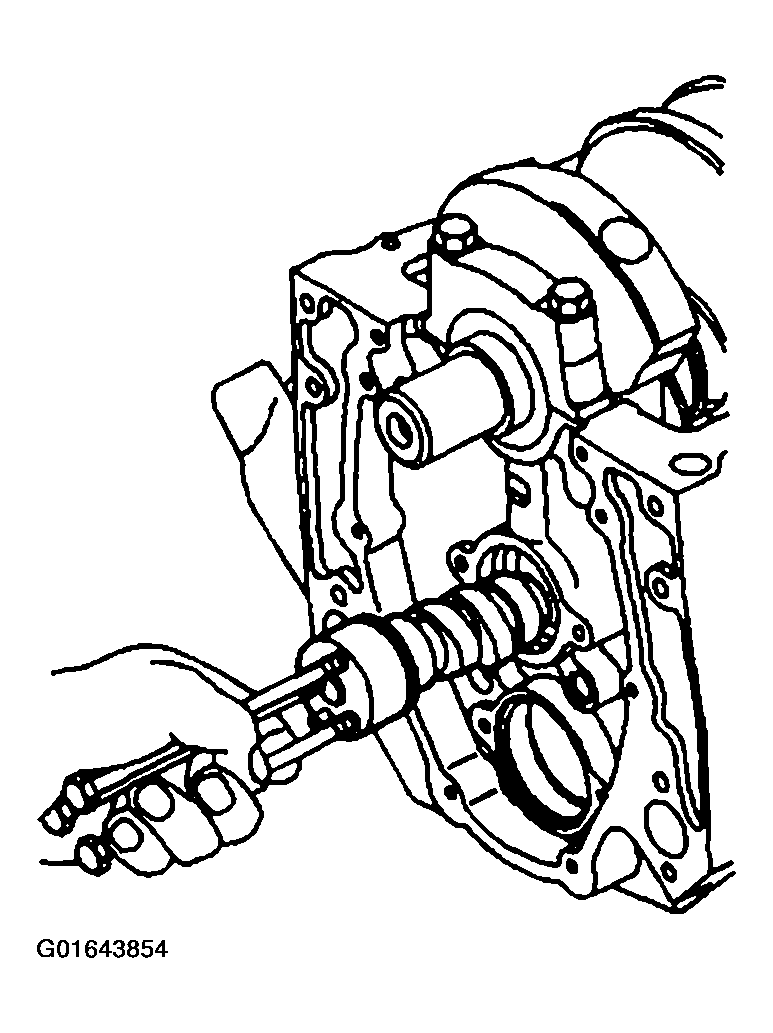

      Fig 2: Removing Bolts From Front Of Engine Camshaft
      G01643854Courtesy of GENERAL MOTORS CORP.
