Balance Shaft Bearing and/or Bushing Removal

Tools Required

• J 26941.  Bushing/Bearing Remover
• J 38834.  Balance Shaft Service Kit

1. Use the J 38834.  and the J 26941.  in order to remove the balance shaft rear bearing.

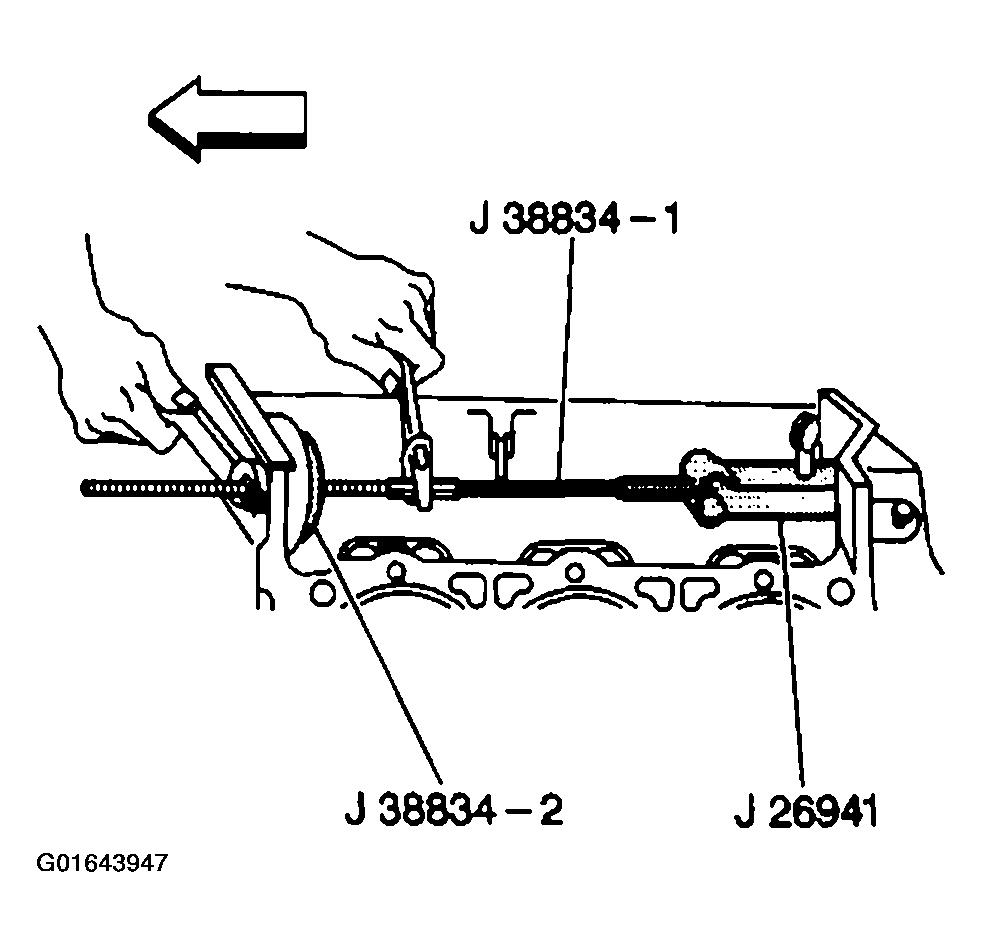

   Fig 1: Removing Balance Shaft Rear Bearing

   Courtesy of GENERAL MOTORS CORP.
   1. 1.1. Install J 26941.  legs behind the balance shaft rear bearing and secure.
   2. 1.2. Install the J 38834-1 with the short threaded end through the balance shaft bore in the front of the engine block.
   3. 1.3. Install the J 38834-1 into J 26941.
   4. 1.4. slide the J 38834-2 onto the J 38834-1  and into the balance shaft bore of the engine block.
   5. 1.5. Install the J 38834  bearing, washer, and nut onto J 38834-1.
   6. 1.6. Using a wrench secure the J 38834-1 then rotate the J 38834  nut clockwise until the balance shaft rear bearing is removed from the engine block.
   7. 1.7. Remove the J 26941  from the balance shaft rear bearing.
2. Discard the balance shaft rear bearing.
