Oil Leak Diagnosis

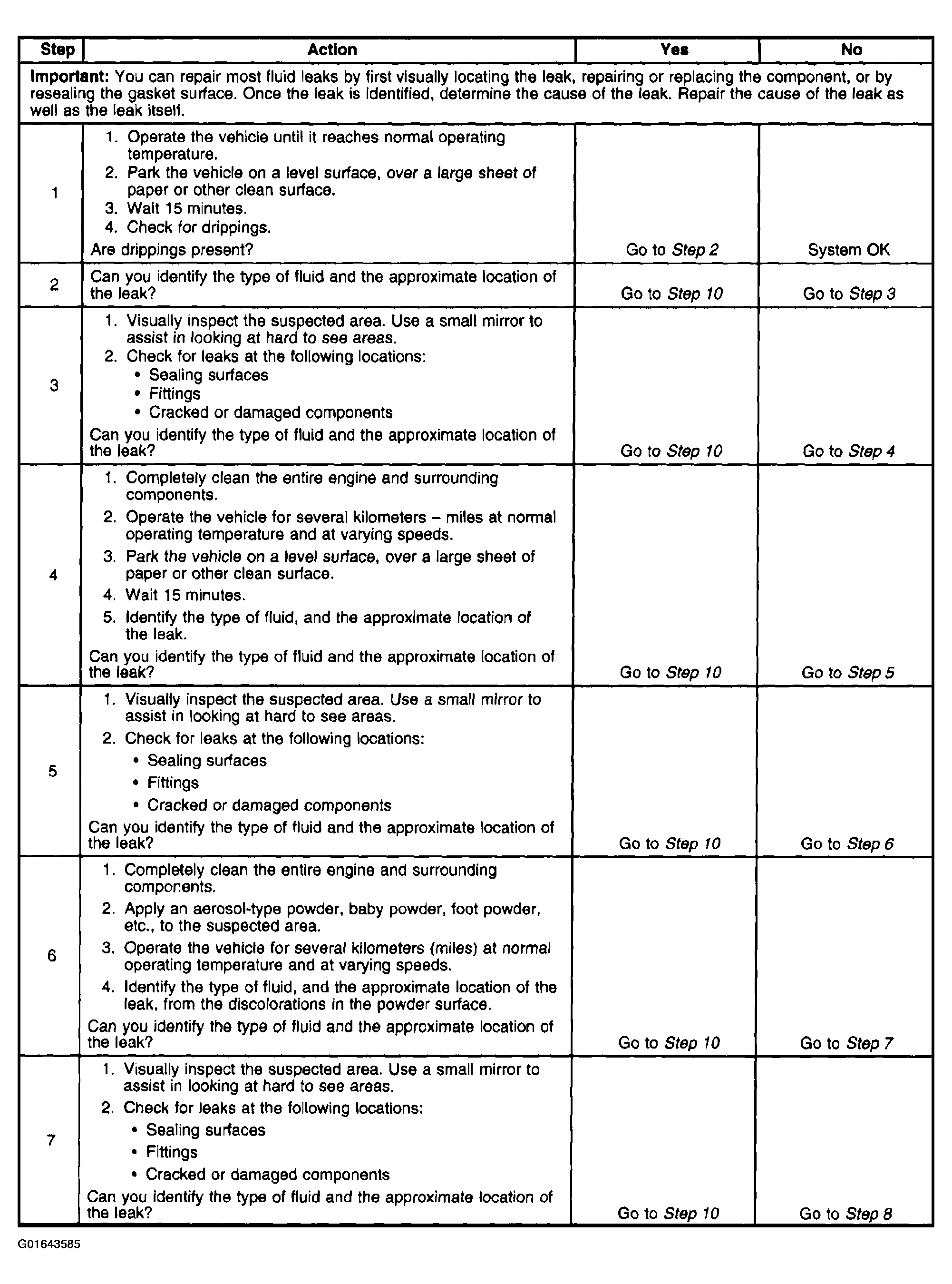

Fig 1: Diagnosis System Check - Oil Leak (1 Of 2)

G01643585

Courtesy of GENERAL MOTORS CORP.

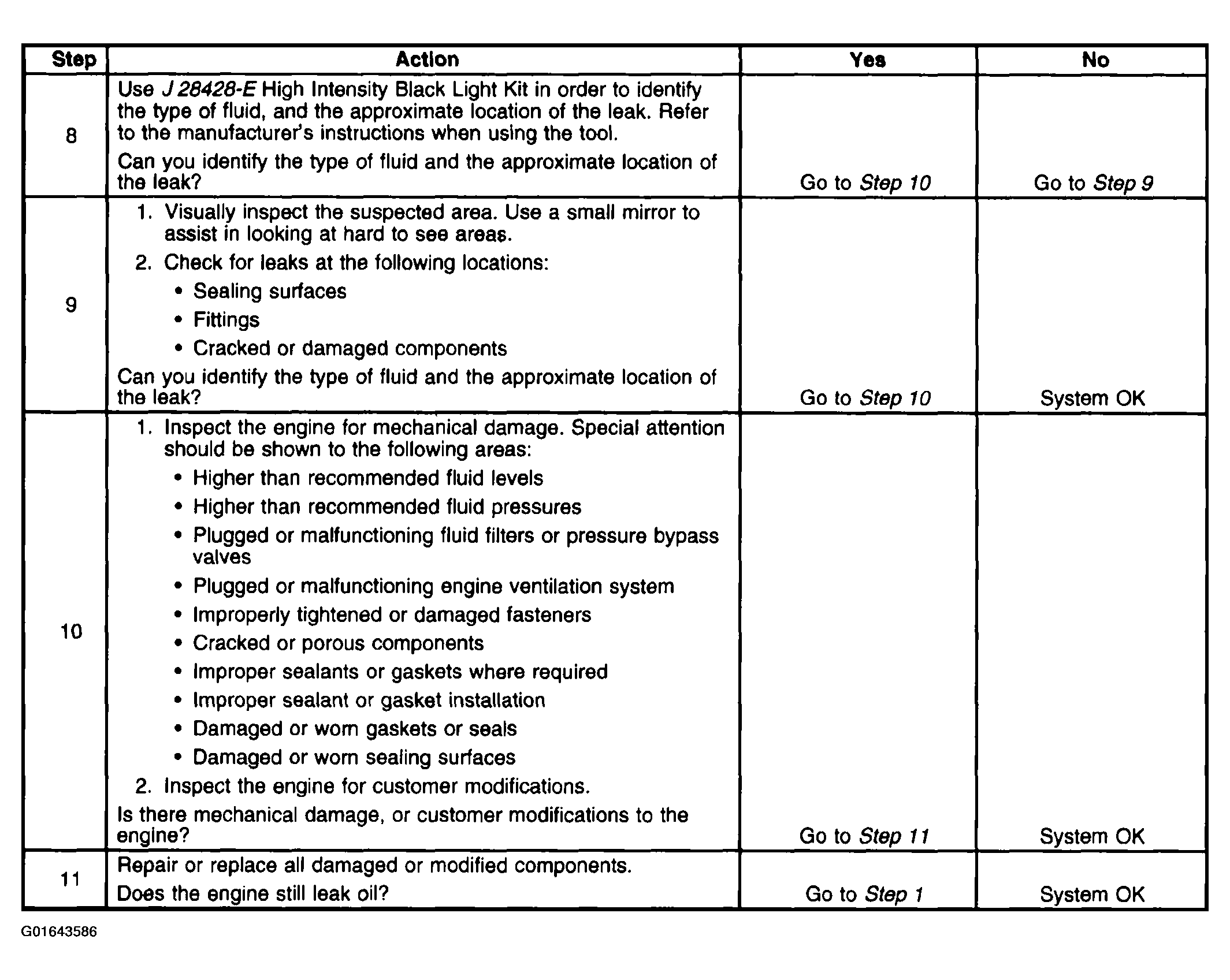

Fig 2: Diagnosis System Check - Oil Leak (2 Of 2)

G01643586

Courtesy of GENERAL MOTORS CORP.
