Engine Noise Under Load

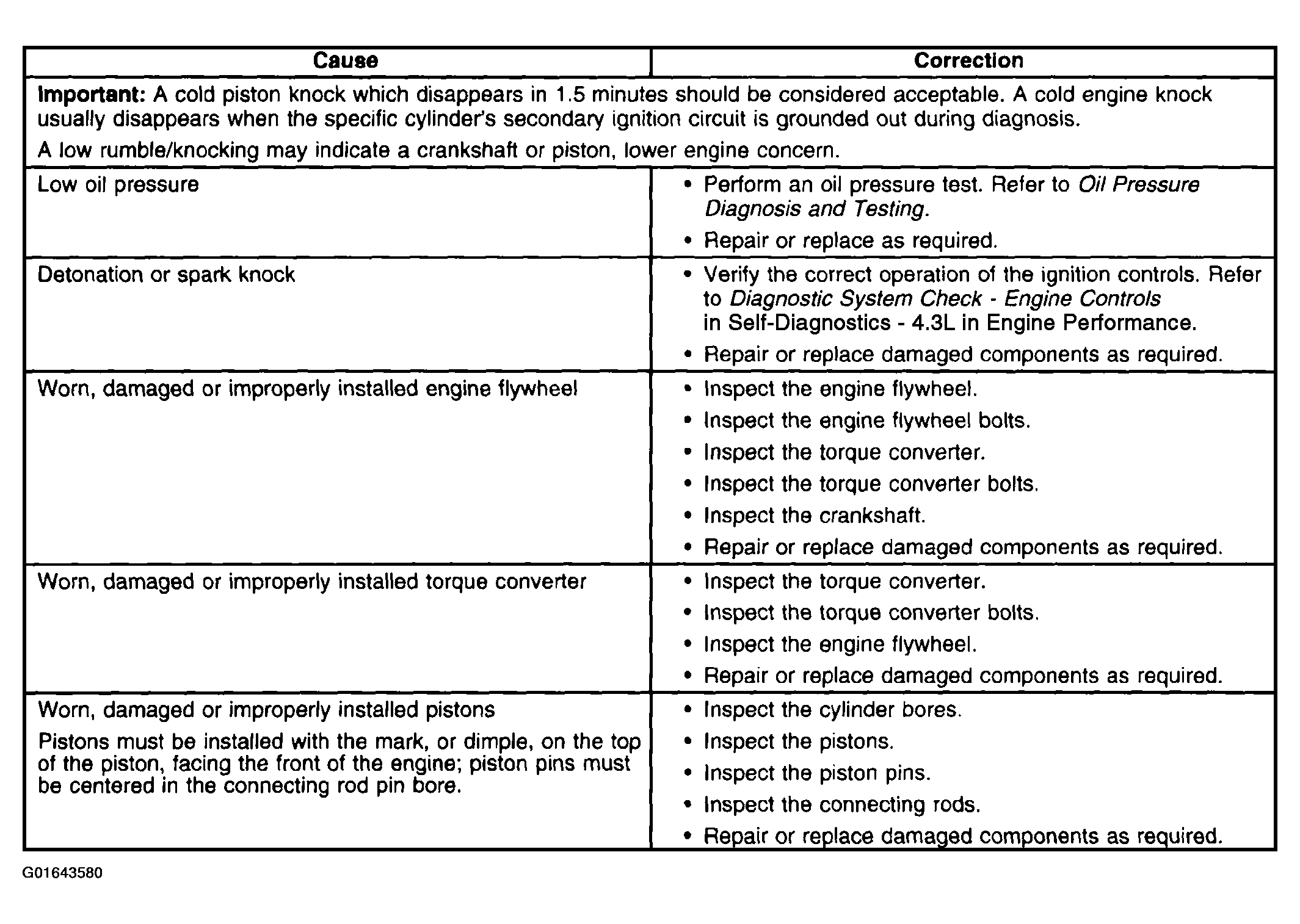

Fig 1: Engine Noise Under Load - Symptom Chart (1 Of 2)

G01643580

Courtesy of GENERAL MOTORS CORP.

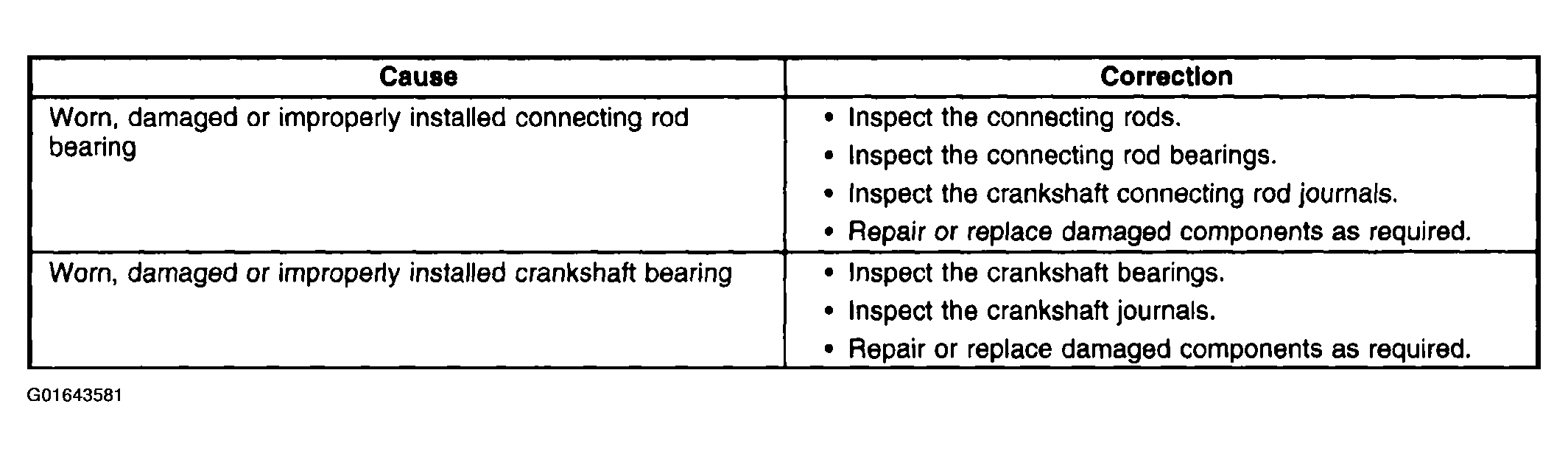

Fig 2: Engine Noise Under Load - Symptom Chart (2 Of 2)

G01643581

Courtesy of GENERAL MOTORS CORP.
