Base Engine Misfire without Internal Engine Noises

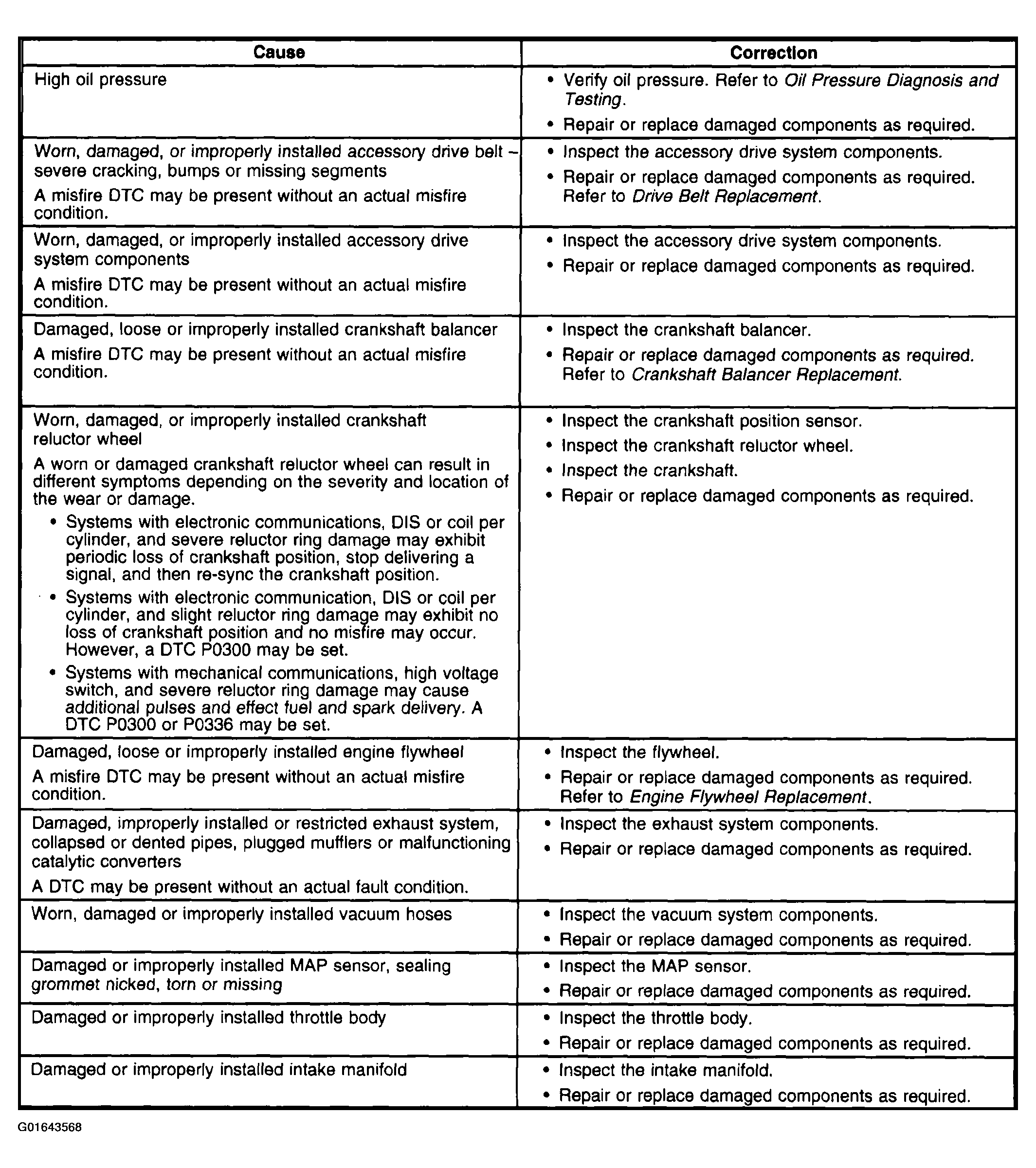

Fig 1: Base Engine Misfire Without Internal Engine Noises - Symptom Chart (1 Of 2)
G01643568Courtesy of GENERAL MOTORS CORP.

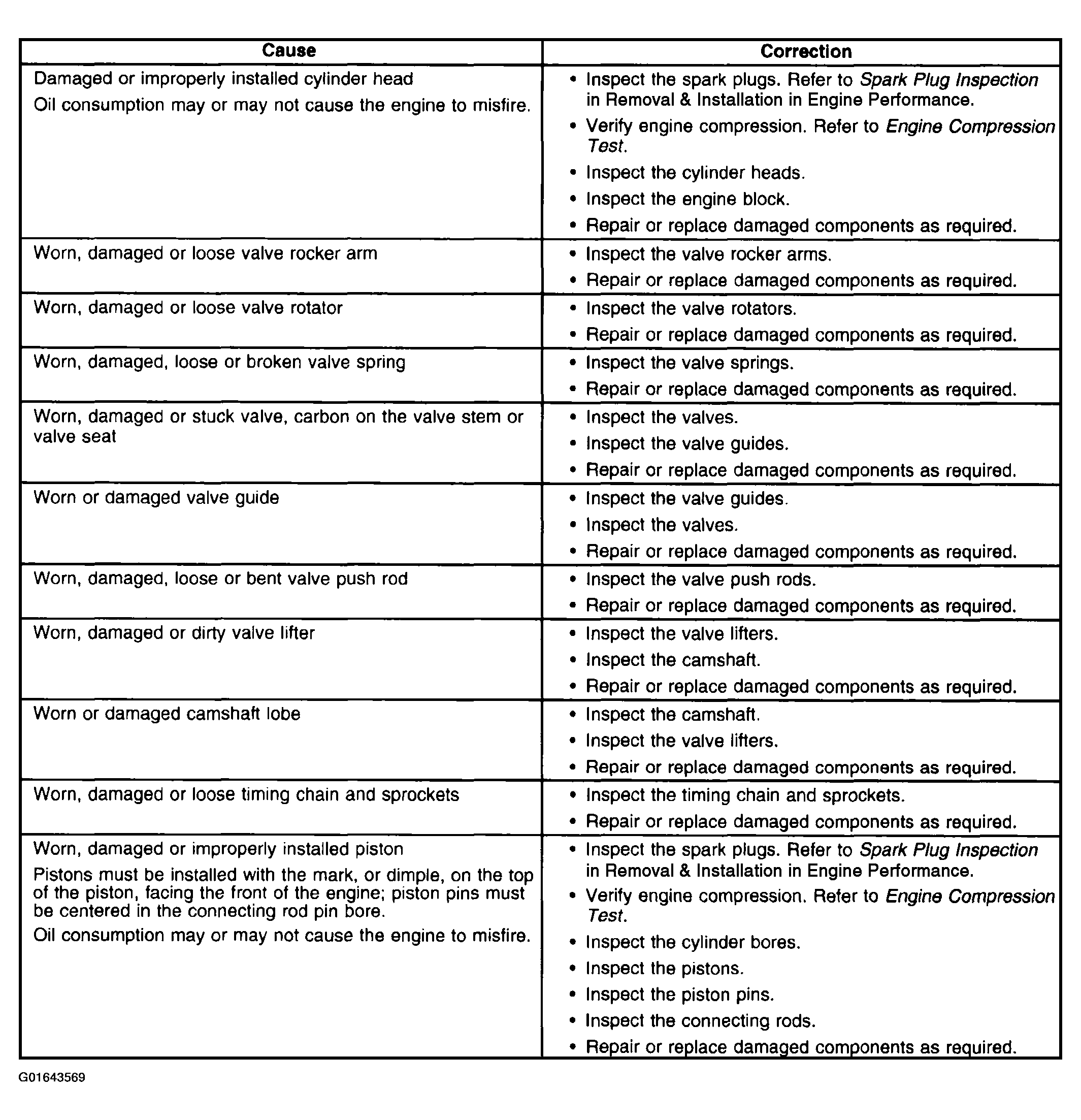

Fig 2: Base Engine Misfire Without Internal Engine Noises - Symptom Chart (2 Of 2)
G01643569Courtesy of GENERAL MOTORS CORP.
