Base Engine Misfire with Excessive Oil Consumption

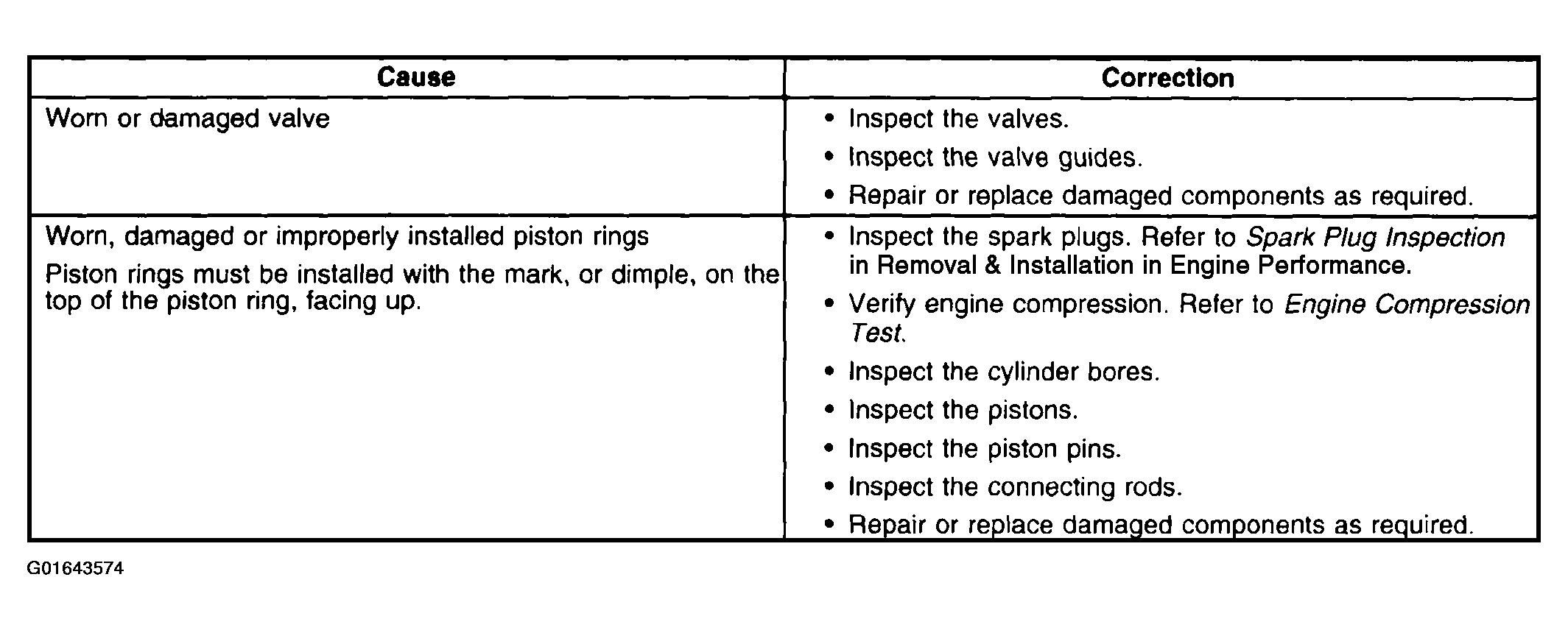

Fig 1: Base Engine Misfire With Excessive Oil Consumption - Symptom Chart

G01643574

Courtesy of GENERAL MOTORS CORP.
