Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical - 4.3L >> Diagnostic Information and Procedures >> Base Engine Misfire with Abnormal Internal Lower Engine Noises

Base Engine Misfire with Abnormal Internal Lower Engine Noises

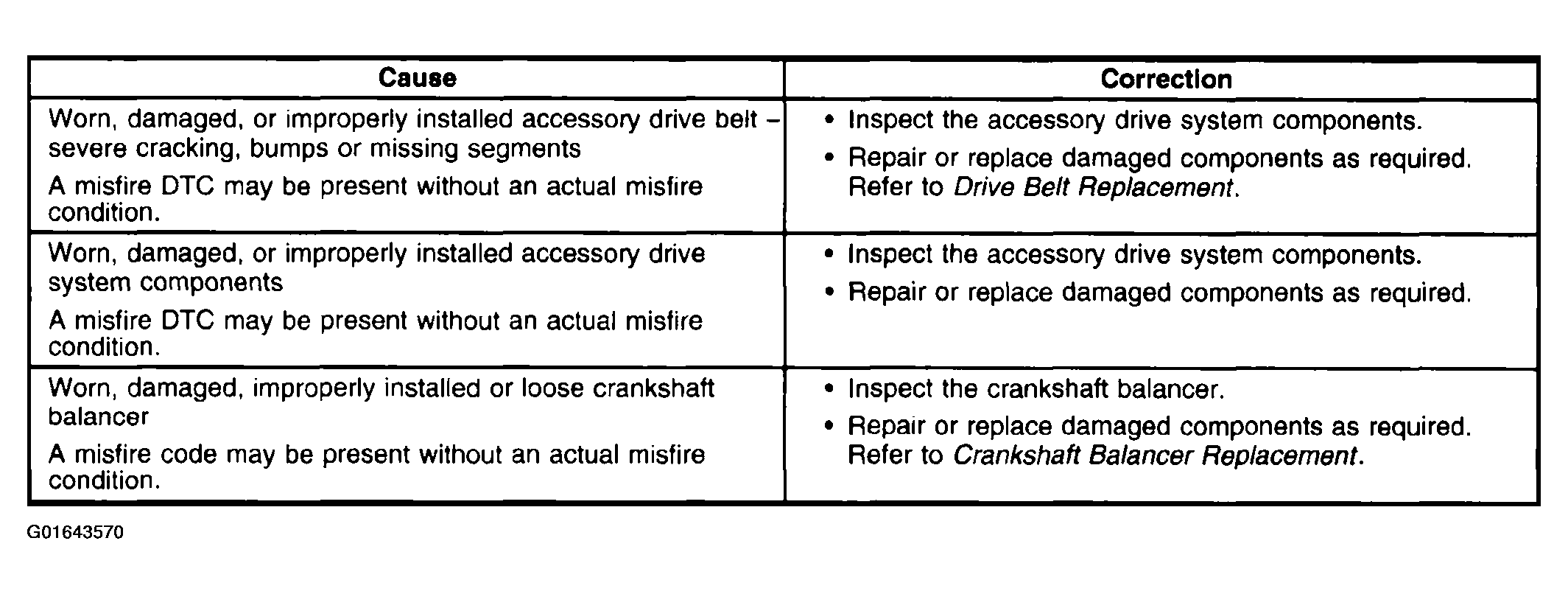

Fig 1: Base Engine Misfire With Abnormal Internal Lower Engine Noises - Symptom Chart (1 Of 2)
G01643570Courtesy of GENERAL MOTORS CORP.

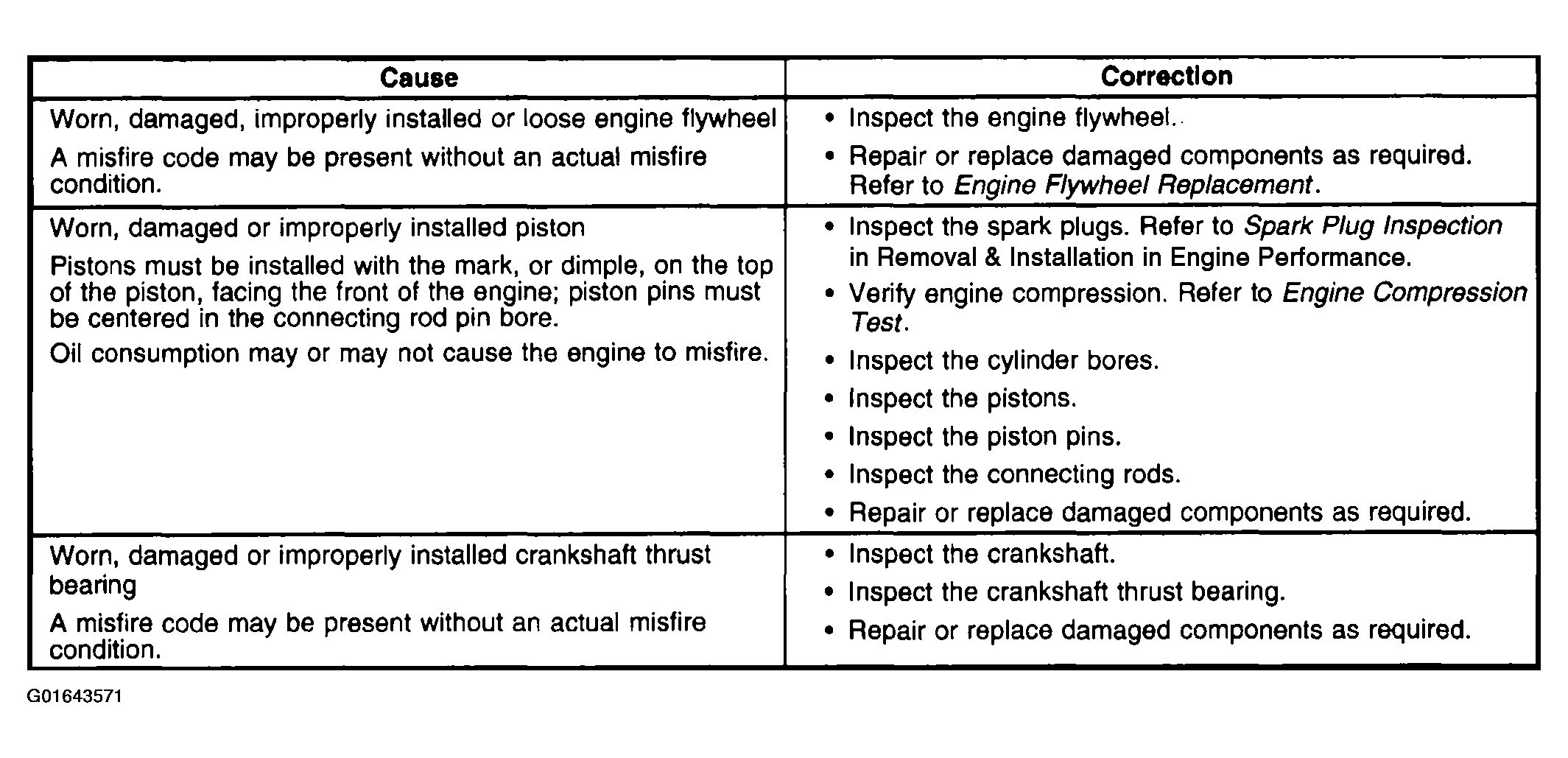

Fig 2: Base Engine Misfire With Abnormal Internal Lower Engine Noises - Symptom Chart (2 Of 2)
G01643571Courtesy of GENERAL MOTORS CORP.
