Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Exhaust System >> Diagnostic Information and Procedures >> Exhaust Leakage

Exhaust Leakage

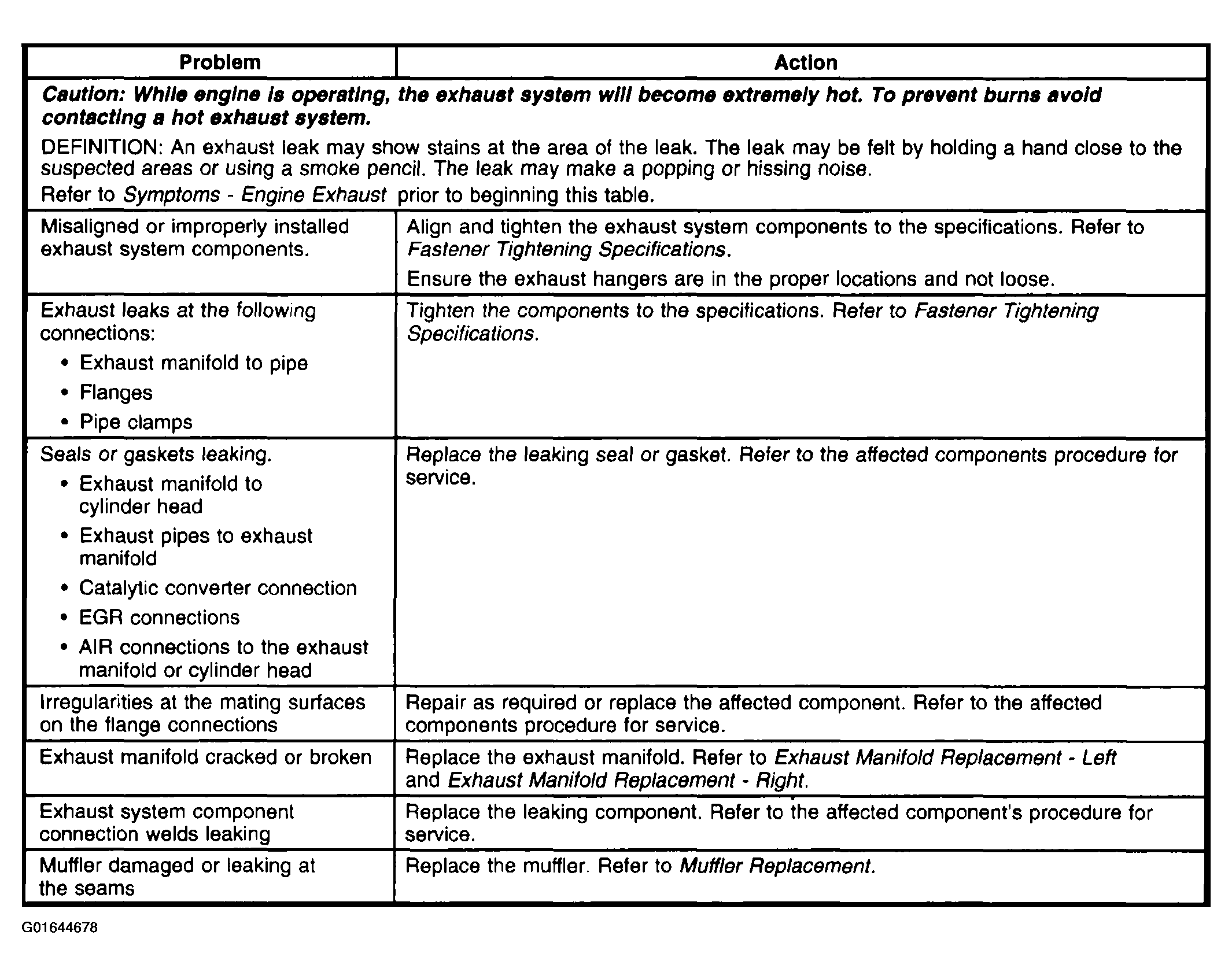

Fig 1: Exhaust Leakage - Diagnostic Procedure

G01644678

Courtesy of GENERAL MOTORS CORP.
