Installation Procedure

  1. Install the radiator inlet hose to the thermostat housing.
  2. Using the J 38185  , reposition the radiator inlet hose clamp to the thermostat housing.
  3. Install the radiator inlet hose to the radiator.
  4. Using the J 38185  , reposition the radiator inlet hose clamp to the radiator.
  5. Install the air cleaner assembly. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION in Engine Controls.
  6. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

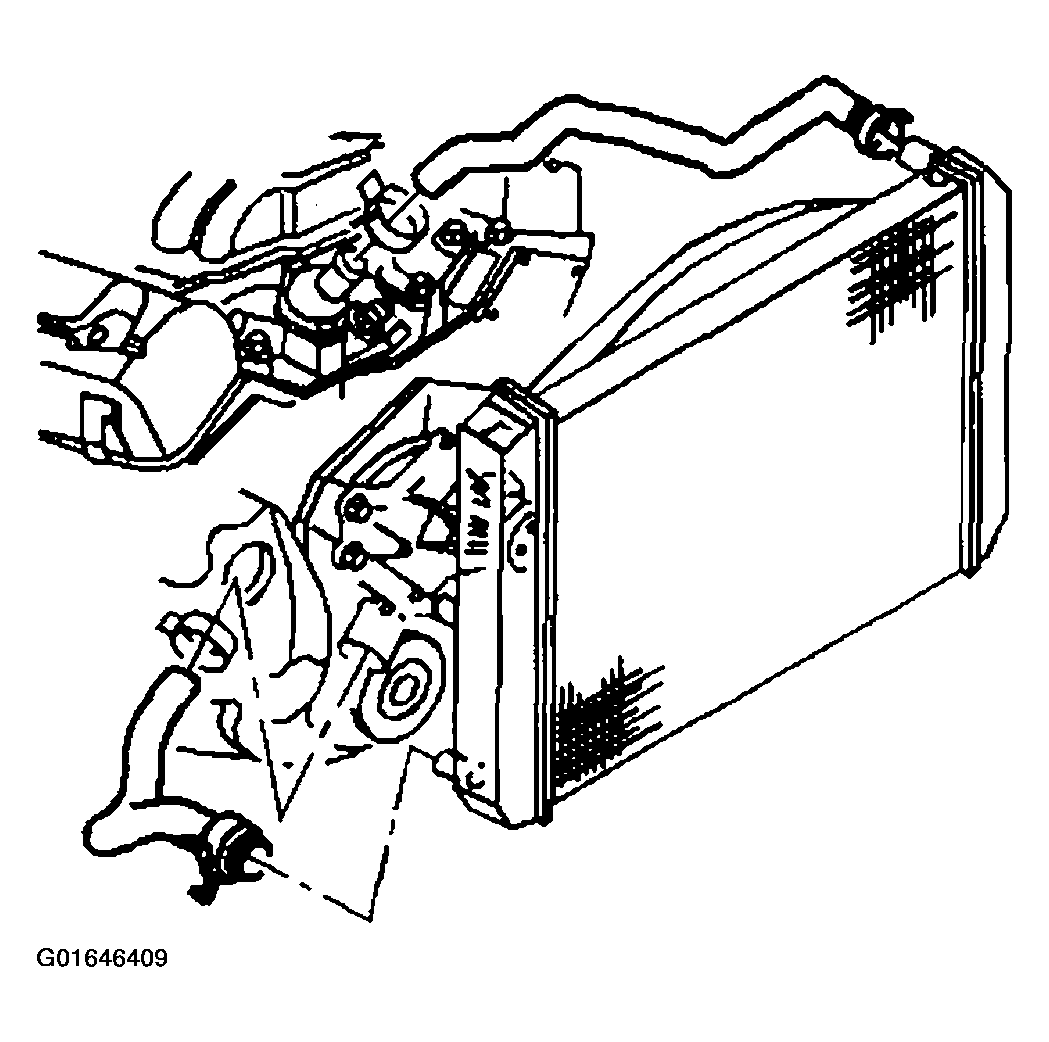

    Fig 1: Locating Radiator Hoses
    G01646409Courtesy of GENERAL MOTORS CORP.
