Removal Procedure

  1. Remove the air cleaner assembly. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION in Engine Controls.

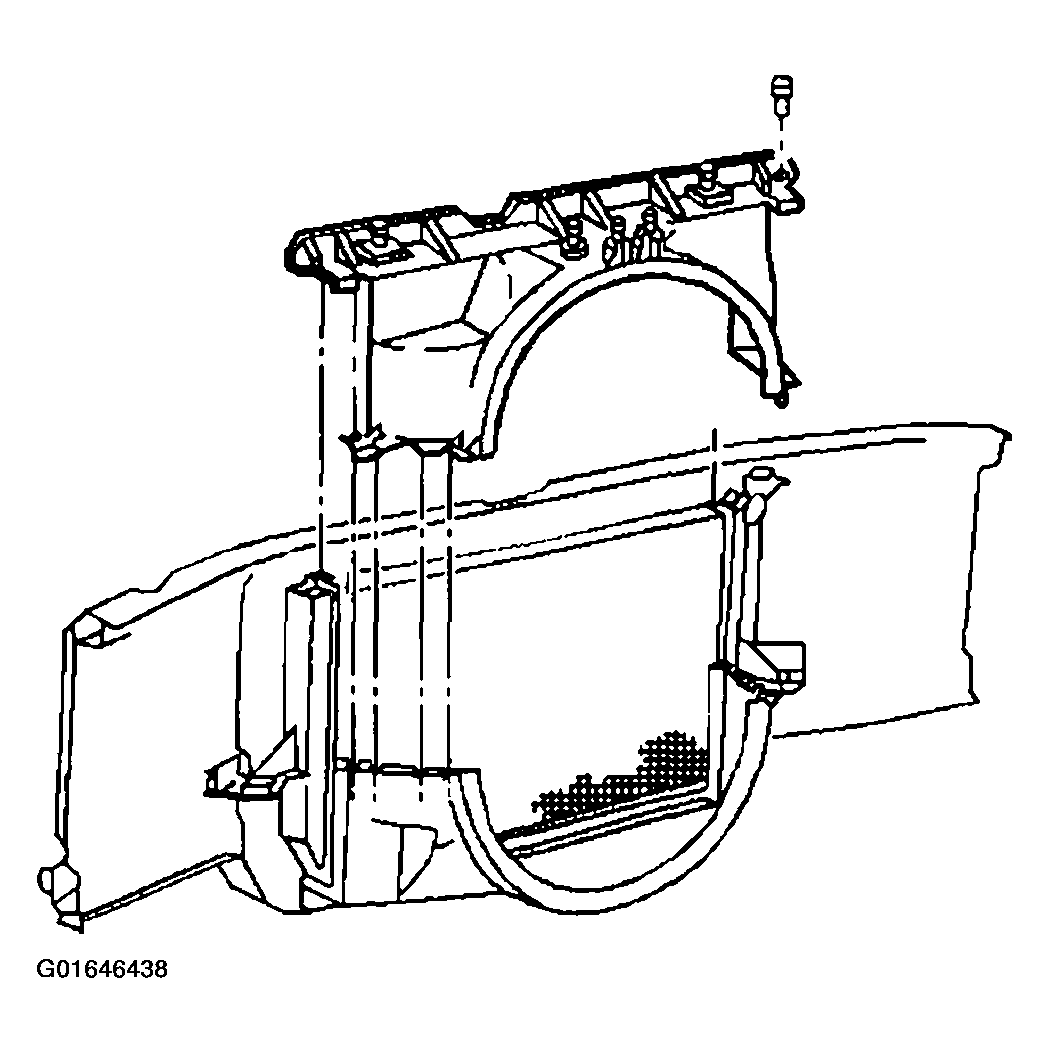

    Fig 1: Removing Upper Fan Shroud
    G01646438Courtesy of GENERAL MOTORS CORP.
  2. Remove the upper fan shroud bolts.
  3. Remove the upper fan shroud.
