Installation Procedure

  1. Install the upper fan shroud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the upper shroud bolts.

    Tighten

    Tighten the bolts to 15 N.m (11 lb ft).

  3. Install the air cleaner assembly. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION in Engine Controls.

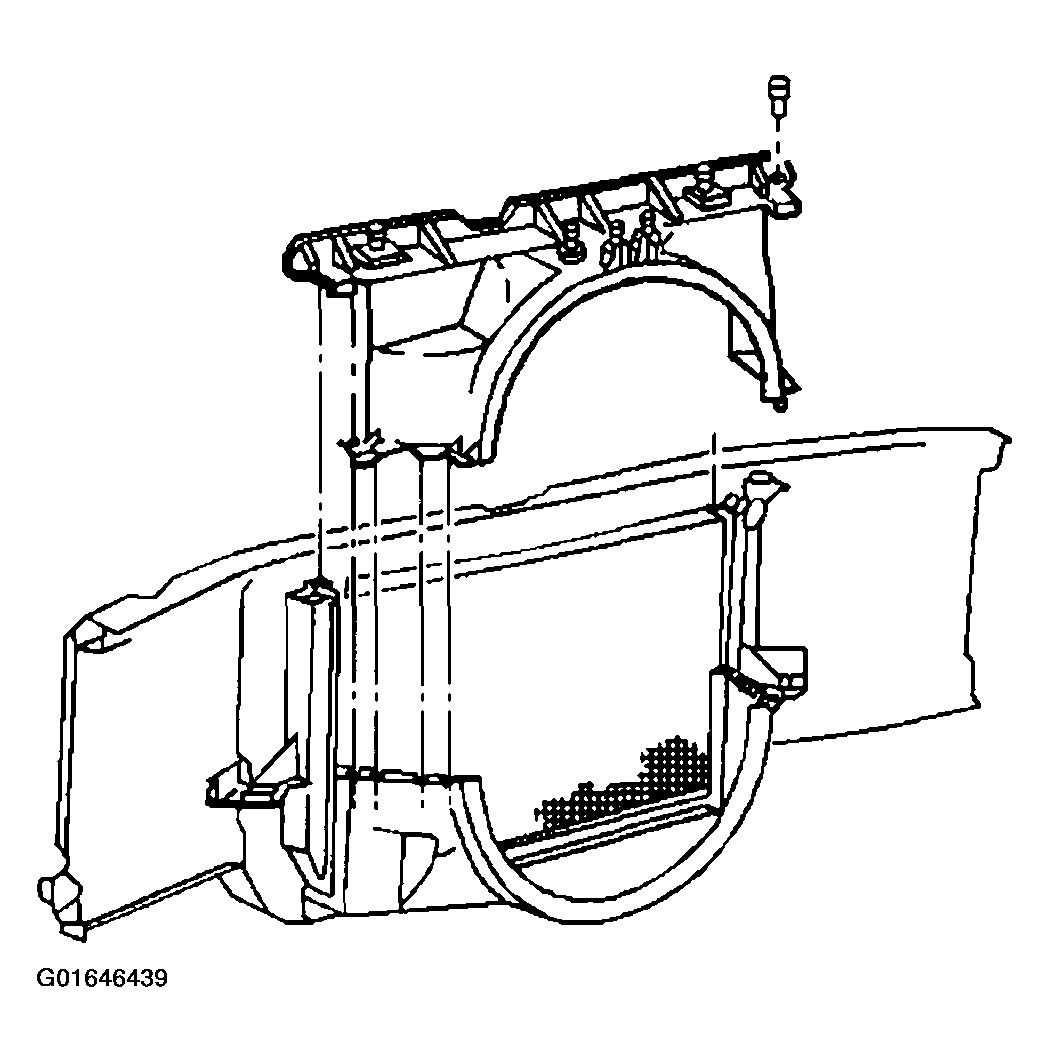

    Fig 1: Installing Upper Fan Shroud
    G01646439Courtesy of GENERAL MOTORS CORP.
