Removal Procedure

  1. Remove the air cleaner assembly. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION in Engine Controls.
  2. Remove the upper fan shroud bolts.

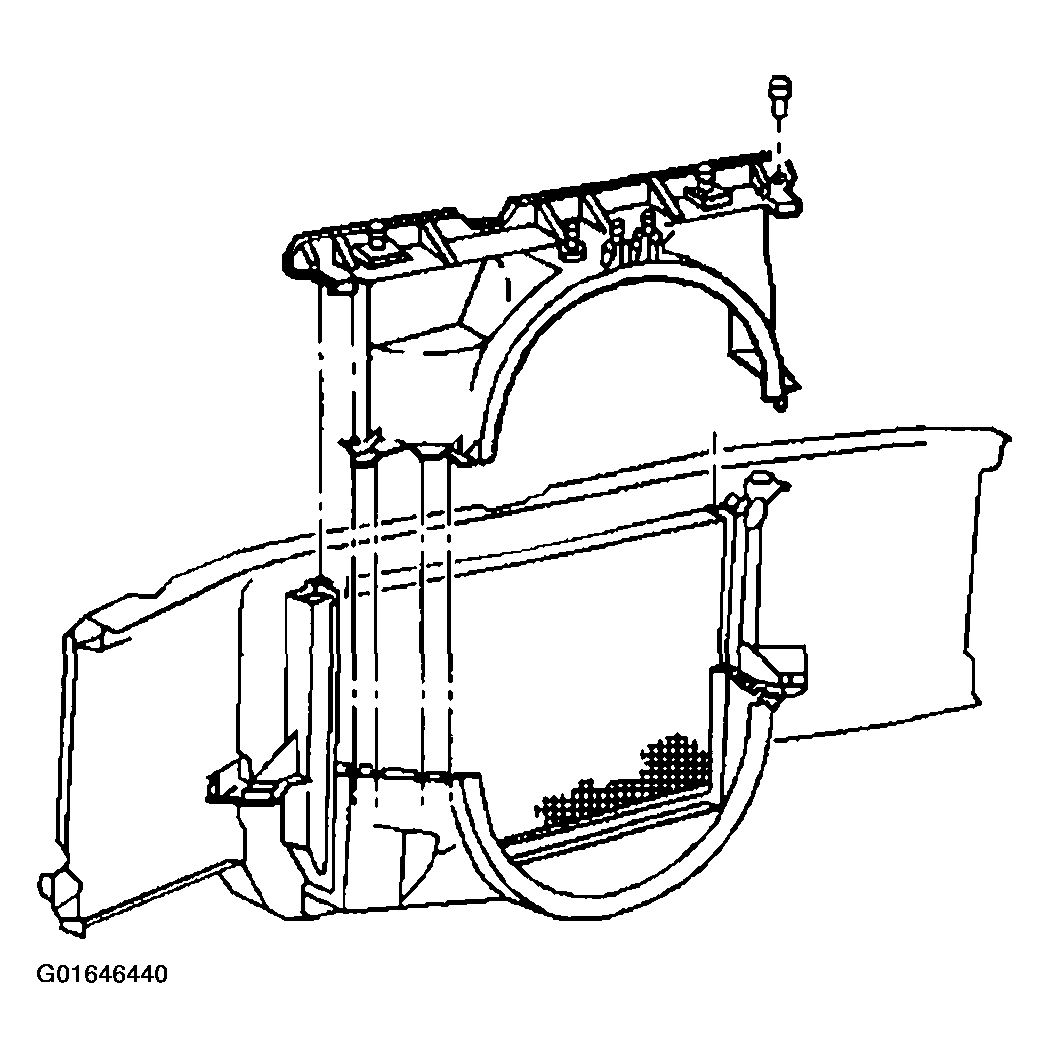

    Fig 1: View Of Upper & Lower Fan Shroud
    G01646440Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper fan shroud.
  4. Release the lower fan shroud clips.
  5. Remove the lower fan shroud.
