Installation Procedure

  1. Install the fan blade to the fan clutch.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the four bolts retaining the fan blade to the fan clutch.

    Tighten

    Tighten the bolts to 33 N.m (24 lb ft).

  3. Install the fan clutch assembly using the J 46406  in a counter clockwise direction.

    Tighten

    Tighten the fan clutch assembly to 56 N.m (41 lb ft).

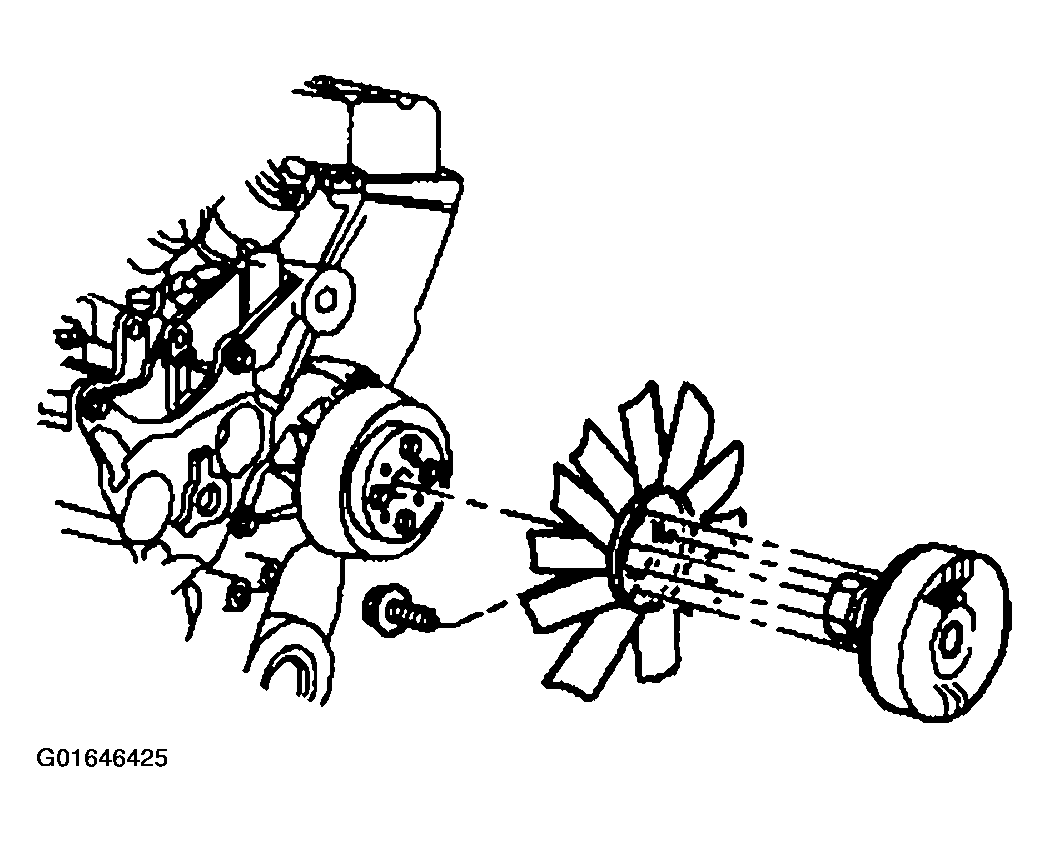

    Fig 1: Installing Fan Clutch Assembly Into Vehicle
    G01646425Courtesy of GENERAL MOTORS CORP.
  4. Install the upper fan shroud. Refer to FAN SHROUD REPLACEMENT - UPPER .
