Installation Procedure

  1. Install the fan blade to the fan clutch.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the four bolts retaining the fan blade to the fan clutch.

    Tighten

    Tighten the bolts to 33 N.m (24 lb ft).

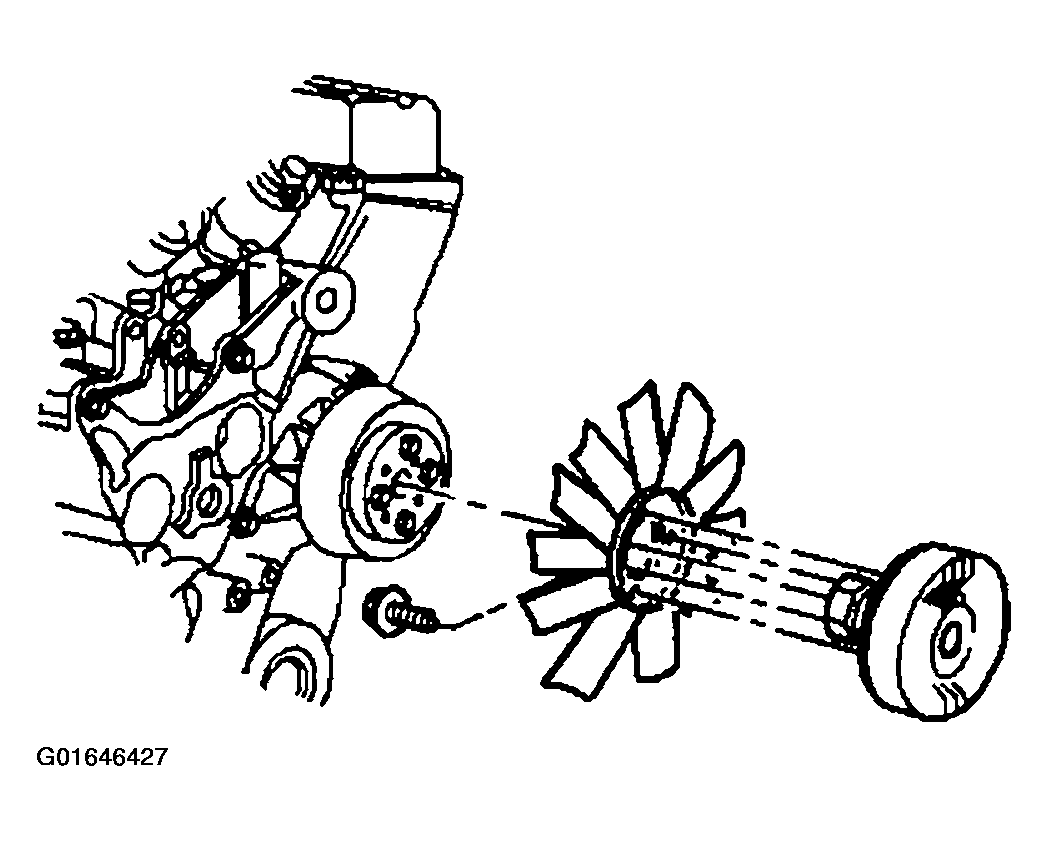

    Fig 1: Installing Fan Blade To Fan Clutch
    G01646427Courtesy of GENERAL MOTORS CORP.
  3. Install the fan clutch assembly using the J 46406  in a counter clockwise direction.

    Tighten

    Tighten the fan clutch to 56 N.m (41 lb ft).

  4. Install the upper fan shroud. Refer to FAN SHROUD REPLACEMENT - UPPER .
