Removal Procedure

  1. Reposition the coolant recovery hose clamp from the coolant recovery reservoirs.
  2. Remove the coolant recovery hose from the coolant recovery reservoirs.
  3. Remove the push pin retainers.

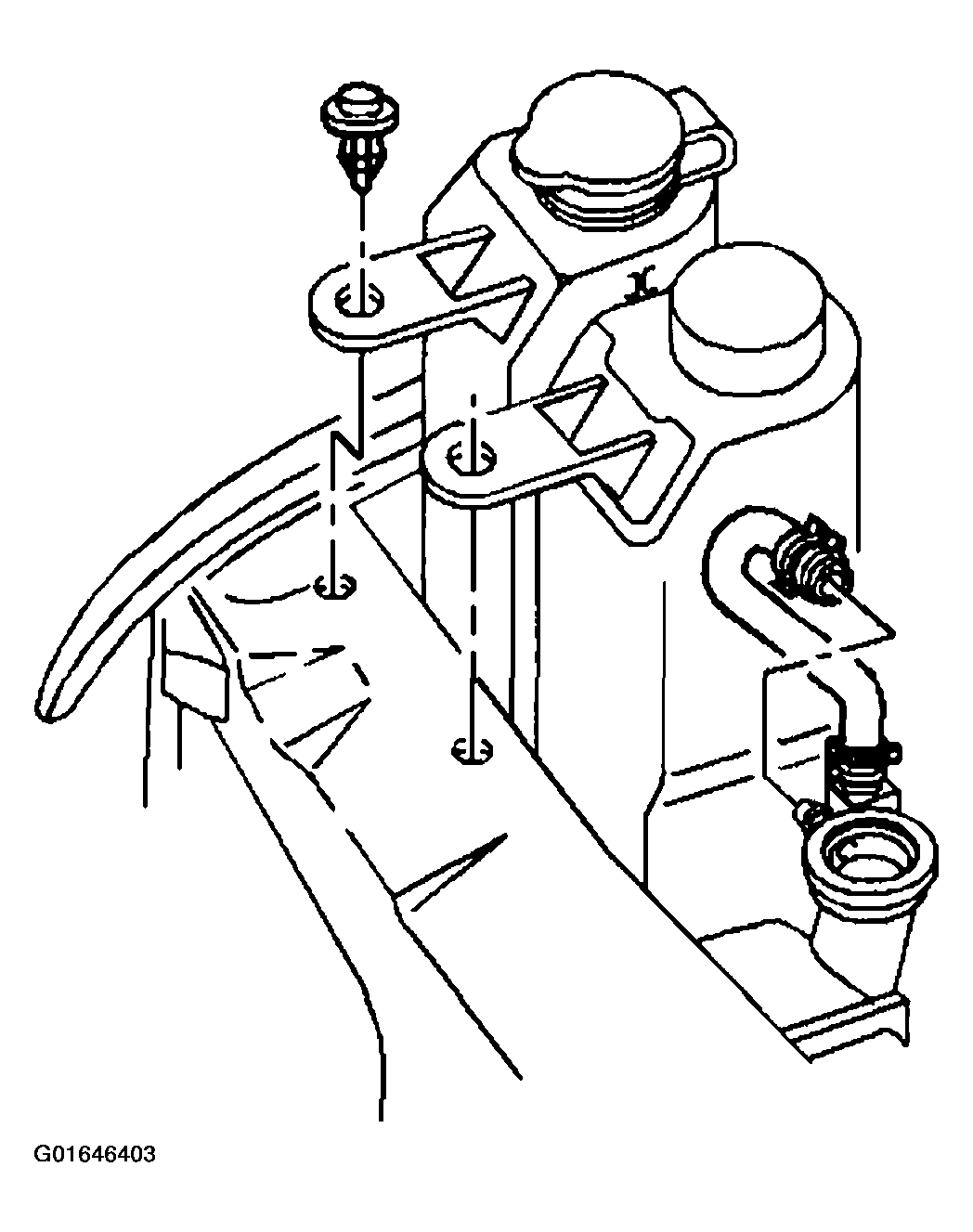

    Fig 1: Removing Coolant Recovery Hose From Coolant Recovery Reservoirs
    G01646403Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors from the windshield washer pumps.
  5. Remove the windshield washer hoses from the windshield washer pumps.

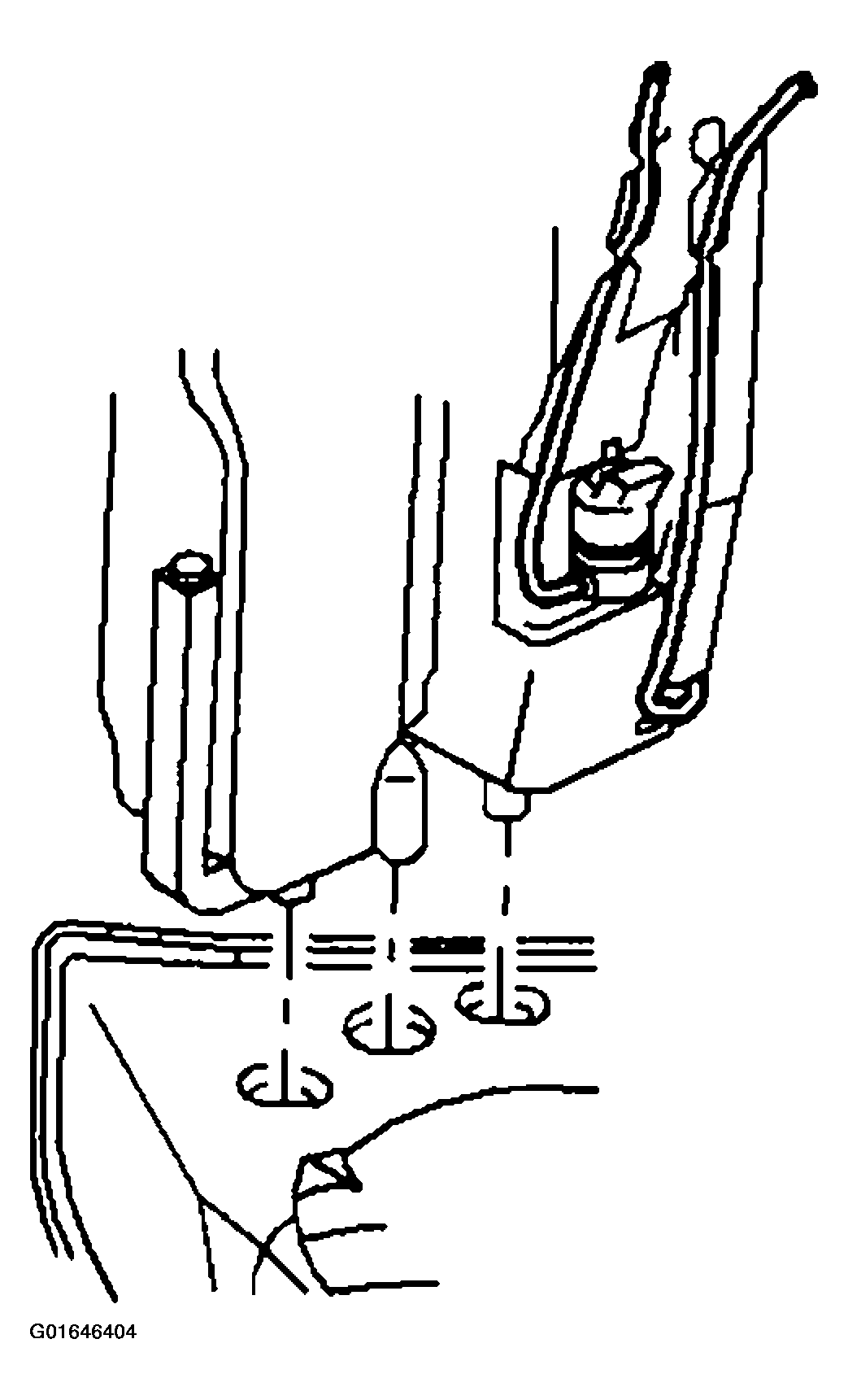

    Fig 2: Locating Windshield Washer Pump
    G01646404Courtesy of GENERAL MOTORS CORP.
  6. Remove the coolant recovery reservoir and windshield washer assembly.
  7. If replacing, separate the 2 reservoirs.
  8. Drain the coolant in the reservoir.

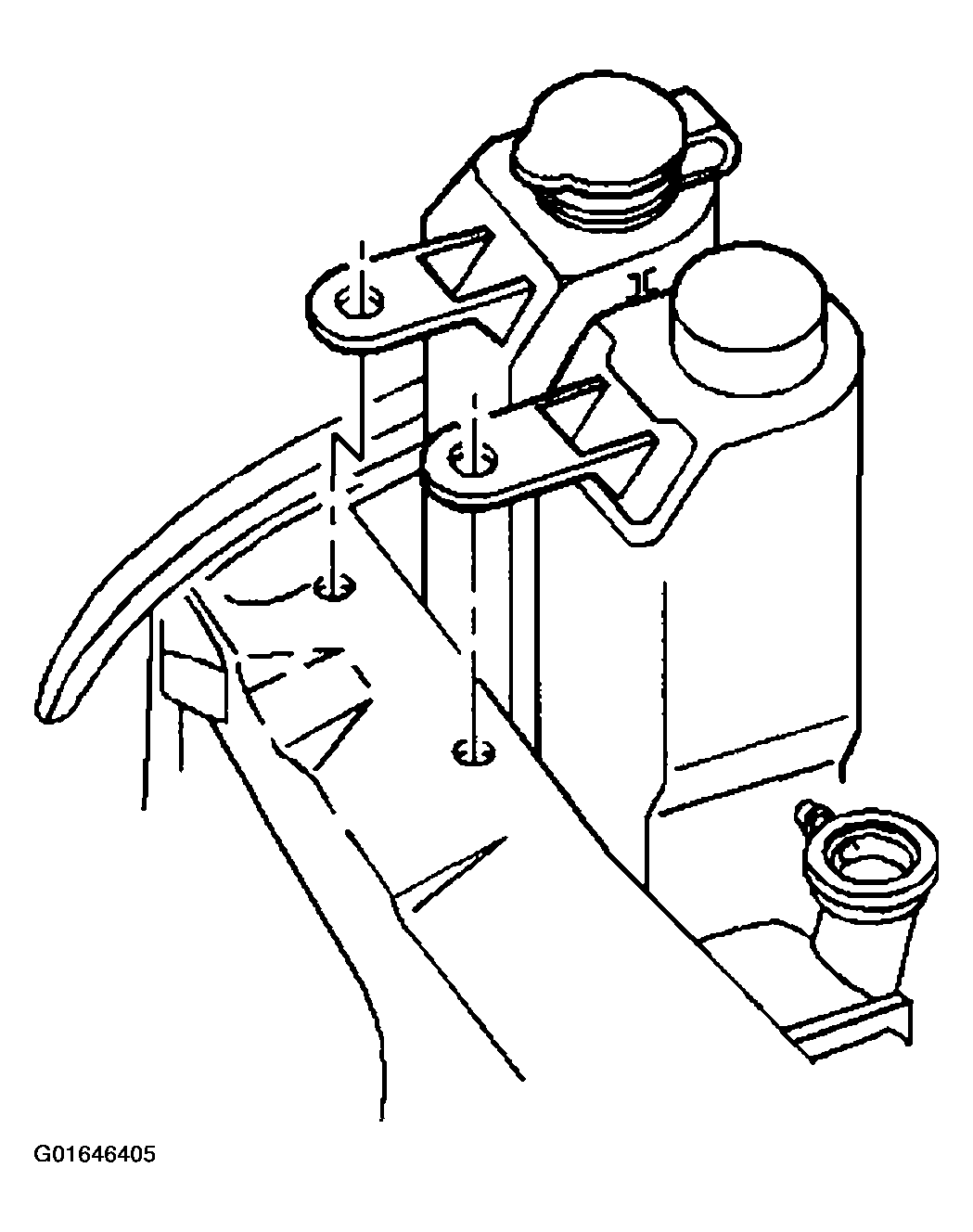

    Fig 3: Removing Coolant Recovery Reservoir And Windshield Washer Assembly
    G01646405Courtesy of GENERAL MOTORS CORP.
