Installation Procedure

  1. Connect the electrical connectors to the windshield washer pumps.
  2. Install the windshield washer hoses to the windshield washer pumps.

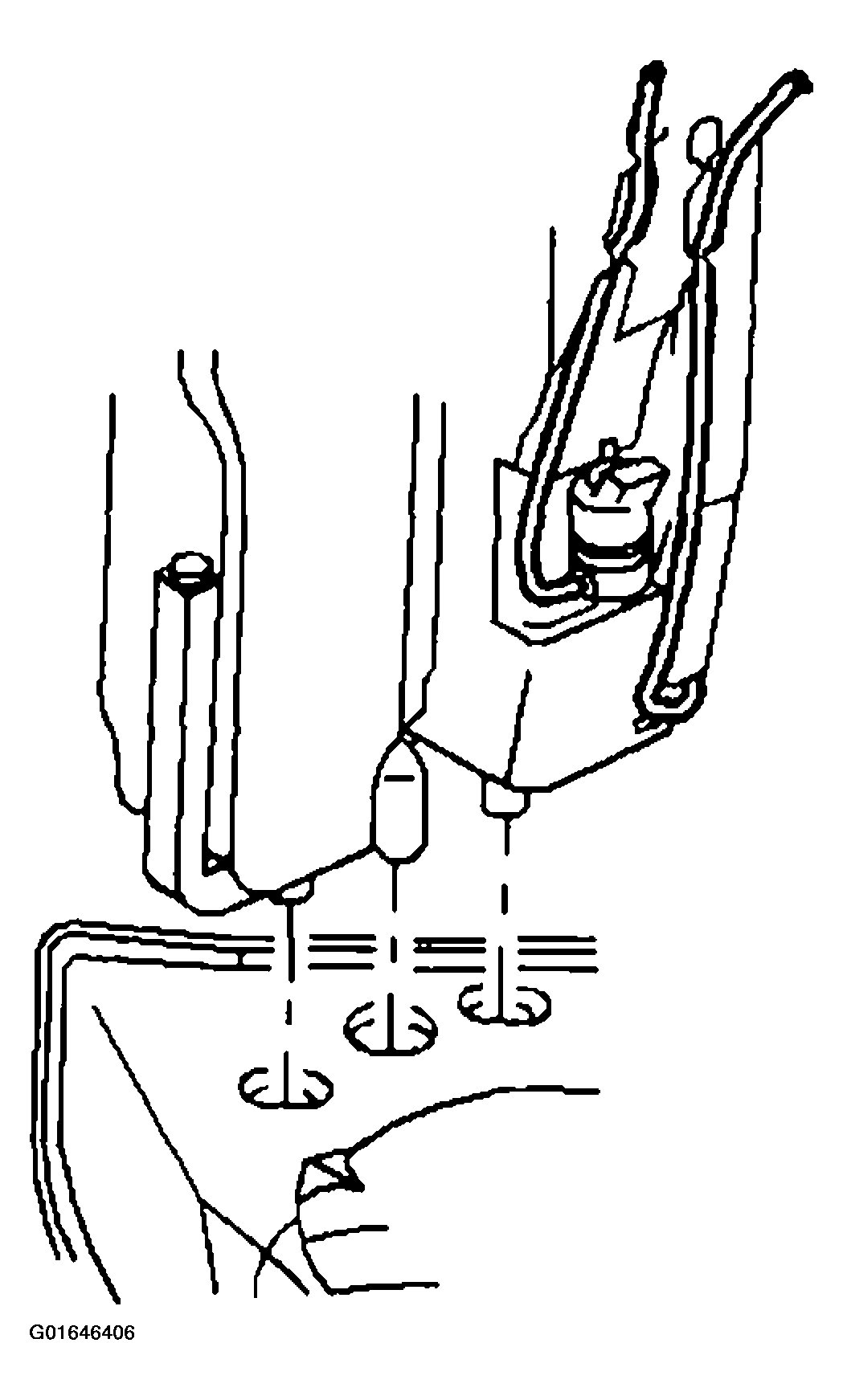

    Fig 1: Locating Windshield Washer Pump
    G01646406Courtesy of GENERAL MOTORS CORP.
  3. Install the coolant recovery reservoir and windshield washer assembly.
  4. Install the push pin retainers.
  5. Reposition the coolant recovery hose clamp to the coolant recovery reservoirs.
  6. Refill the coolant recovery reservoir.

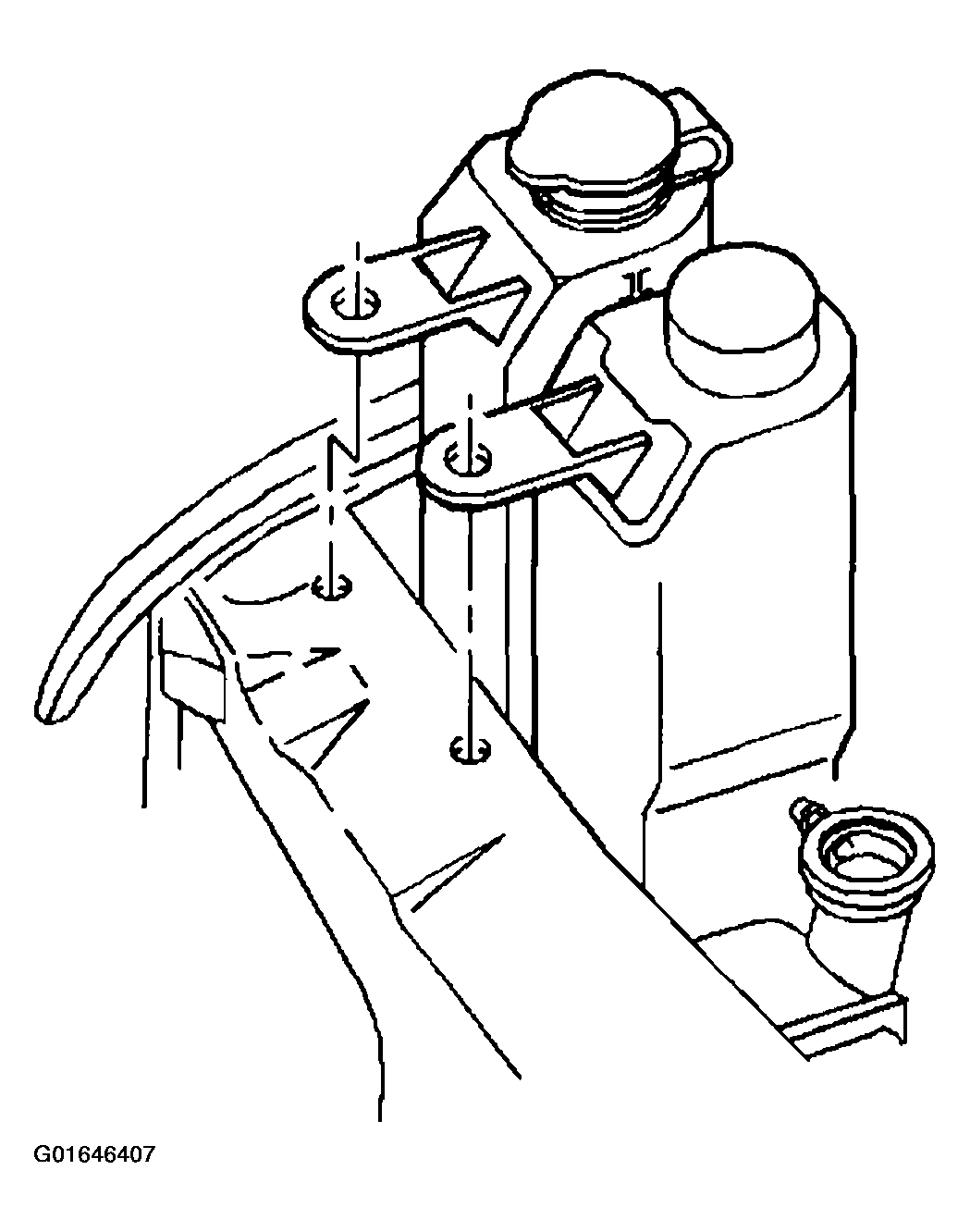

    Fig 2: Installing Coolant Recovery Reservoir And Windshield Washer Assembly
    G01646407Courtesy of GENERAL MOTORS CORP.
