Loss of Coolant

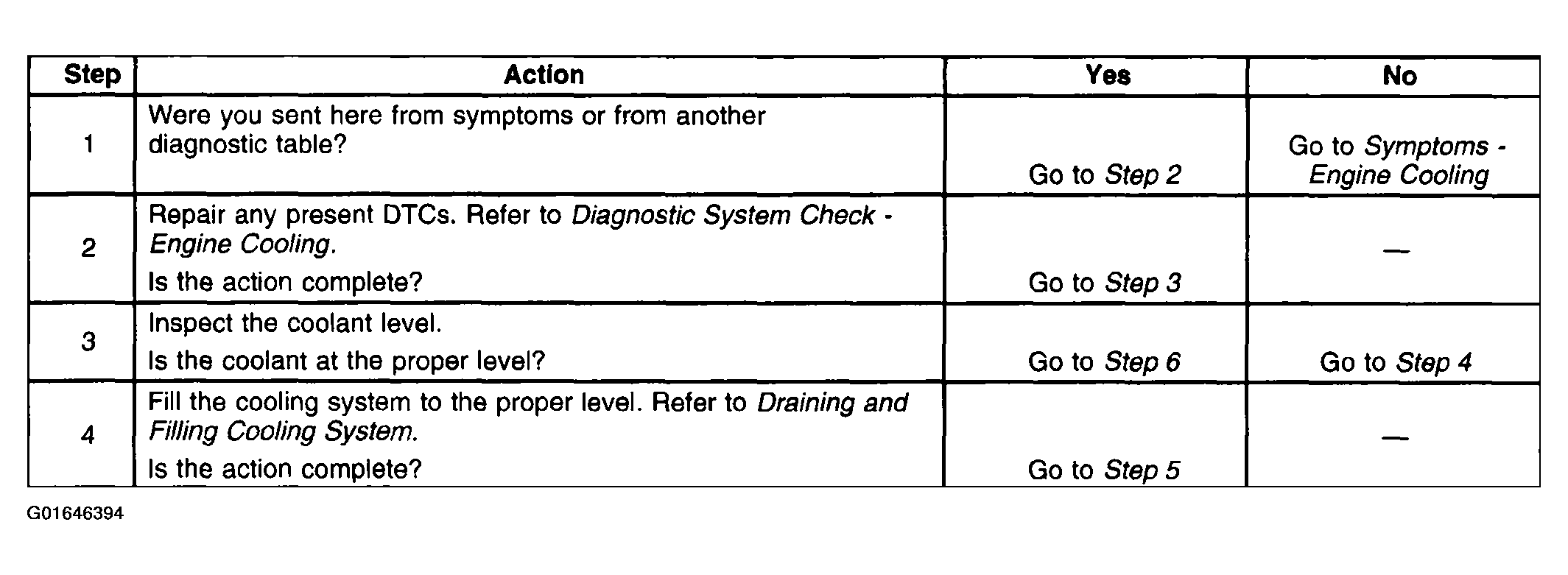

Fig 1: Loss Of Coolant Diagnostic Table (1 Of 4)
G01646394Courtesy of GENERAL MOTORS CORP.

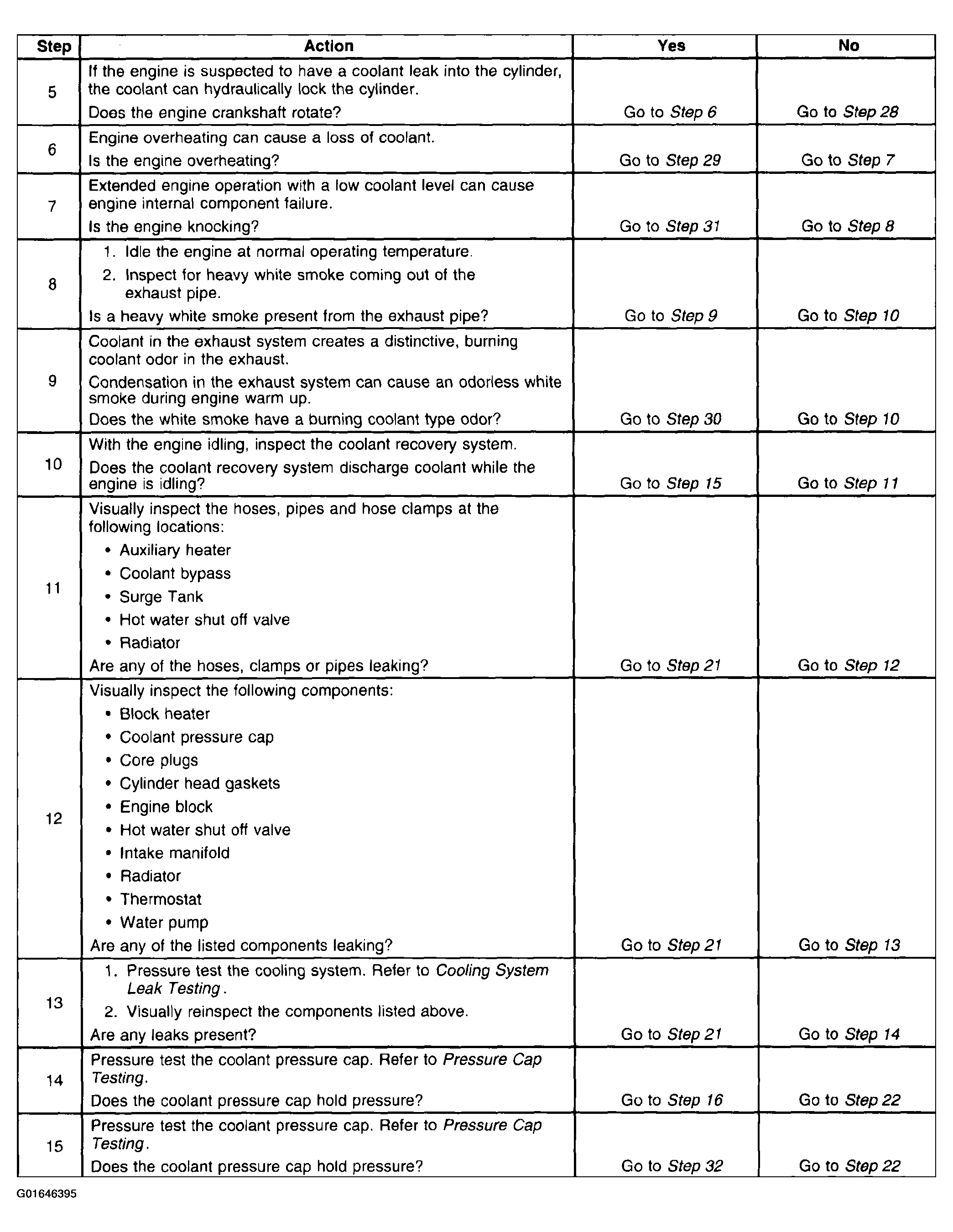

Fig 2: Loss Of Coolant Diagnostic Table (2 Of 4)
G01646395Courtesy of GENERAL MOTORS CORP.

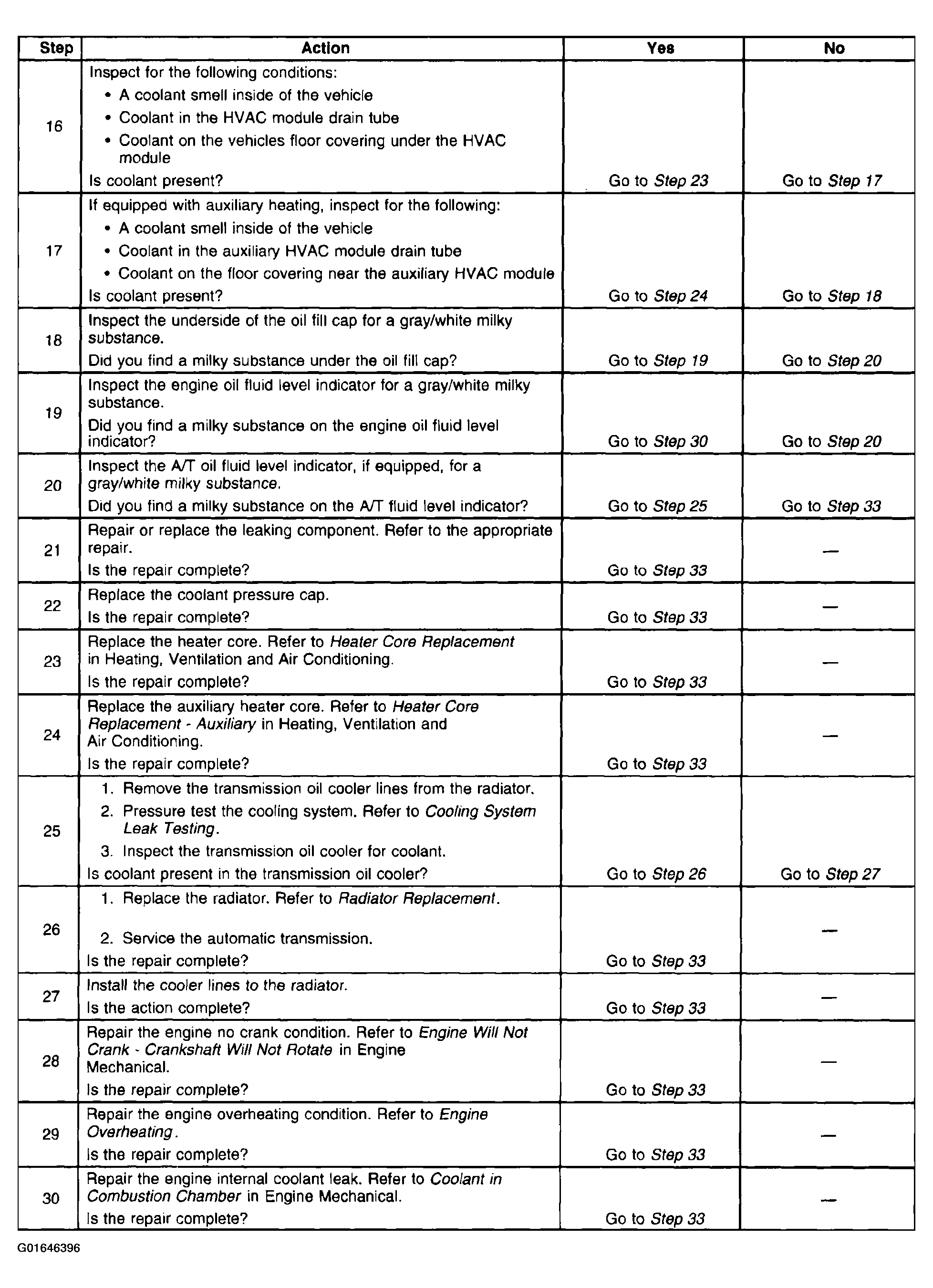

Fig 3: Loss Of Coolant Diagnostic Table (3 Of 4)
G01646396Courtesy of GENERAL MOTORS CORP.

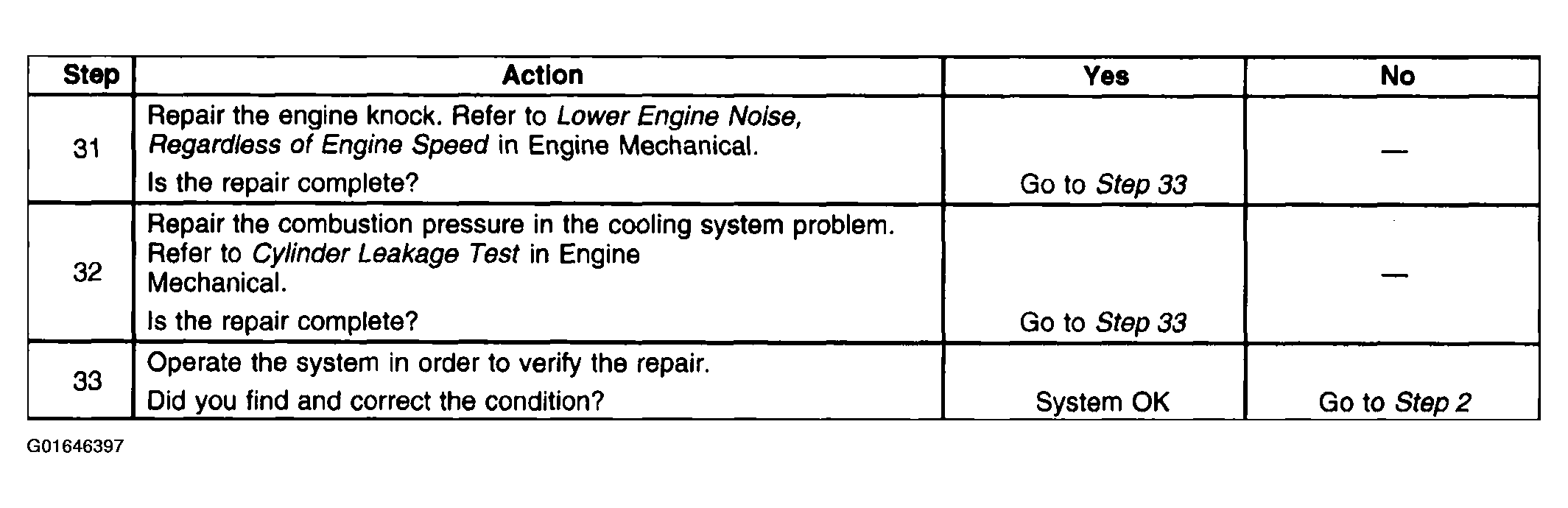

Fig 4: Loss Of Coolant Diagnostic Table (4 Of 4)
G01646397Courtesy of GENERAL MOTORS CORP.
