Home >> GMC >> 2003 >> Safari Van Cargo, AWD >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Diagnostic Information and Procedures >> Engine Overheating

Engine Overheating

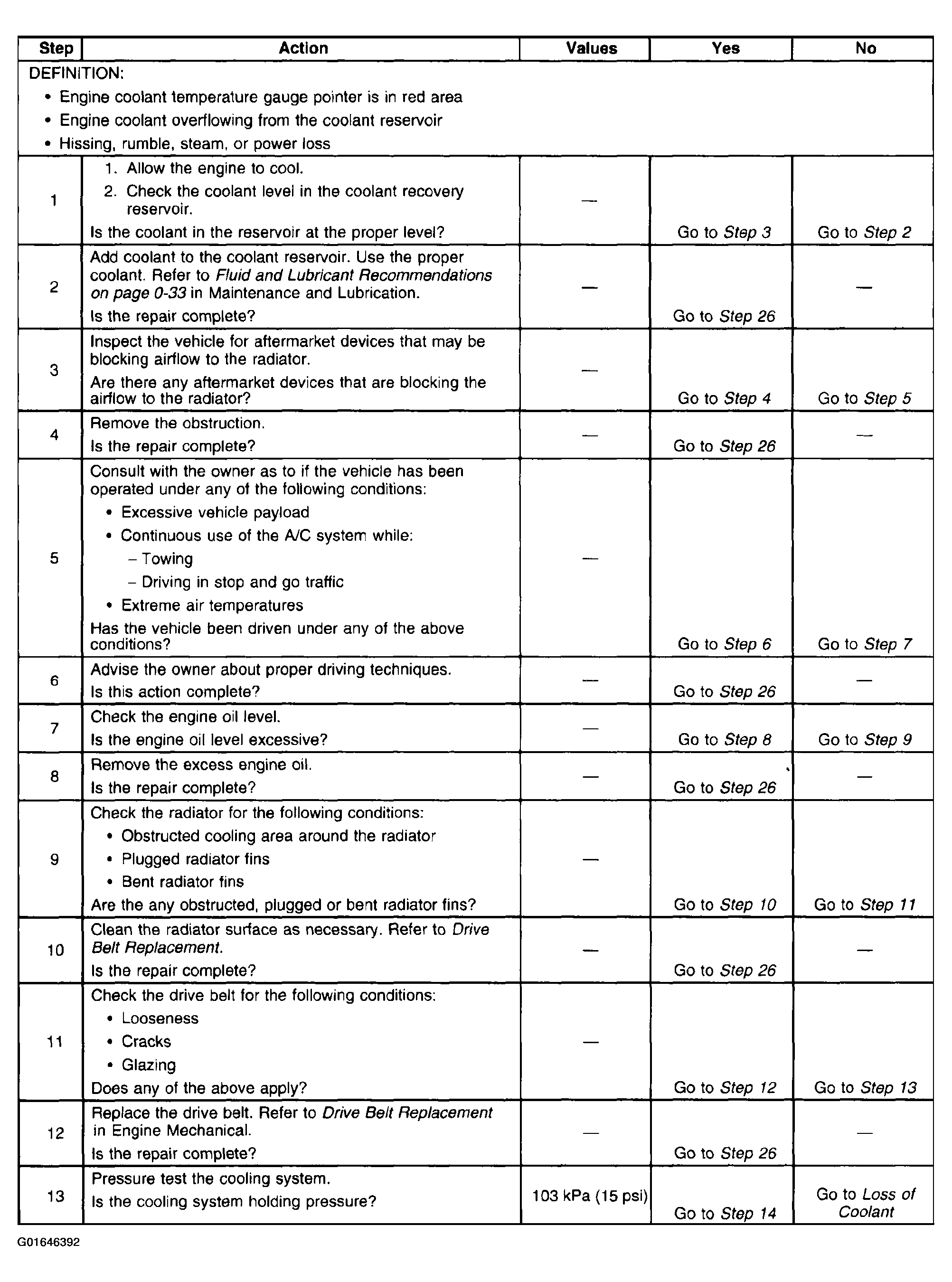

Fig 1: Engine Overheating Diagnostic Table (1 Of 2)

G01646392

Courtesy of GENERAL MOTORS CORP.

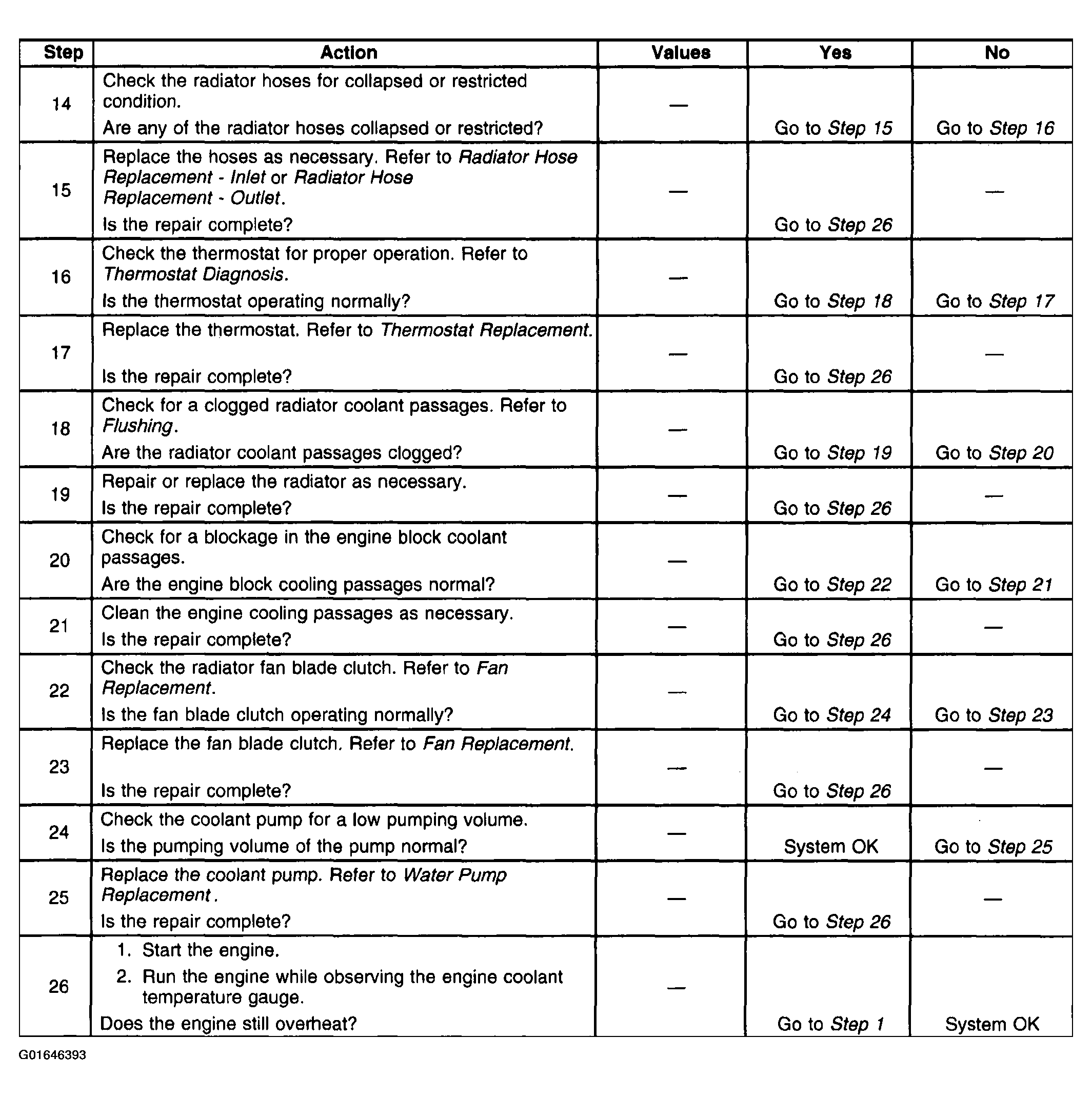

Fig 2: Engine Overheating Diagnostic Table (2 Of 2)

G01646393

Courtesy of GENERAL MOTORS CORP.
