Engine Fails To Reach Normal Operating Temperature

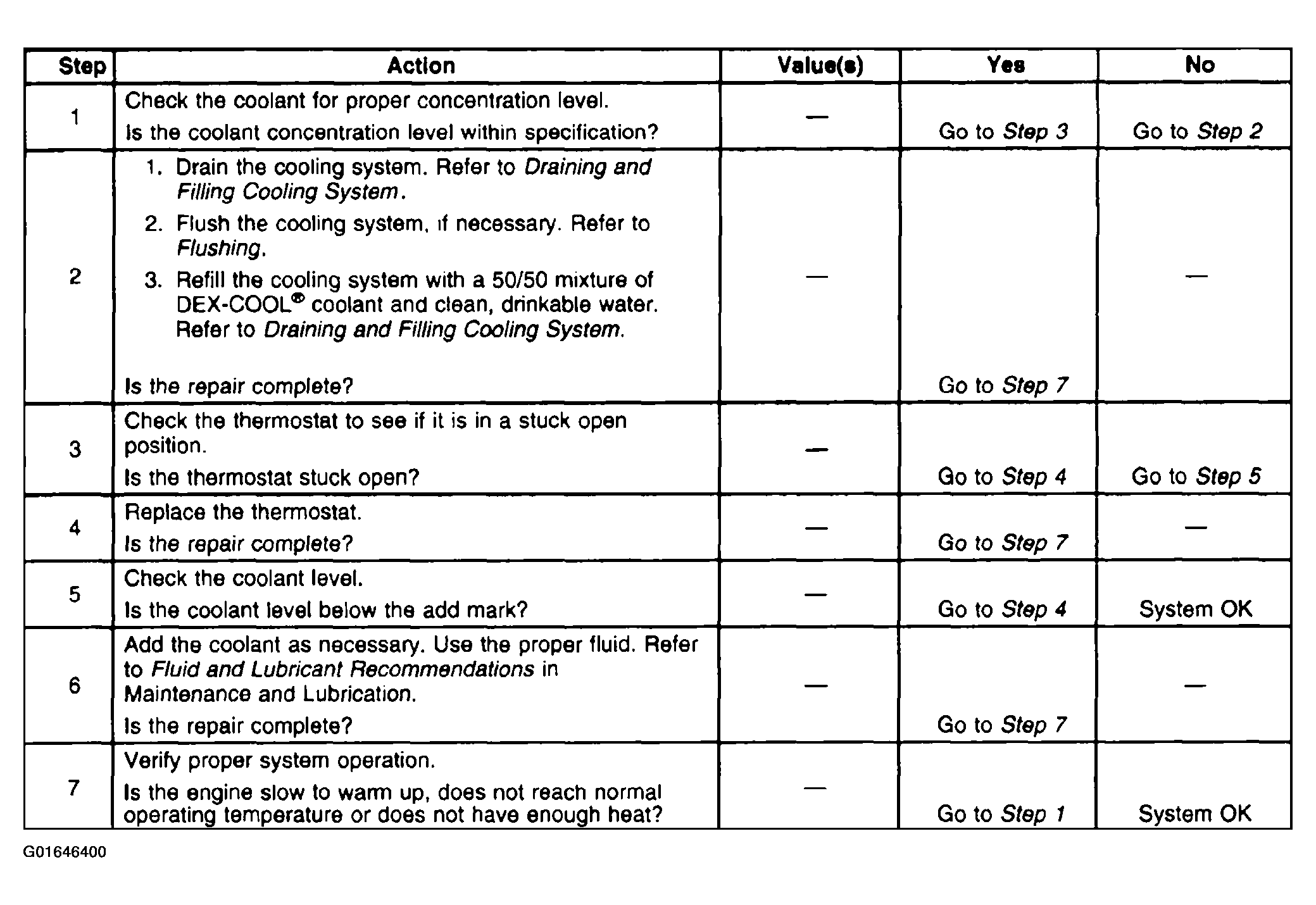

Fig 1: Engine Falls To Reach Normal Operating Temperature Diagnostic Table

G01646400

Courtesy of GENERAL MOTORS CORP.
