Removal Procedure

  1. Locate the relay. Refer to the Master Electrical Component List to locate the relay in the vehicle. See ELECTRICAL COMPONENT LOCATOR .
  2. Remove any fasteners which hold the relay in place.
  3. Remove any connector position assurance (CPA) devices or secondary locks.
    IMPORTANT: Use care when removing a relay in a wiring harness when the relay is secured by fasteners or tape.
  4. Separate the relay (1) from the wire harness connector (2).

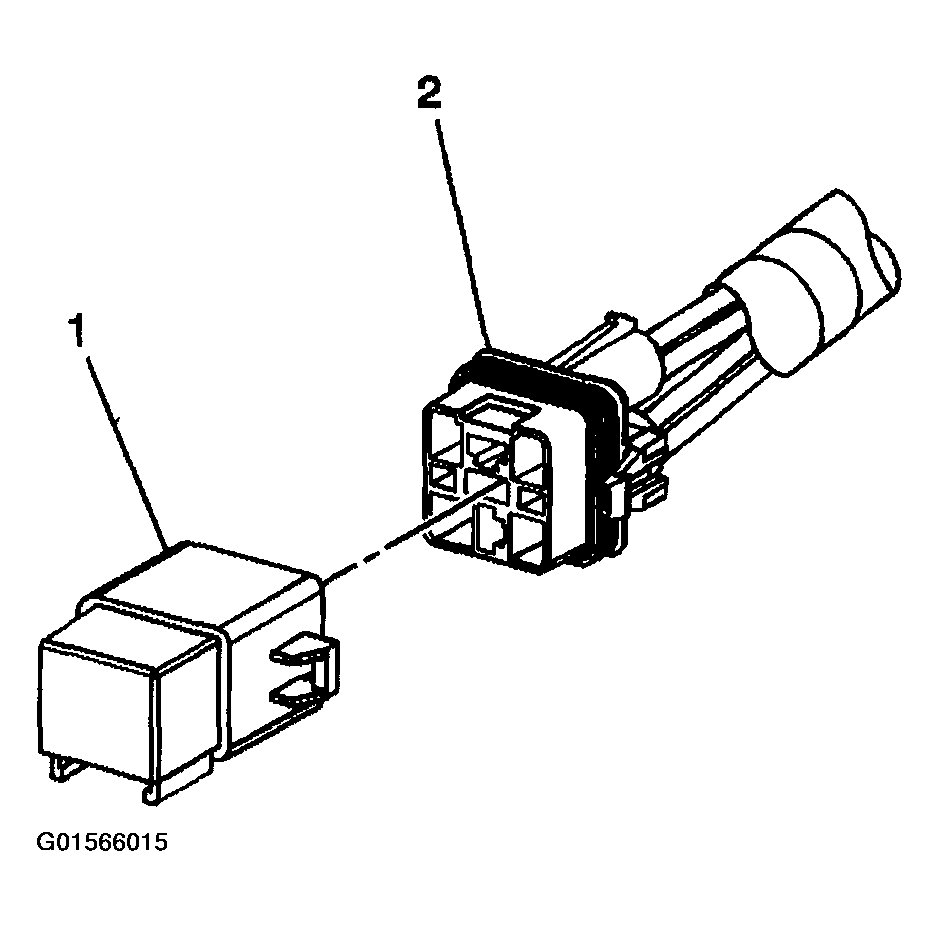

    Fig 1: Disconnecting Relay From Wire Harness Connector
    G01566015Courtesy of GENERAL MOTORS CORP.
