Installation Procedure

  1. Connect the relay (1) to the wire harness connector (2).
  2. Install any connector position assurance (CPA) devices or secondary locks.
  3. Install the relay using any fasteners or tape that originally held the relay in place.

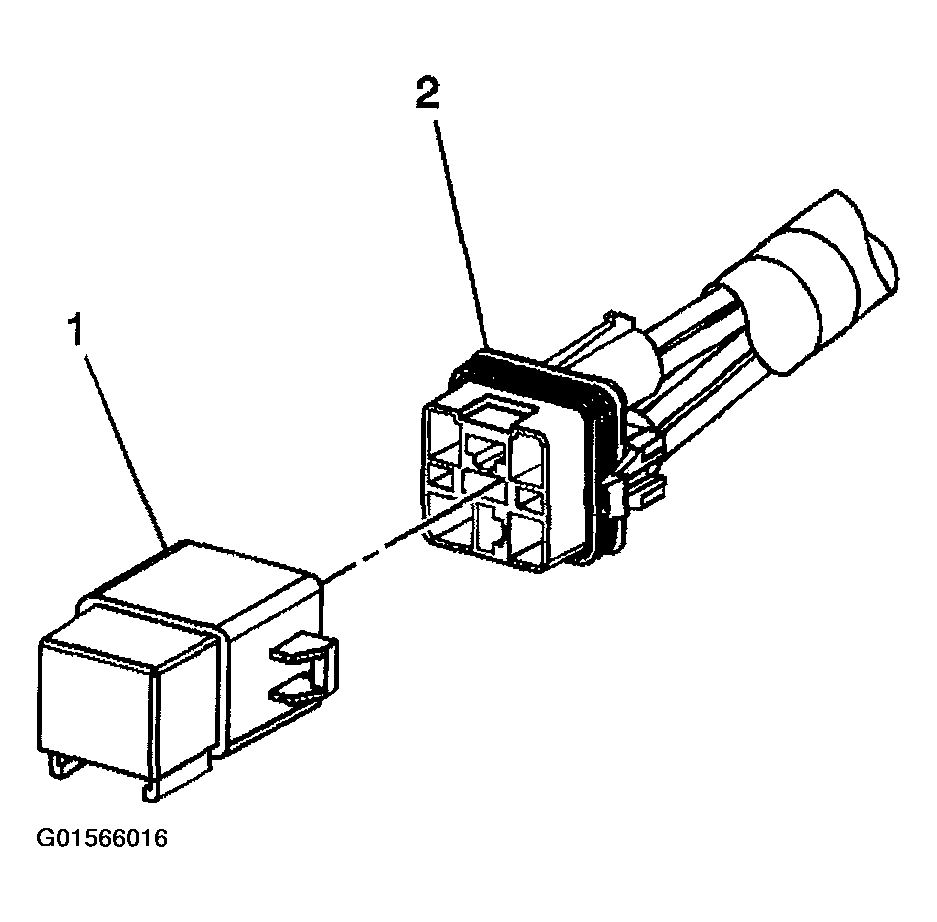

    Fig 1: Connecting Relay To Wire Harness Connector
    G01566016Courtesy of GENERAL MOTORS CORP.
