Utility/Van Zoning

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond to where they are located in the vehicle. The following table explains the numbering system.

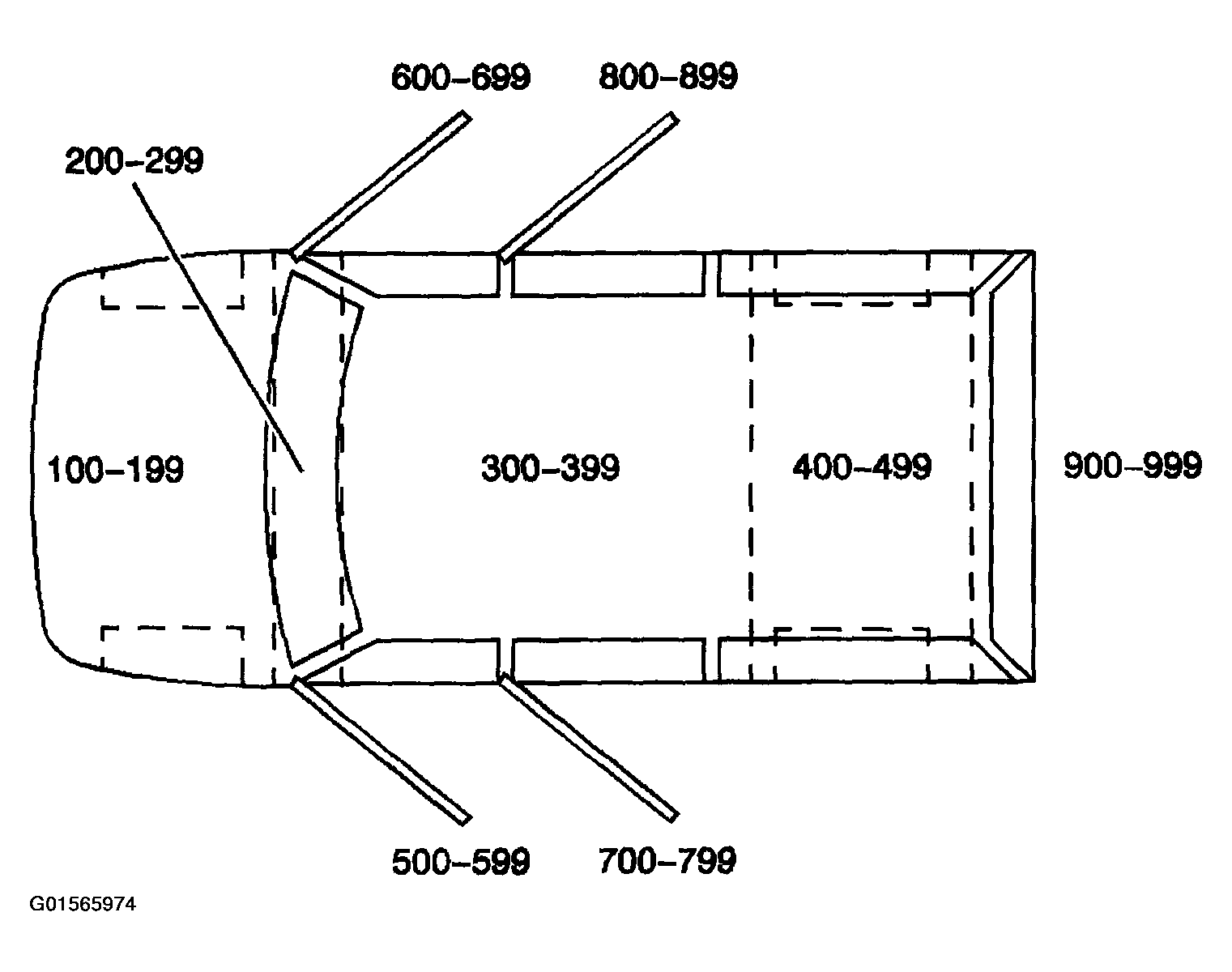

Fig 1: Identifying Numbers - Utility/Van Zoning

Courtesy of GENERAL MOTORS CORP.

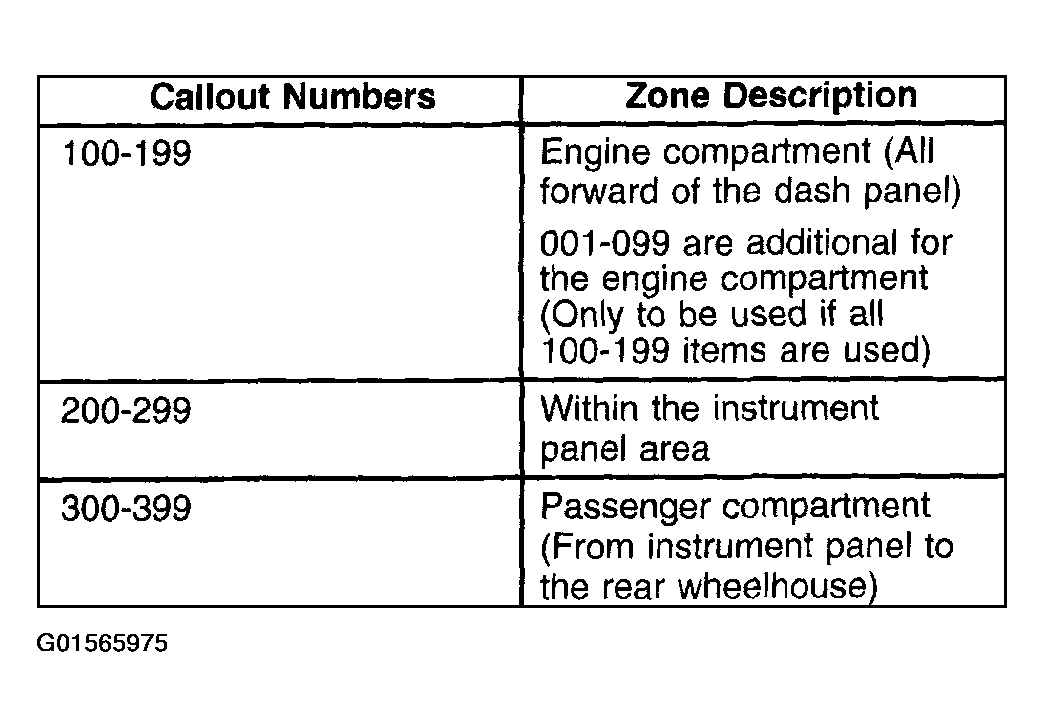

Fig 2: Utility/Van Zoning Callout Numbers Description (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

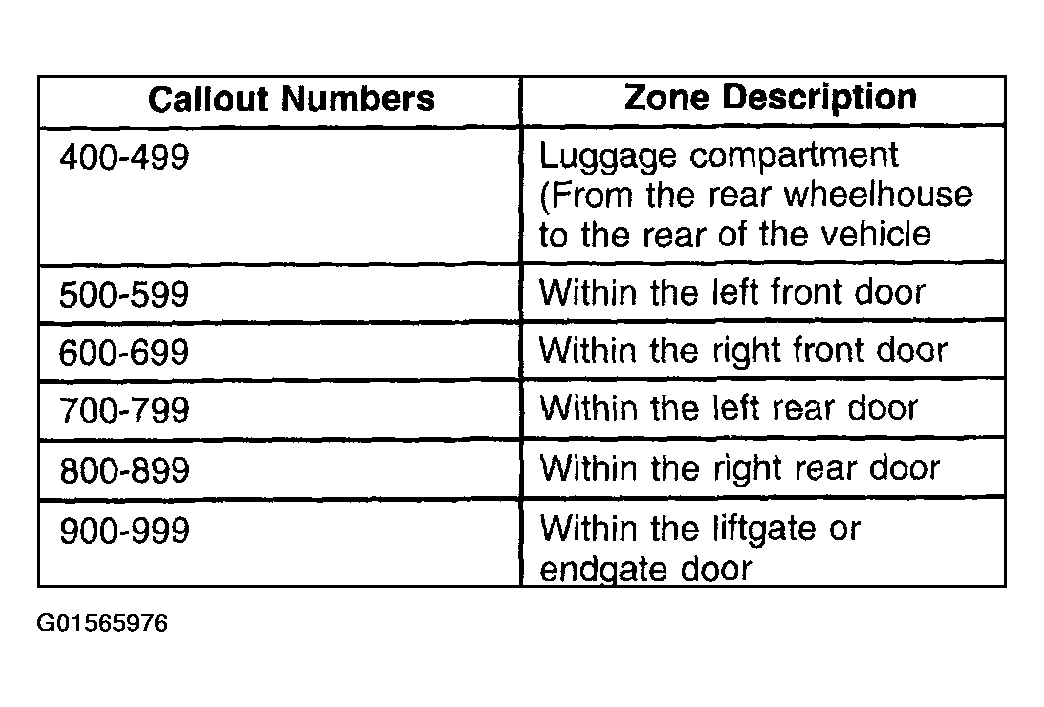

Fig 3: Utility/Van Zoning Callout Numbers Description (2 Of 2)
