Electrical Symbols

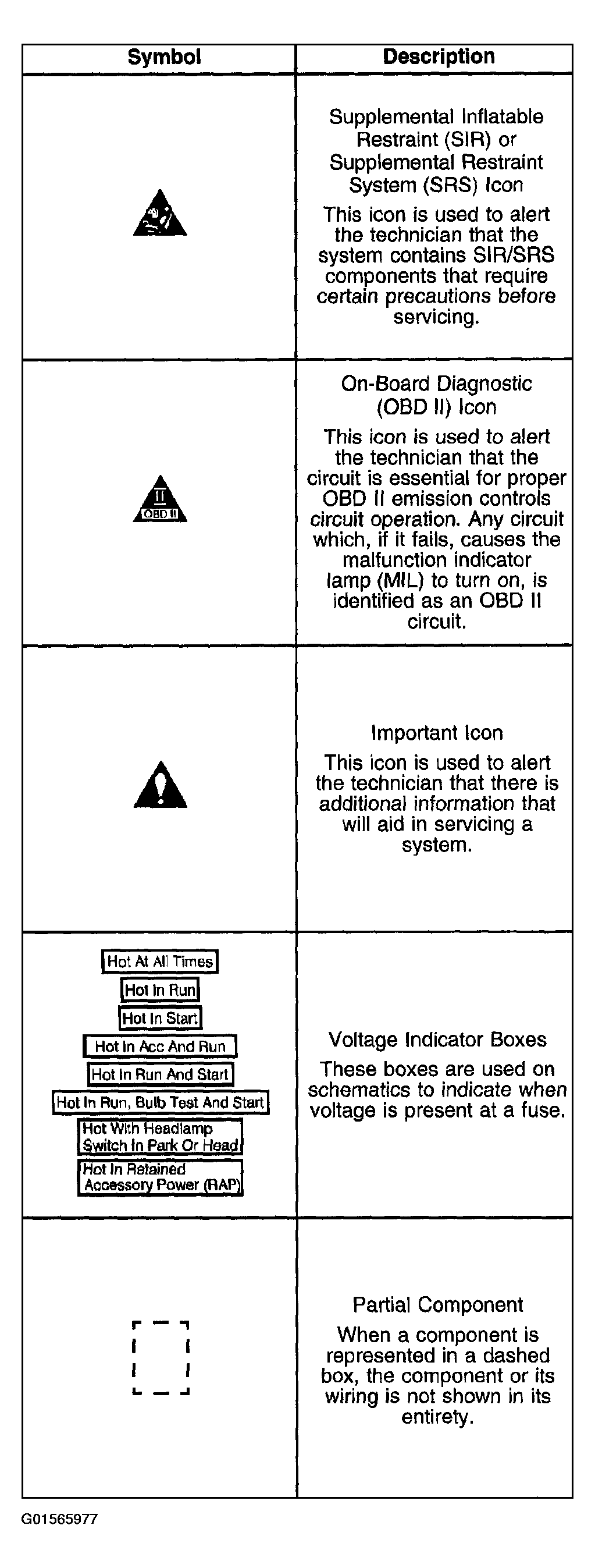

Fig 1: Electrical Symbols Description (1 Of 8)

G01565977

Courtesy of GENERAL MOTORS CORP.

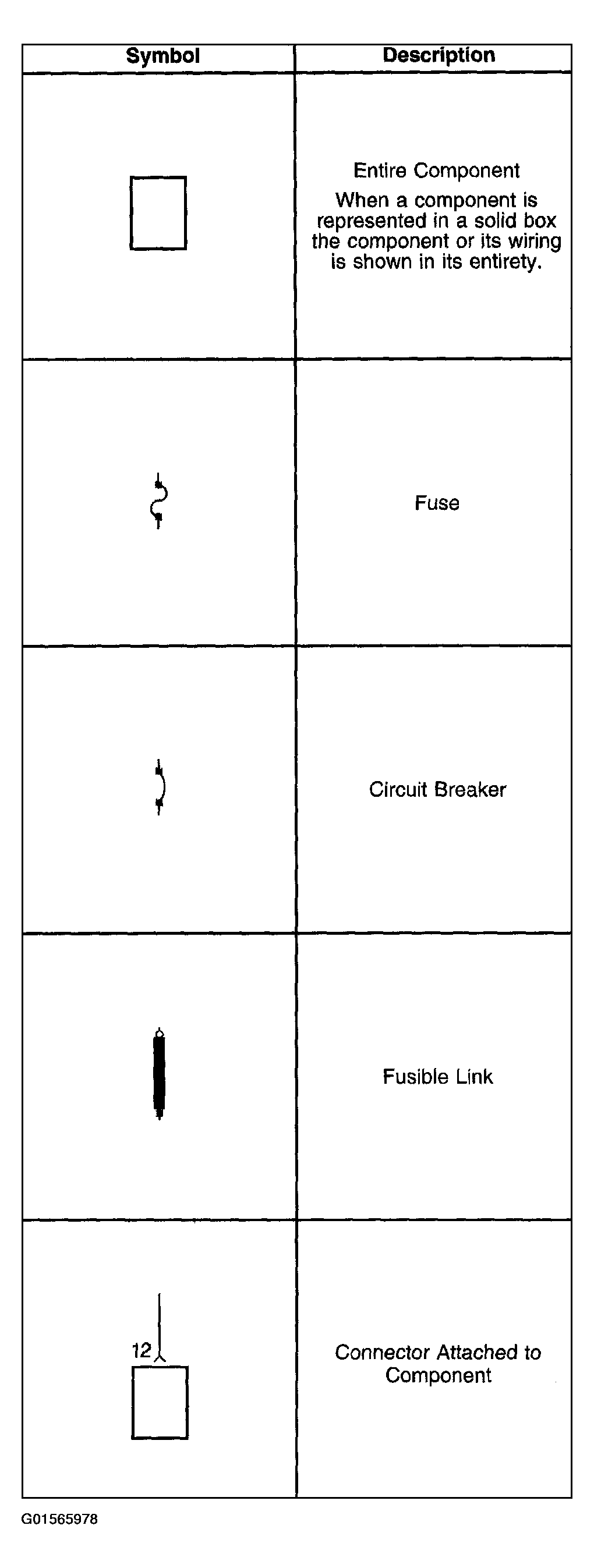

Fig 2: Electrical Symbols Description (2 Of 8)

G01565978

Courtesy of GENERAL MOTORS CORP.

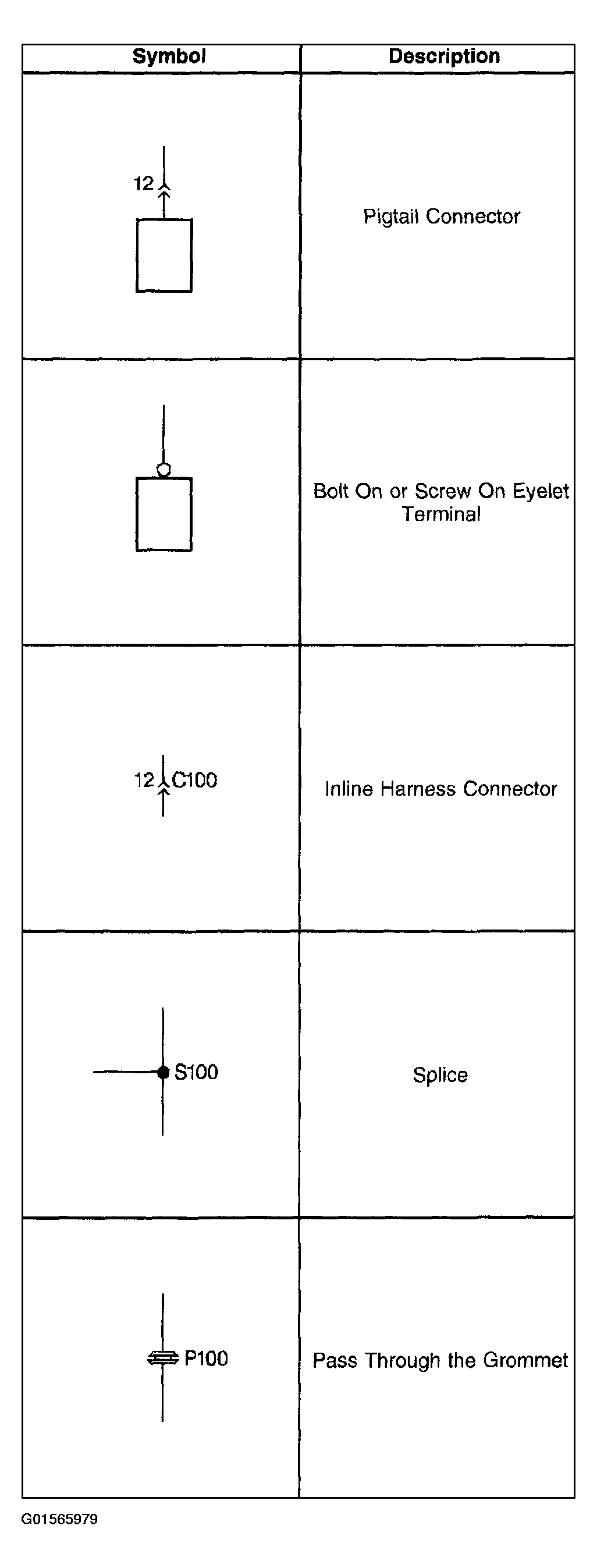

Fig 3: Electrical Symbols Description (3 Of 8)

G01565979

Courtesy of GENERAL MOTORS CORP.

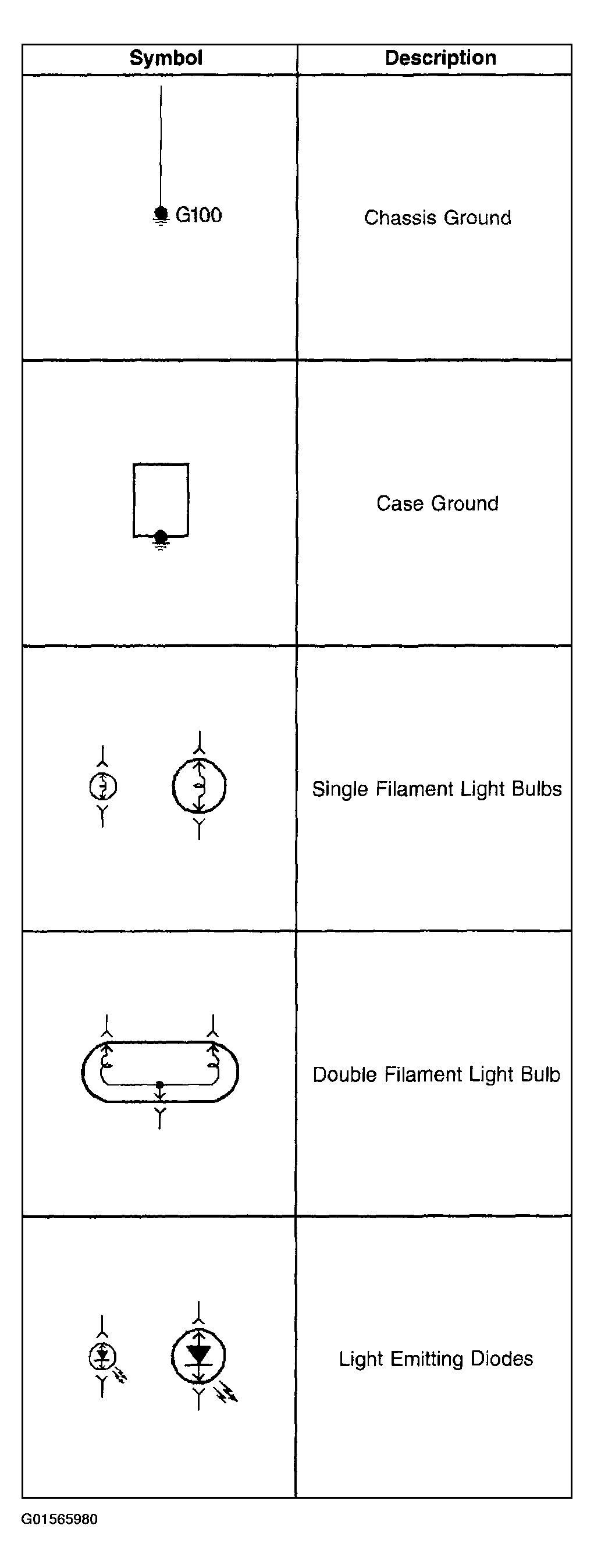

Fig 4: Electrical Symbols Description (4 Of 8)

G01565980

Courtesy of GENERAL MOTORS CORP.

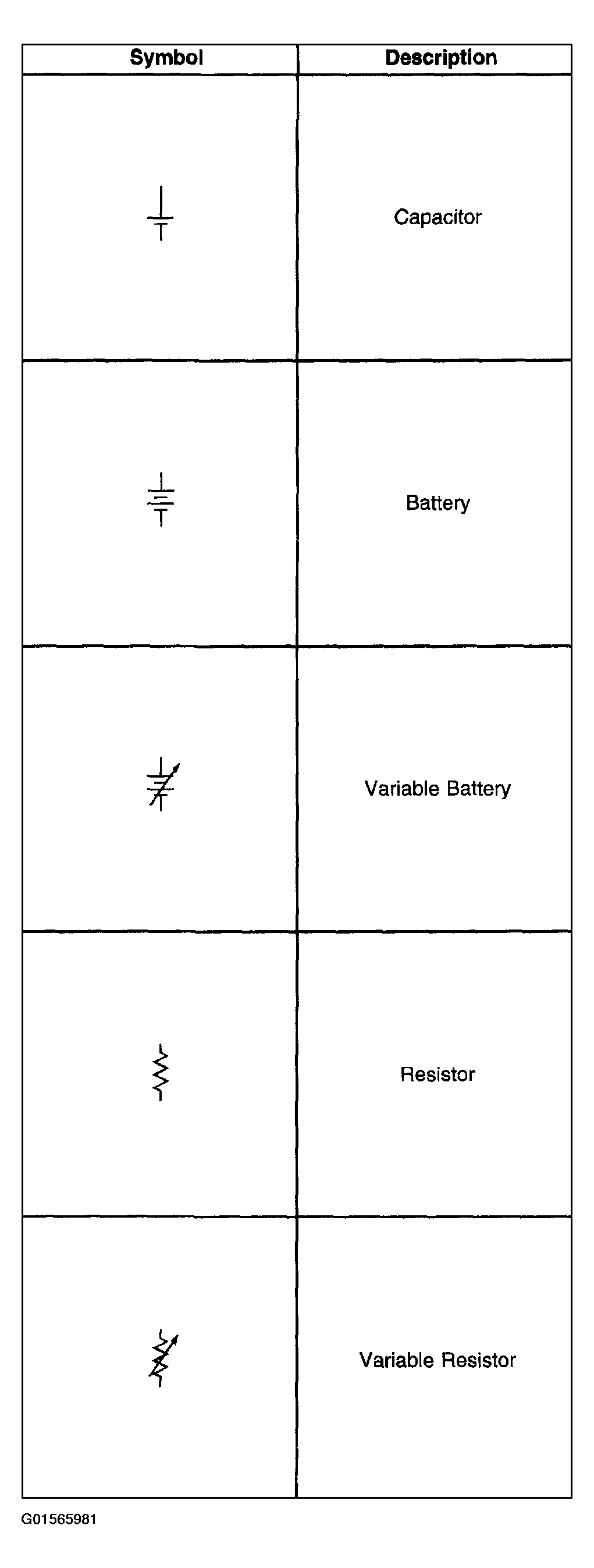

Fig 5: Electrical Symbols Description (5 Of 8)

G01565981

Courtesy of GENERAL MOTORS CORP.

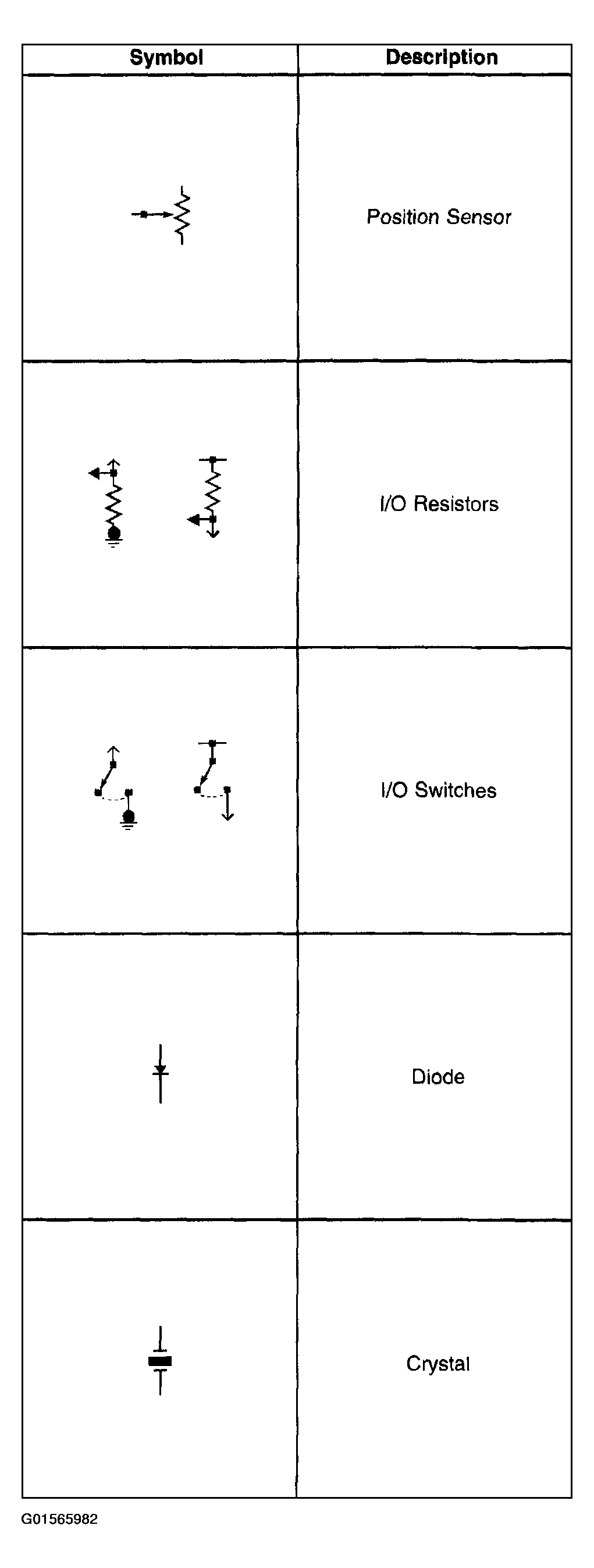

Fig 6: Electrical Symbols Description (6 Of 8)

G01565982

Courtesy of GENERAL MOTORS CORP.

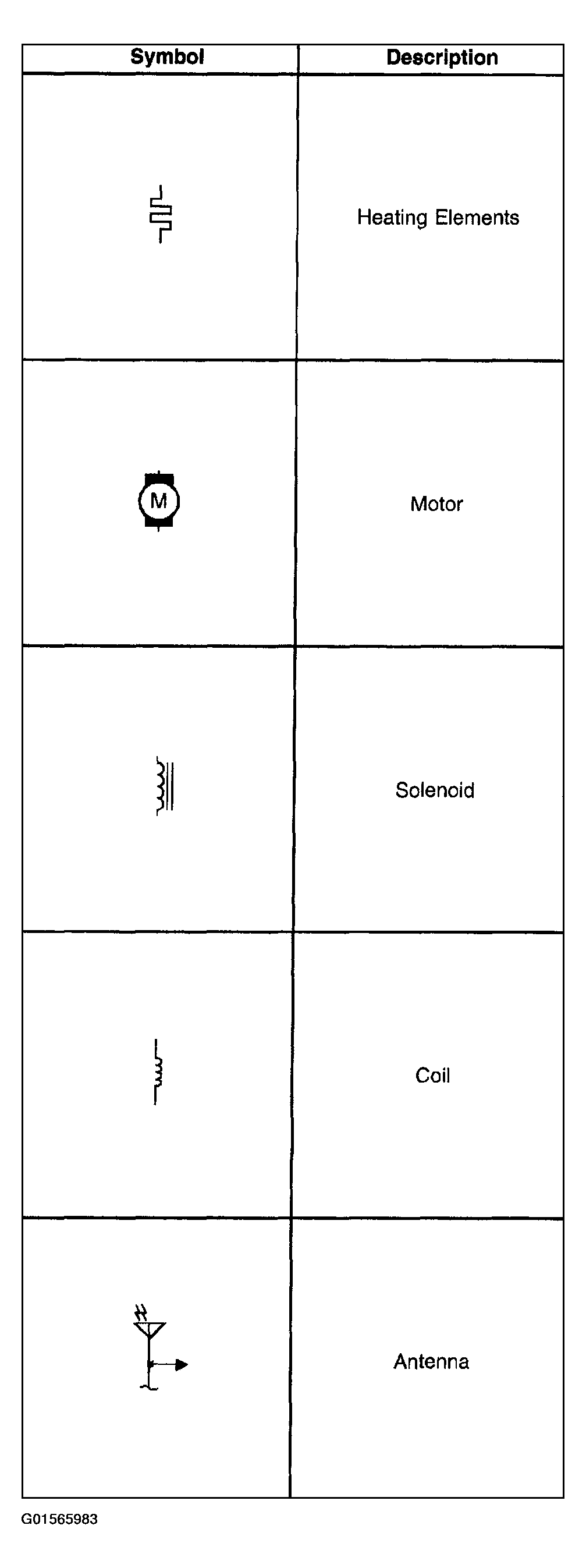

Fig 7: Electrical Symbols Description (7 Of 8)

G01565983

Courtesy of GENERAL MOTORS CORP.

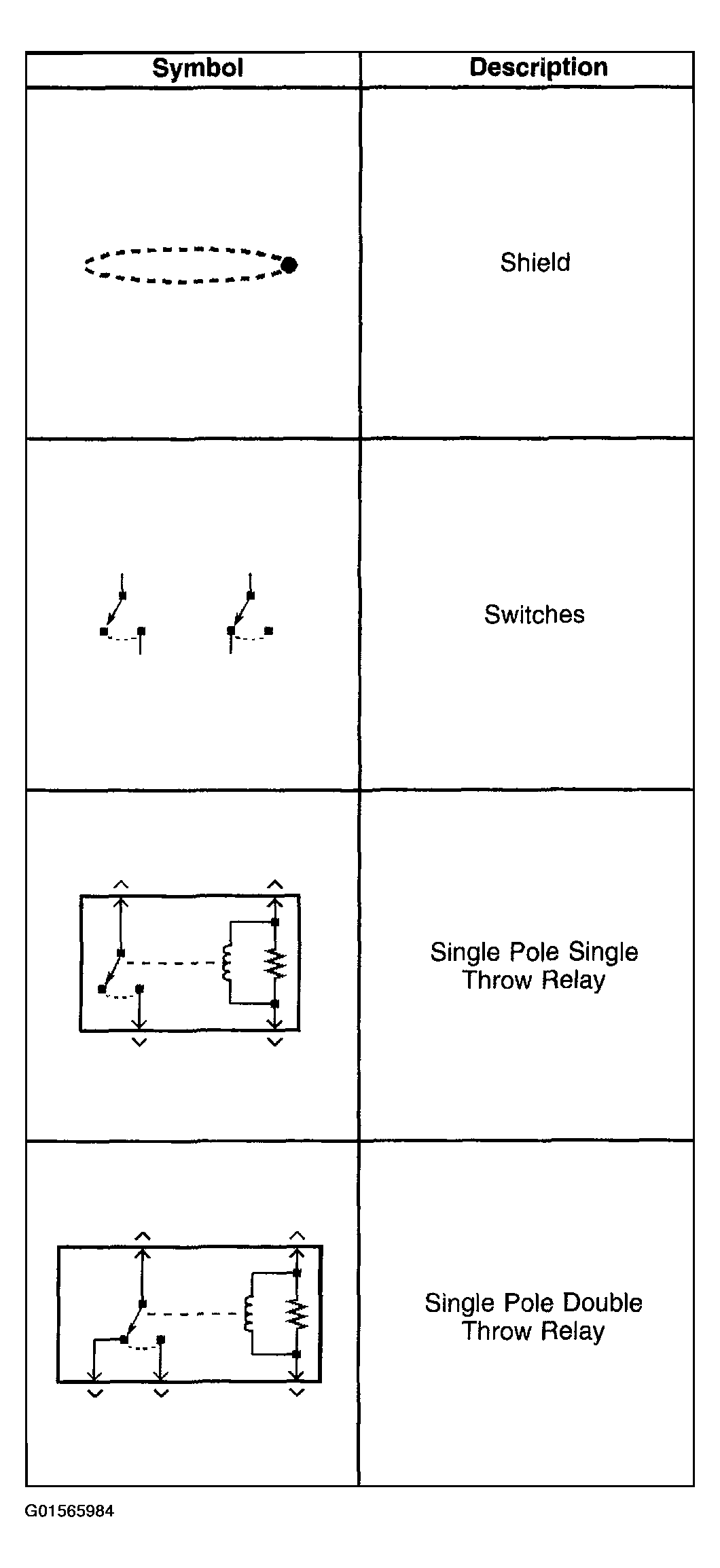

Fig 8: Electrical Symbols Description (8 Of 8)

G01565984

Courtesy of GENERAL MOTORS CORP.
