Starting and Charging Schematics

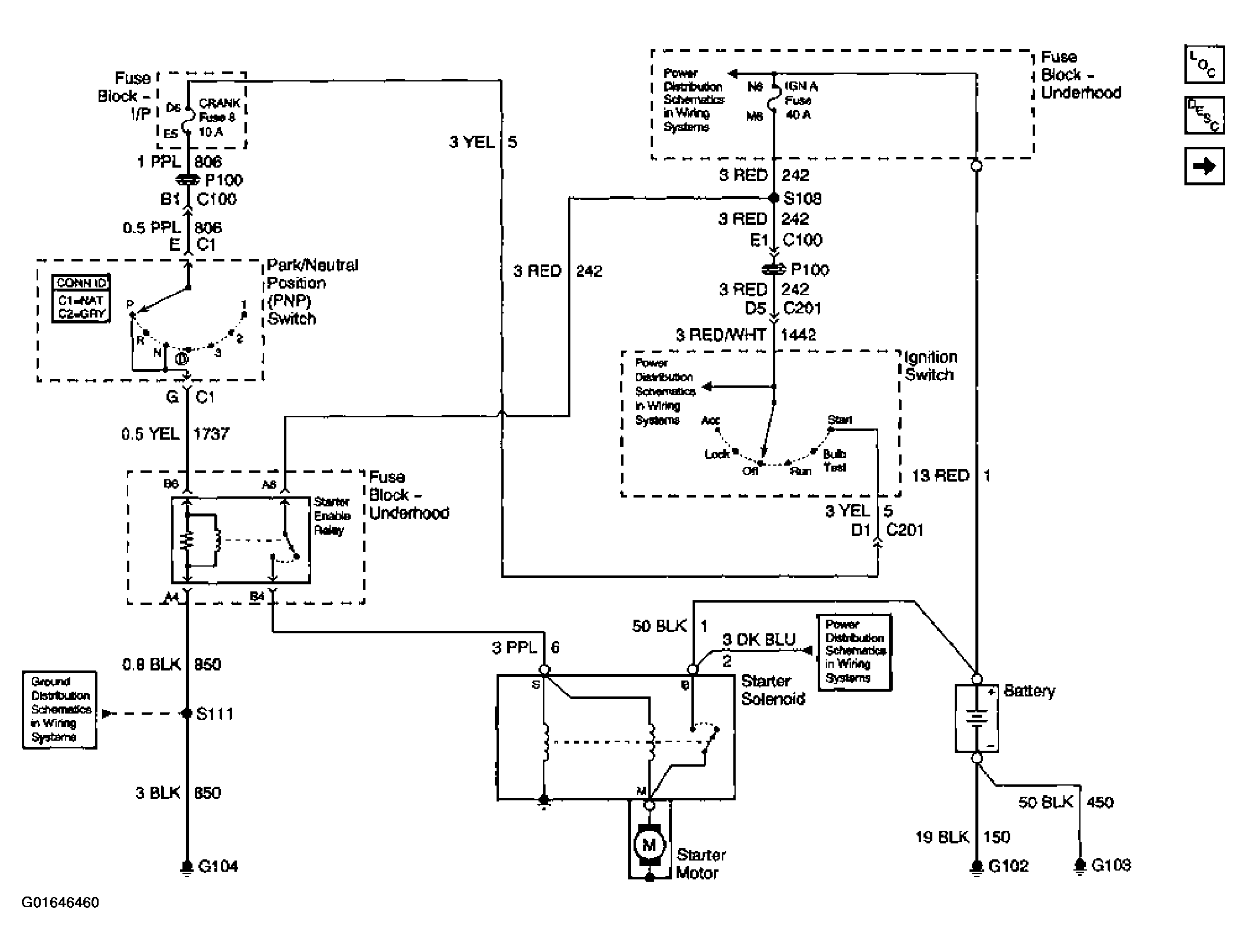

Fig 1: Starting Schematic

G01646460

Courtesy of GENERAL MOTORS CORP.

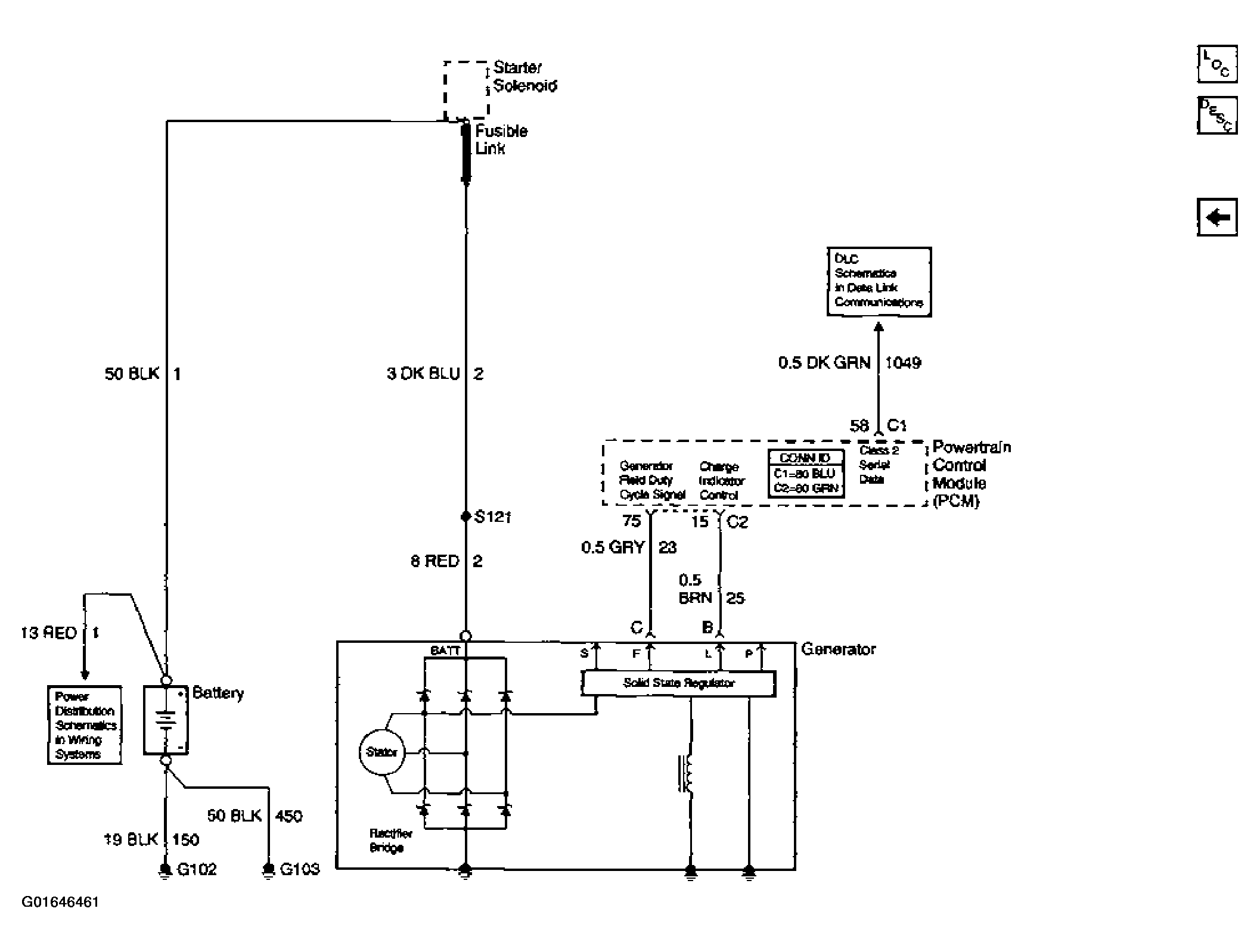

Fig 2: Charging Schematics

G01646461

Courtesy of GENERAL MOTORS CORP.
