Diagnostic Test

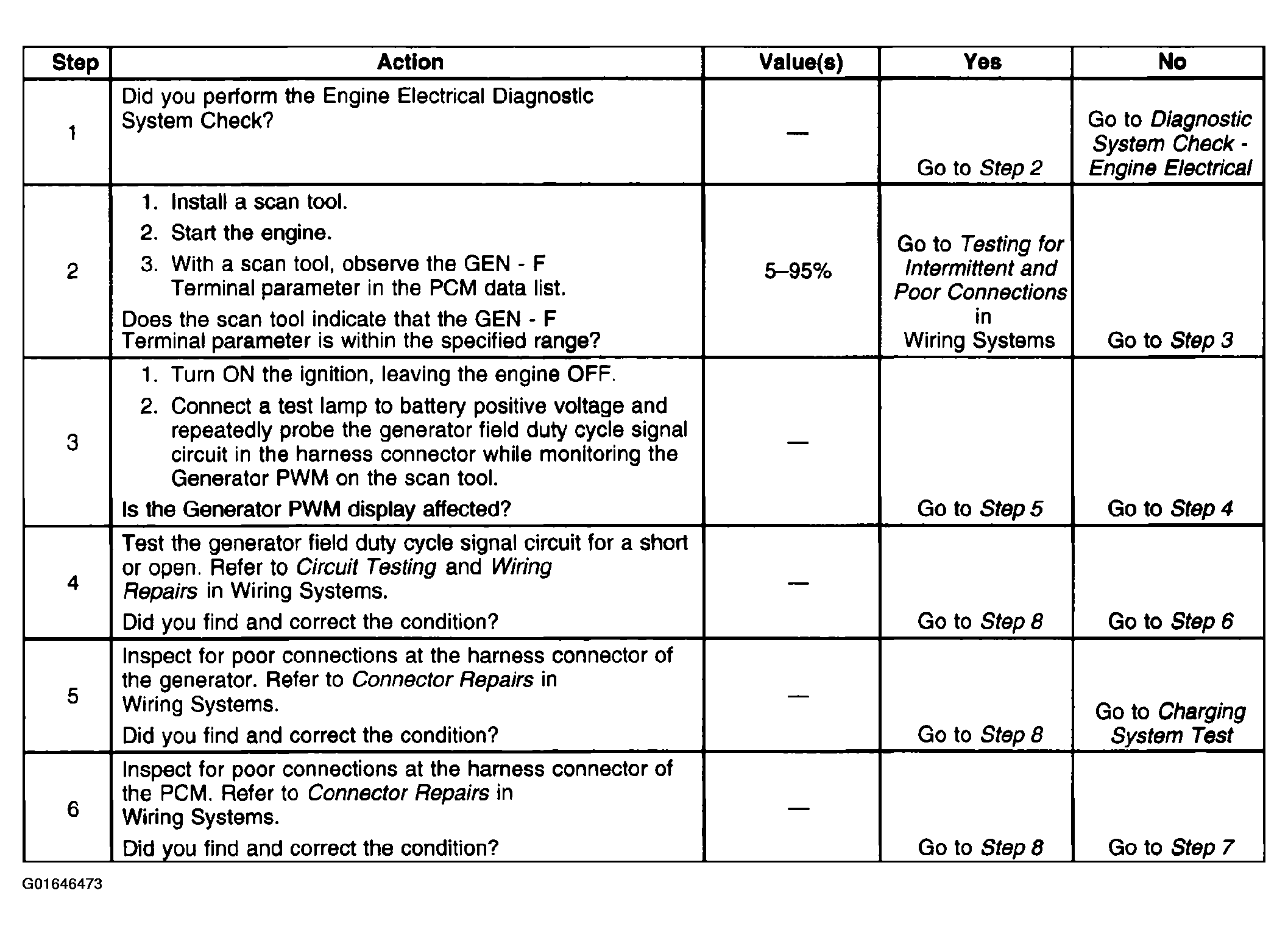

Fig 1: DTC P1638 Diagnostic Table (1 Of 2)

G01646473

Courtesy of GENERAL MOTORS CORP.

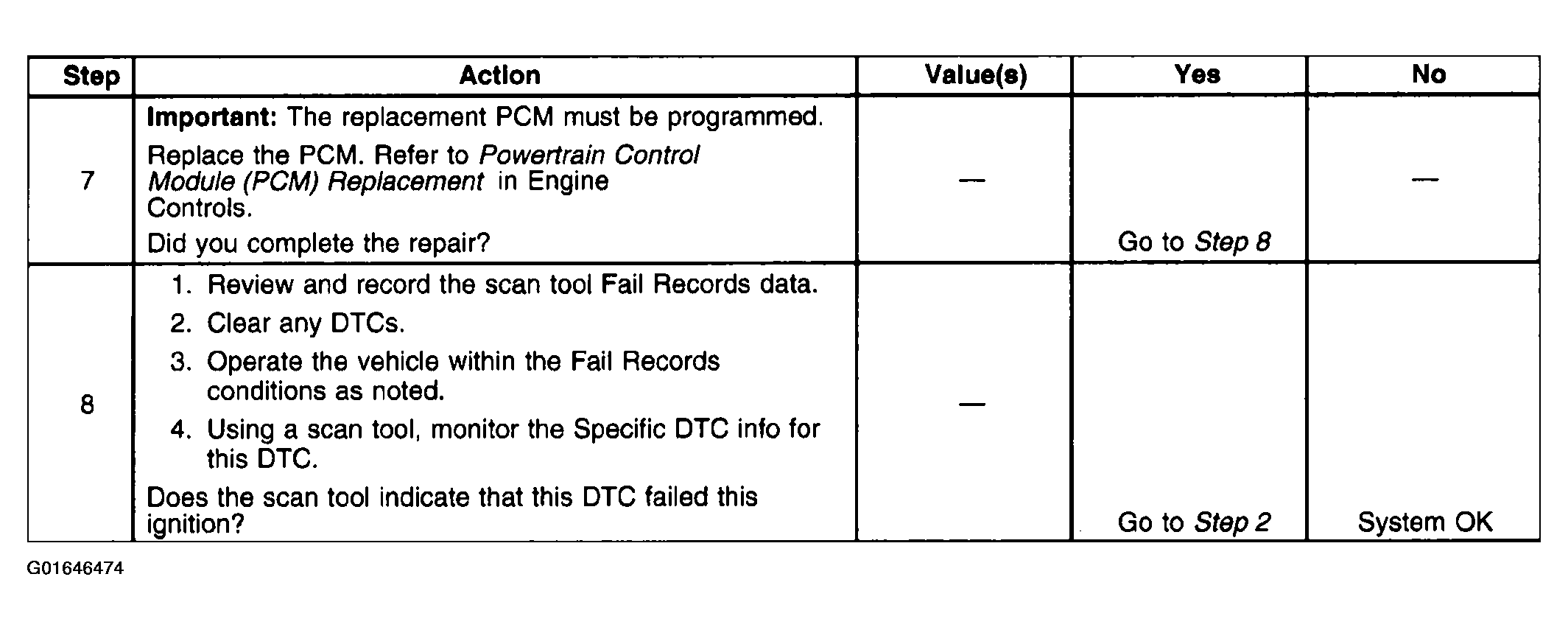

Fig 2: DTC P1638 Diagnostic Table (2 Of 2)

G01646474

Courtesy of GENERAL MOTORS CORP.
