Horns Schematic Icons

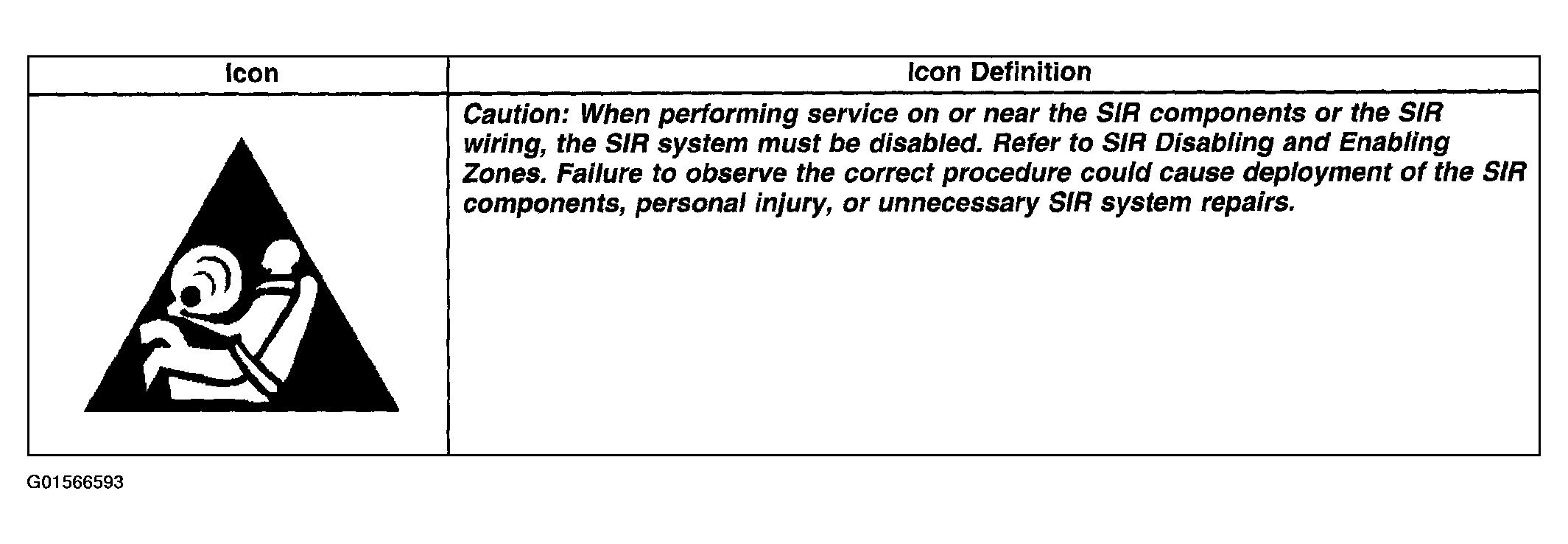

Fig 1: Identifying Horns Schematic Icons

G01566593

Courtesy of GENERAL MOTORS CORP.

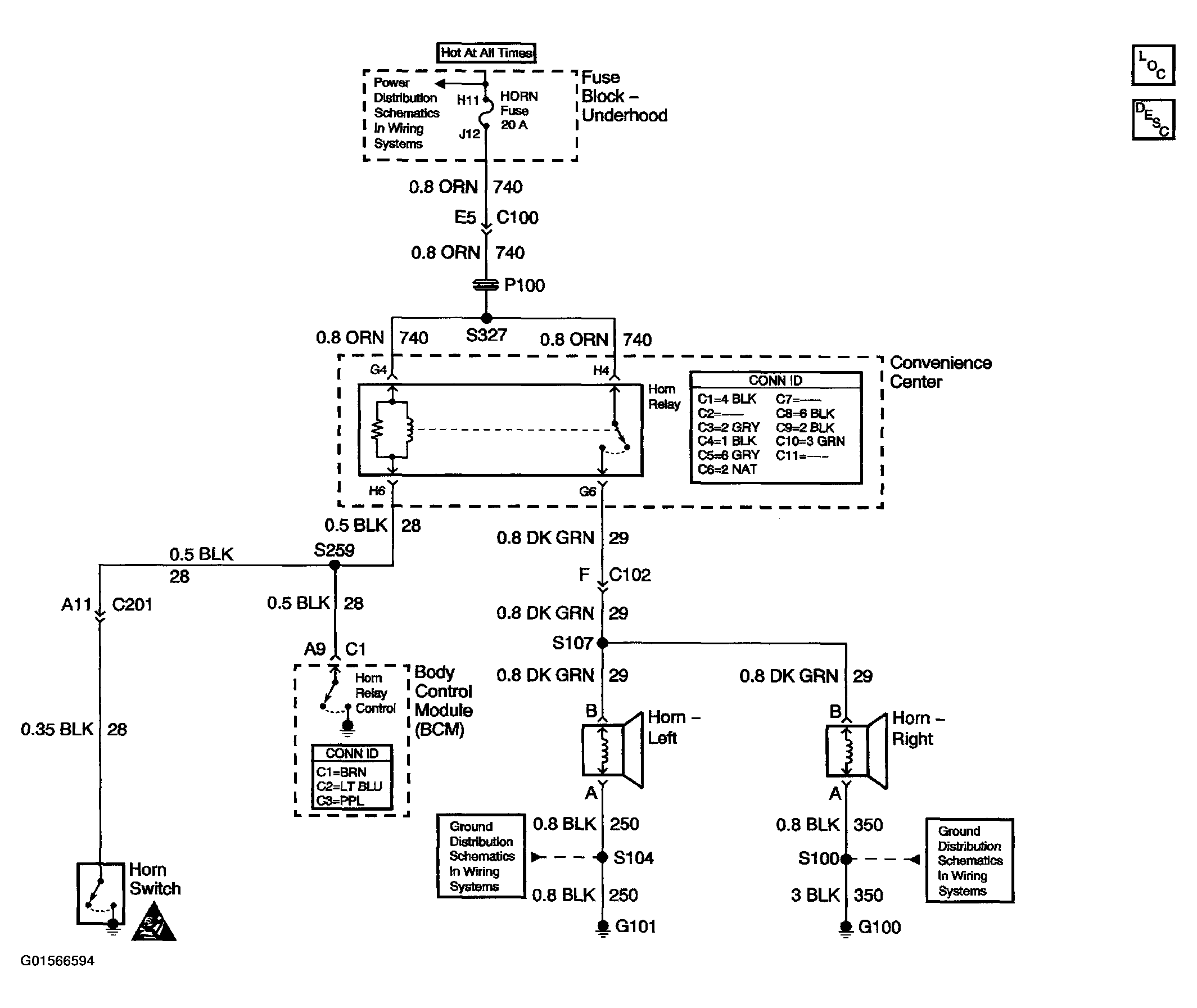

Fig 2: Horns Schematic Diagram

G01566594

Courtesy of GENERAL MOTORS CORP.
