Removal Procedure

  1. Remove the grille from the vehicle. Refer to GRILLE REPLACEMENT in Exterior Trim.
  2. Disconnect the horn electrical connector.
  3. Remove the horn bolt.
  4. Remove the horn from the vehicle.

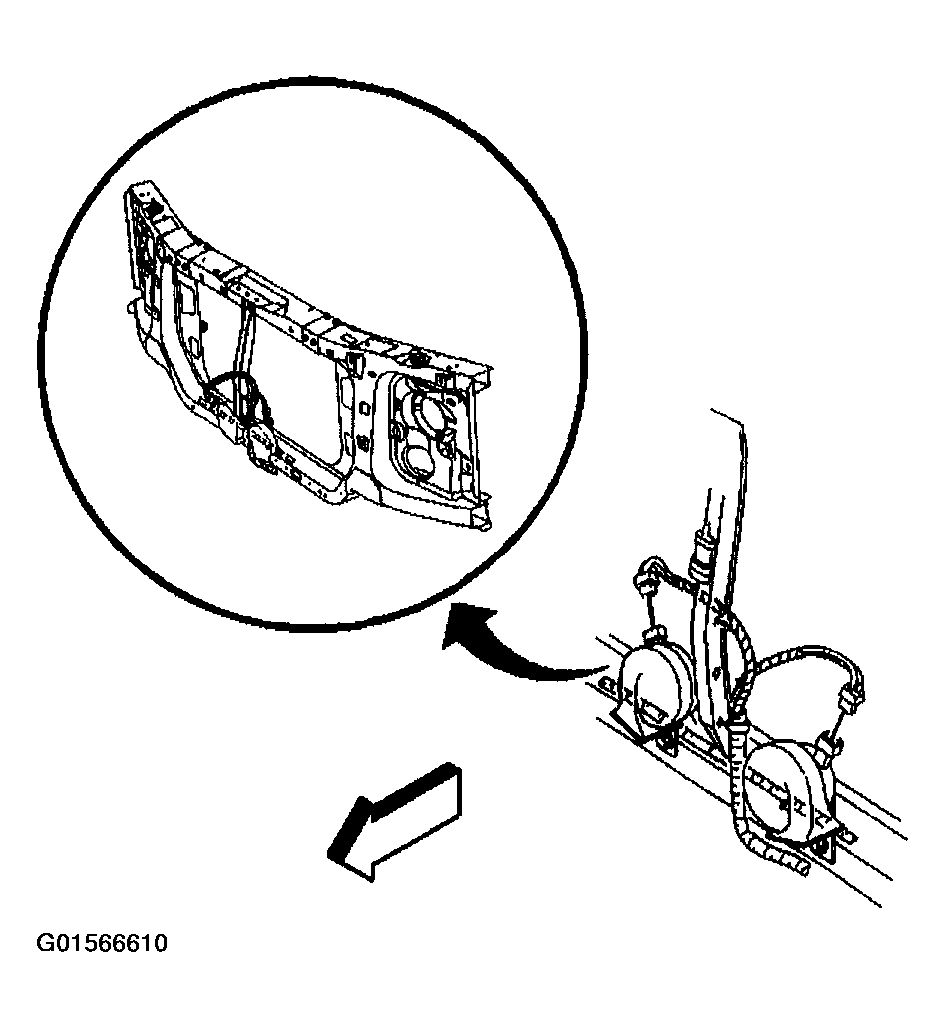

    Fig 1: Disconnecting Horn Electrical Connectors
    G01566610Courtesy of GENERAL MOTORS CORP.
