Diagnostic System Check - Horns: Overview

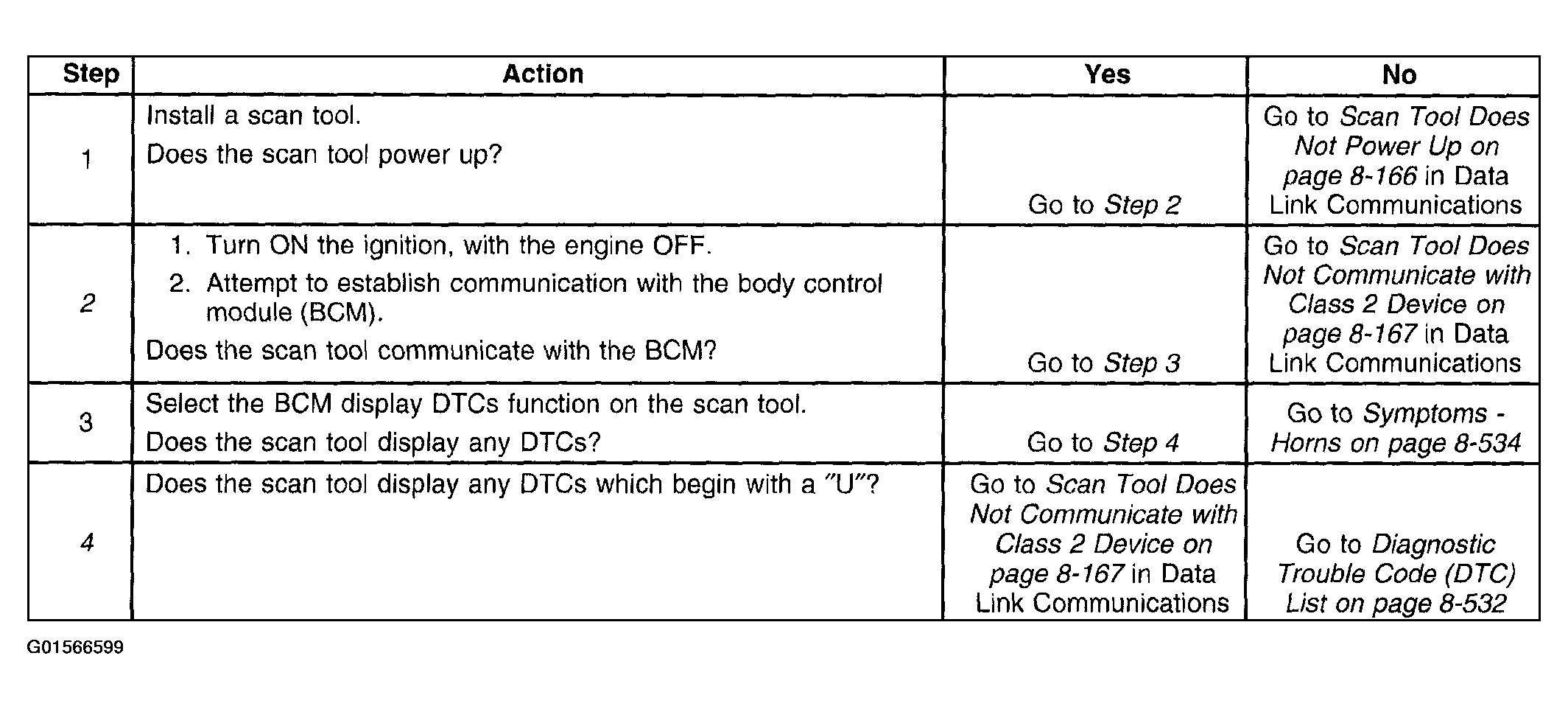

Fig 1: Diagnostic System Check - Horns

G01566599

Courtesy of GENERAL MOTORS CORP.
