Horns Connector End Views

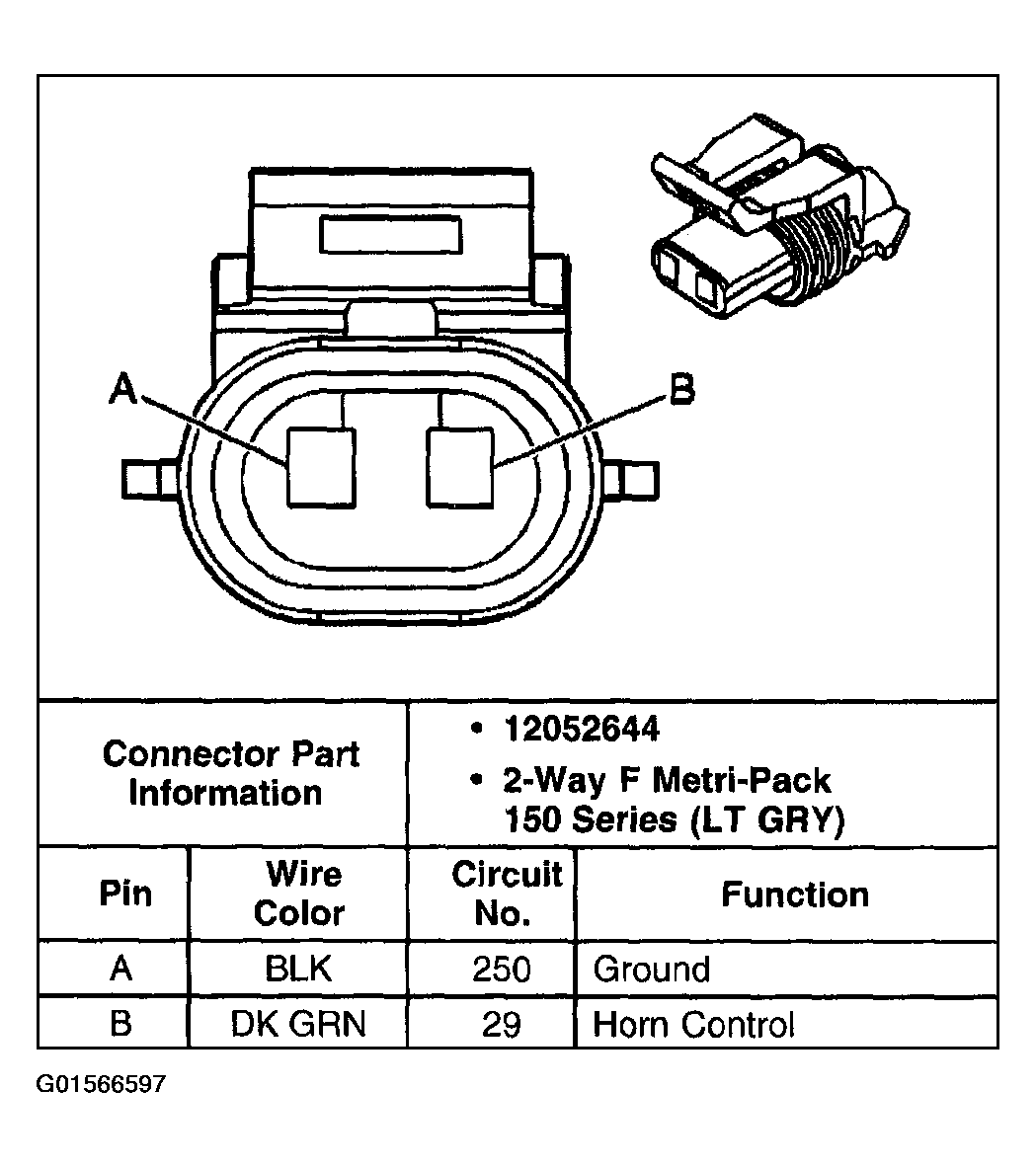

Fig 1: Identifying Left Horn Connector

G01566597

Courtesy of GENERAL MOTORS CORP.

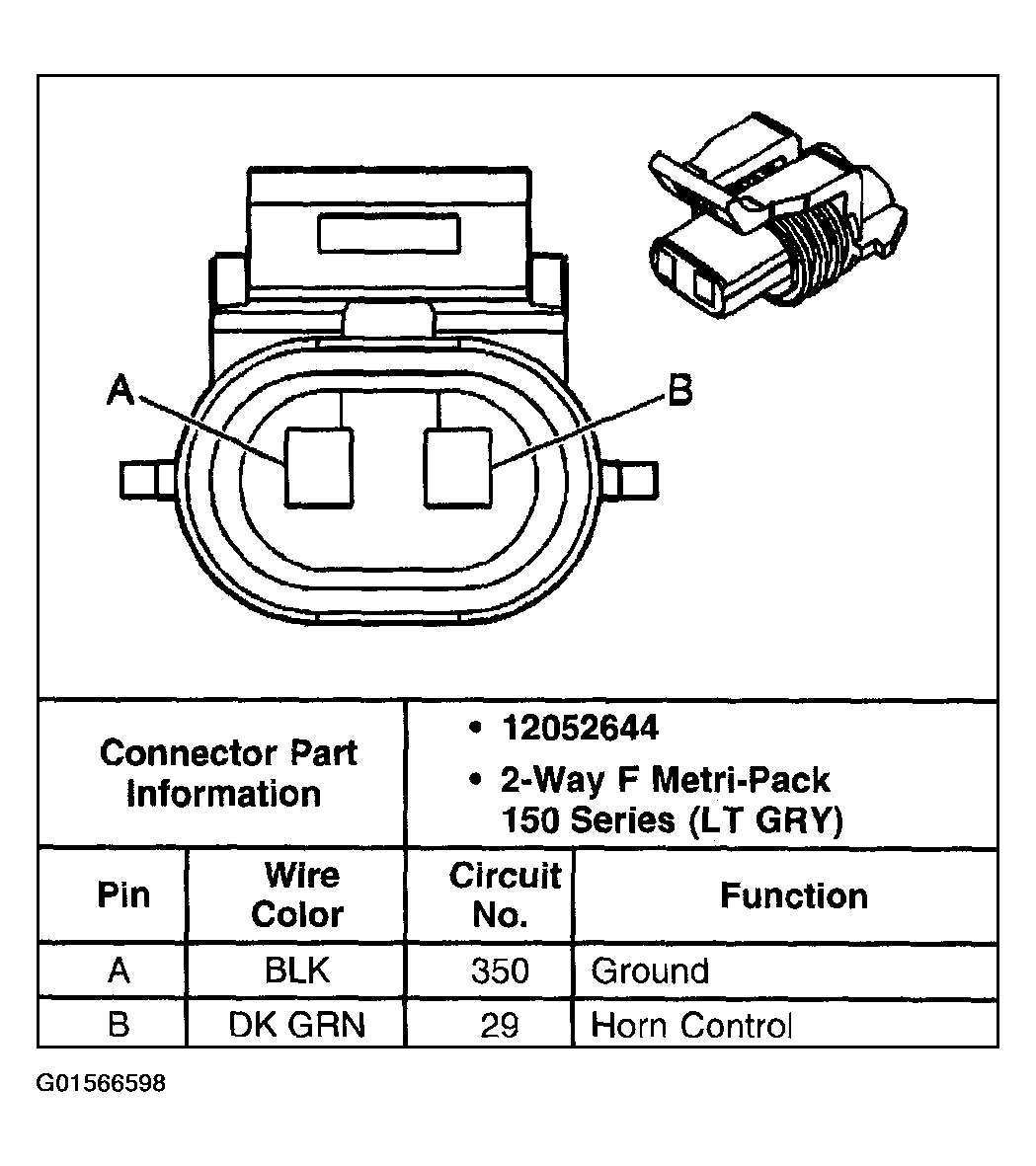

Fig 2: Identifying Right Horn Connector

G01566598

Courtesy of GENERAL MOTORS CORP.
