Ambient Air Temperature Sensor Resistance

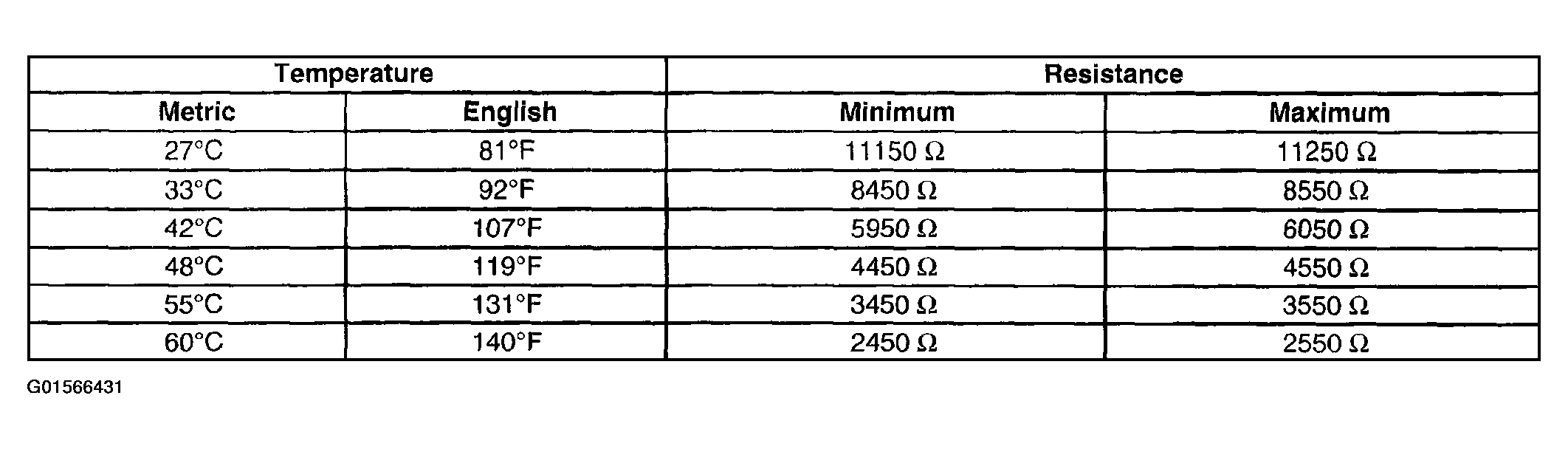

Fig 1: Ambient Air Temperature Sensor Resistance

G01566431

Courtesy of GENERAL MOTORS CORP.
